MAINTENANCE
CLIPPER 86038240
4-4
Only qualified maintenance personnel are to perform the following repairs.
Seul le personnel d'entretien qualifié peut effectuer des réparations.
86249420
PRV NO. 62759
86227350
PRV NO. 05016

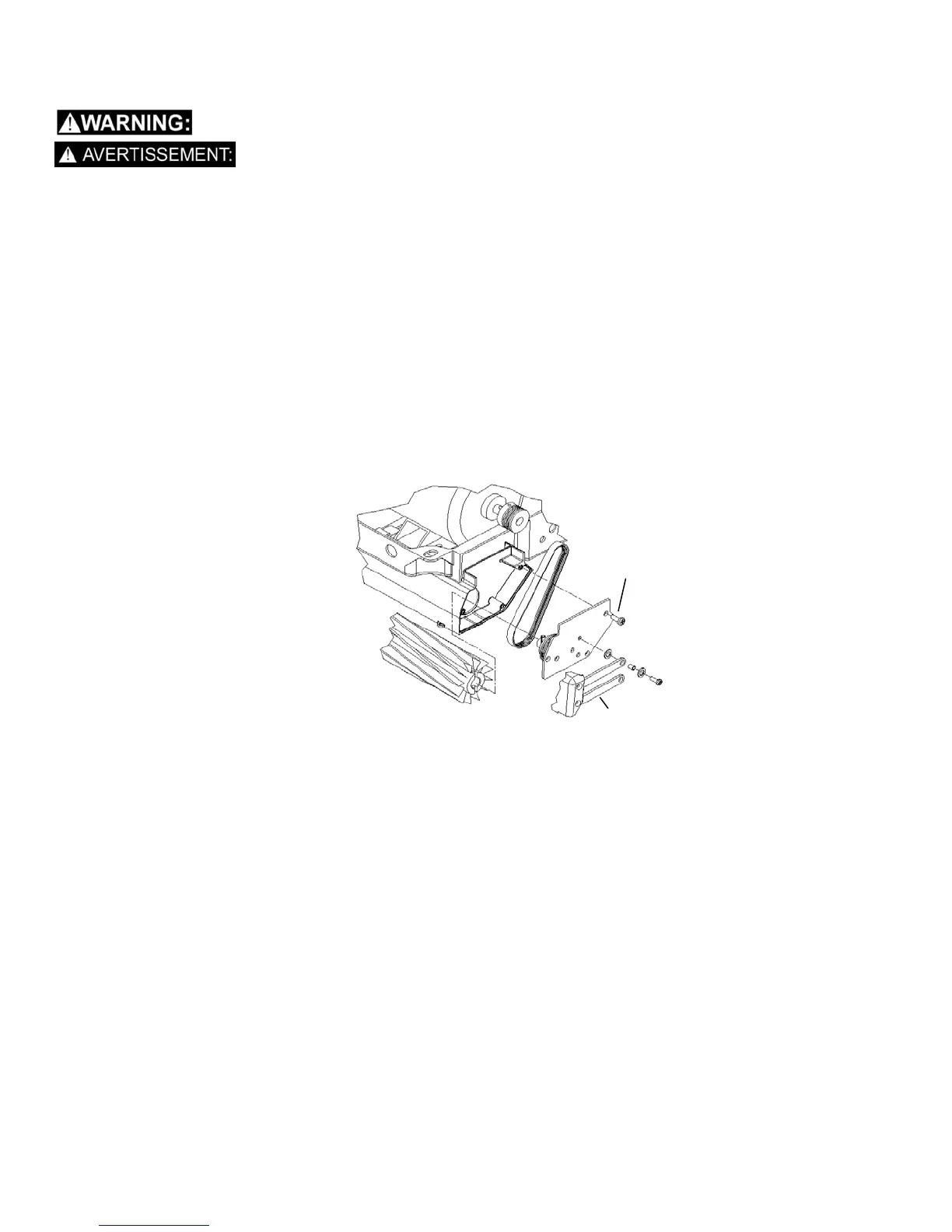

BELT REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank and brush.
3. Remove the (2) screws that fasten the solution tank to the frame, and tilt tank back to expose
the inside of the frame.
4. Loosen the (4) screws that hold the brush motor in place and slide motor forward to release
tension in belt.
5. Remove the (2) screws that fasten the vacuum shoe links (p/n 05016) to the brush housing.
6. Remove the (3) screws that fasten the side plate (p/n 62759) to the brush housing to remove
belt. NOTE: All components associated with driving the brush will come out with the side plate.
7. Reverse process to install belt.
