MAINTENANCE
CLIPPER 86038240
4-5
Only qualified maintenance personnel are to perform the following repairs.
Seul le personnel d'entretien qualifié peut effectuer des réparations.

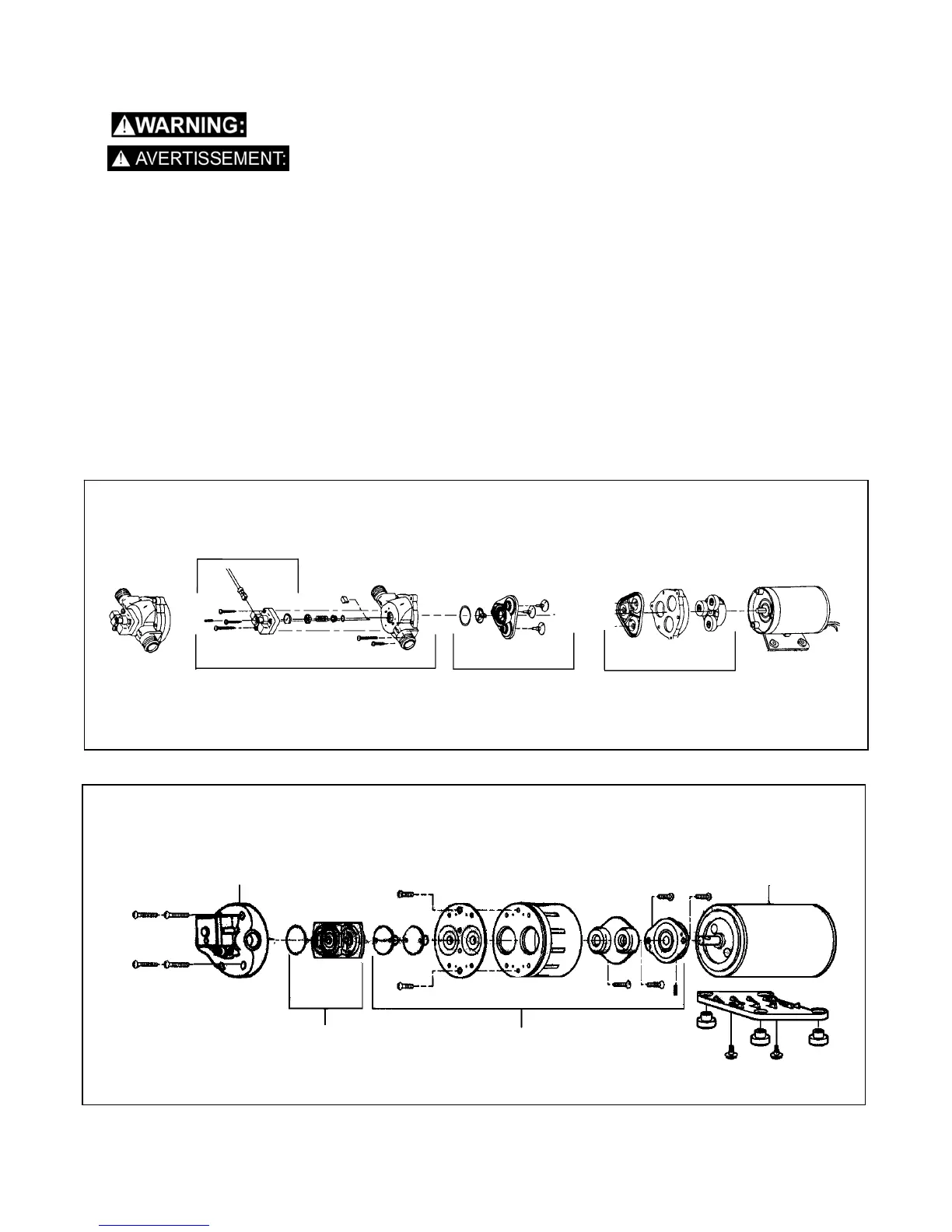

PUMP REPLACEMENT PARTS FOR FLOJET 100 PSI PRIOR TO SERIAL # *
Diaphragm
86235120
PRV NO. 29219
Motor
86247360
PRV NO. 53245
Valve Asm
86258860
PRV NO. 84166
Pump Head
86251090
PRV NO. 65204
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the solution tank to the frame, and
tilt tank back to expose the inside of the frame.
4. Remove solution hoses from fittings in pump.
5. Remove the (2) screws that fasten the pump to the frame.
6. Reverse process to install pump.
PUMP REPLACEMENT KITS SHURFLO 100 PSI ( 86026390) (PRV
NO. 65201)
Bypass Valve Asm
86258830
PRV NO. 84161
Diaphragm
86235100
PRV NO. 29206
Pump Head Replacement
86251040
PRV NO. 65187
86161980
PRV NO. 42-809332
Switch Asm
