Winterhalter UC-L User Manual

Commissioning | 5 | English
Operating instructions UC-Serie | 89014383; Version 2 | 33
5.5 Configuring the transfer strip

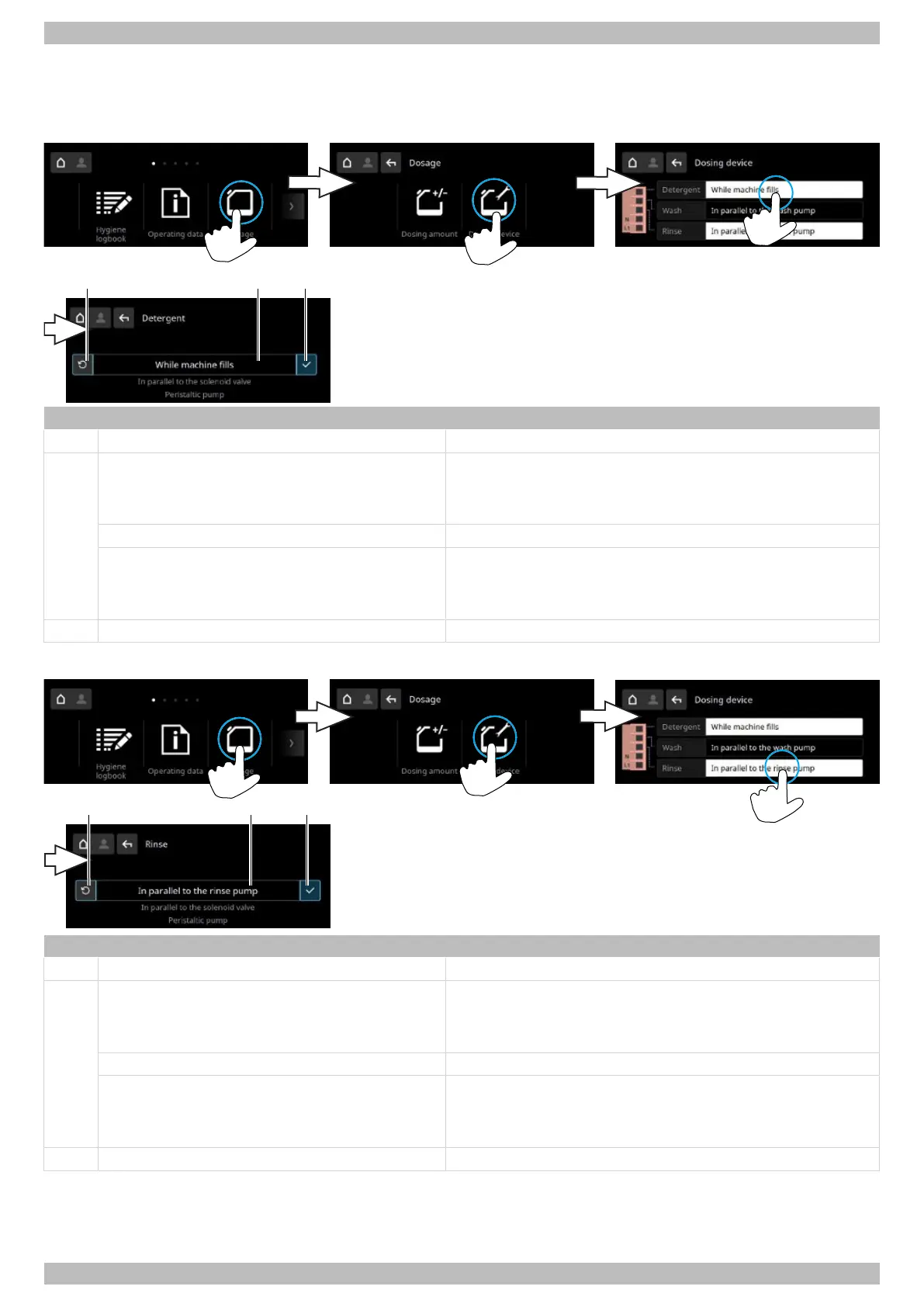

A service technician configures the transfer strip in the Dosing menu, specifying the type of dosing device.
Detergent dosing device
32
1
Item Name Note
1 Reset to default setting
2 For dosing devices not from Winterhalter:
– While machine fills
– Parallel to the solenoid valve
– Peristaltic pump With the “peristaltic pump” setting, set the output in ml/min.
For Winterhalter dosing device:
– Fluidos
– MPI/PPX
Set the dosing amount in the dosing menu.
3 Save settings
Rinse aid dosing device
32
1
Item Name Note
1 Reset to default setting
2 For dosing devices not from Winterhalter:
– Parallel to the rinse pump
– Parallel to the solenoid valve
– Peristaltic pump With the “peristaltic pump” setting, set the output in ml/min.
For Winterhalter dosing device:
– Fluidos
– MPI/PPX
Set the dosing amount in the dosing menu.
3 Save settings

Winterhalter UC-L Specifications

General

Machine Type	Undercounter Dishwasher
Rack Size	500 x 500 mm
Wash Temperature	60°C
Wash Tank Capacity	11 l
Boiler Capacity	6 liters
Power Supply	400V 3N~ 50Hz
Theoretical Capacity	40 racks/h
