Wolf R1 User Manual

333061809_1210

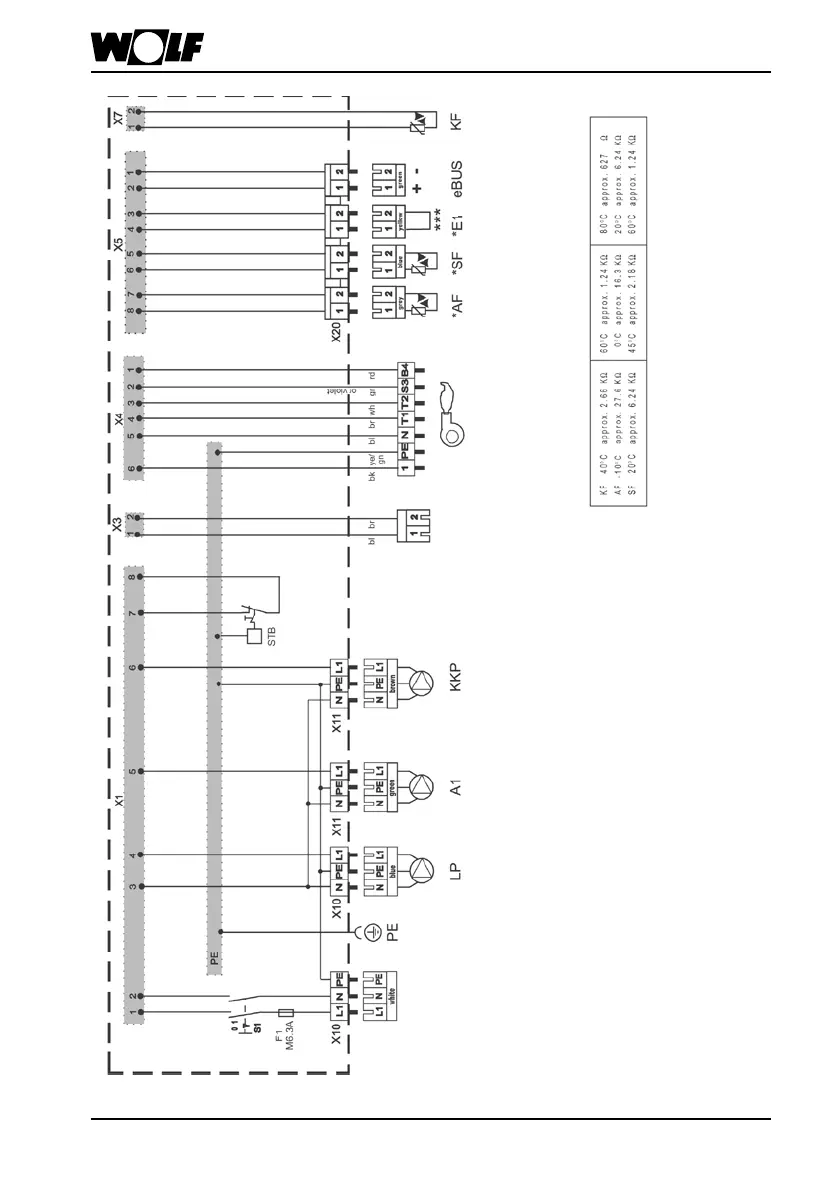

Wiring diagram boiler control unit R1
*Accessories **RemovejumperwhenusingtheprogrammableinputE1(parameterHG13).
On-siteemergency stopswitch
Powersupply230V/50Hz
S1 -ON/OFFswitch F1 -M6.3A X1-20 -Terminalstrip STB -Highlimitsafetycut-out KKP -Boilercircuitpump A1 -ProgrammableoutputA1 LP -Primarypump PE -Earthconductor,boilercasing AF -Outsidetemperaturesensor KF -Boilersensor SF -Cylindersensor E1 -ProgrammableinputE1 eBUS -eBUS
Burnerstage1Remotereset
(option)
