Installation
3–14
DC Fuses
Xantrex recommends a 400 amp Class T or Class RK5 fuse such as a
Bussman JJN or FRN.
Cabling Procedure
Follow the installation procedure given below and consult Figure 3-5 and
Figure 3-6 for additional details that are specific to your installation.

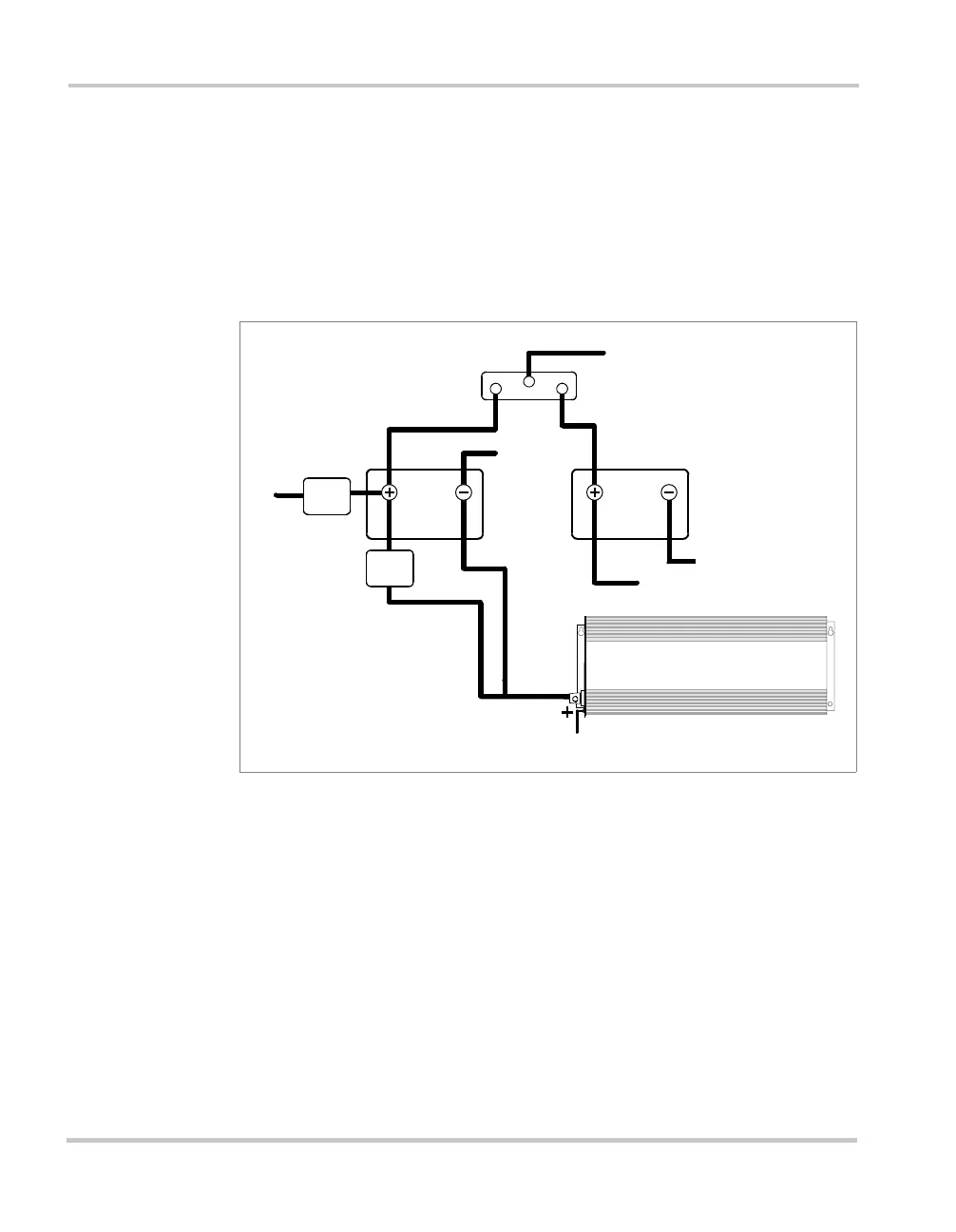

Figure 3-5 Configuration for Normal Loads
FROM ALTERNATOR
OR CHARGER
DEEP-CYCLE
AUXILIARY
BATTERY
VEHICLE
STARTING
BATTERY
ISOLATOR
GROUND TO
VEHICLE
CHASSIS
TO VEHICLE
GROUND TO
VEHICLE
CHASSIS
FUSE OR
CIRCUIT
BREAKER
TO DC
LOADS
GROUND TO
VEHICLE
CHASSIS
FUSE OR
CIRCUIT
BREAKER
GROUND TO
VEHICLE
CHASSIS
PROwatt 3000
