Xerox ColorQube 8880 Service Manual

September 2014
5-9
ColorQube 8570/8870/8580/8880 Service Manual
PL 5.1
Parts Lists
Initial Issue - Xerox Internal Use Only

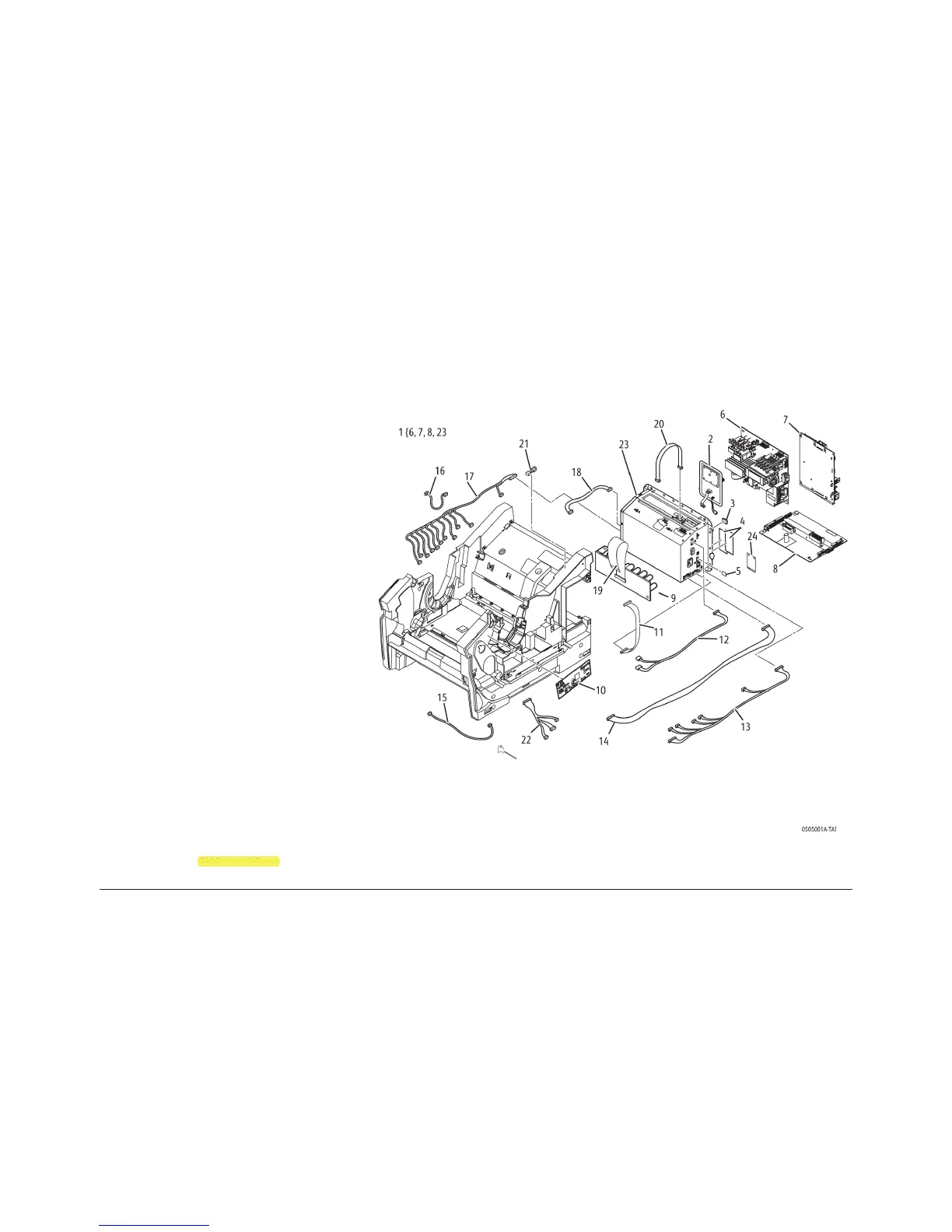

PL 5.1 Electrical
Item Part Description
1
0
84K37201 Electronics Module 8570/8870 (w/o
RAM, Configuration Card, NVRAM)
– 084K42880 Electronics Module 8580/8880 (w/o
RAM, Configuration Card, NVRAM)
2 121K50970 Hard Disk Drive (8570/8870)
3 237E23660 8-pin NVRAM (8570/8870)
– 237E27580 8-pin NVRAM (8580/8880)
4 237E24920 512MB SDRAM, SO-DIMM, 200-PIN
DDR2 (8570/8870)
– 237E27570 1 GB SDRAM, SO-DIMM, 200-PIN
DDR3 (8580/8880)
– – 512 MB SDRAM, SO-DIMM,
200-PIN DDR2 (8570/8870)
– 144K00630 2 GB SDRAM, SO-DIMM, 200-PIN
DDR3 (8580/8880)
5 069E00660 Configuration Card (8570N)
– 069E00670 Configuration Card (8870)
– 069E00650 Configuration Card (8570DN)
– 069E00740 Configuration Card (8880)
– 069E00750 Configuration Card (8580N)
– 069E00760 Configuration Card (8580DN)
6 112E01182 Power Supply Board (8570/8870)
– 112E01240 Power Supply Board (8580/8880)
7 160E02812 Main Controller Board (Image
Processor Main Board) (P/O PL
5.1 Item 1) (8570/8870)
– 160E13980 Main Controller Board (Image
Processor Main Board) P/O PL 5.1
Item 1) (8580/8880)
8 160E02800 Power Control Board
9 960K59601 Wave Amp Board (8570/8870)
– 960K87930 Wave Amp Board (8580/8880)
10 960K59610 I/O Board
11 117E36470 Cable, Ink Loader Data
12 117E36480 Cable, AC Heater, Drum, Preheater
13 117E36390 Harness, Right Side Power Control/
Drum Preheater AC Heater
14 117E29830 Cable, I/O Board Data
15 117E28780 Cable, Front Door
16 117E34880 Cable, Y-Axis Motor Ground Strap
17 117E43980 Harness, Left Side Power Control
18 117E36760 Cable, Wave Amp Signal
19 117E36970 Cable, ZIF, Wave Amp (8570/8870)
– 117E44970 Cable, ZIF, Wave Amp (8580/8880)
20 117E29840 Cable, Printhead Interface
21 952K00190 ASM, Jetstack Fuse
22 117E36740 Cable, Right Umbilical
23 013E49560 DM Camshaft Brace
24 121K64680 Solid-state Drive (8580/8880)
23
013E49560 DM Camshaft Brace

Xerox ColorQube 8880 Specifications

General

Color	Yes
Maximum duty cycle	120000 pages per month
Number of print cartridges	1
Page description languages	PCL 5Ce, TIFF
Maximum resolution	2400 x 1200 DPI
Time to first page (color, normal)	5 s
Print speed (color, draft quality, A4/US Letter)	51 ppm
Print speed (black, normal quality, A4/US Letter)	- ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	2048 MB
Total input capacity	625 sheets
Total output capacity	350 sheets
Total number of input trays	5
Multi-Purpose tray input capacity	100 sheets
Paper tray media types	Thin paper
Maximum ISO A-series paper size	A4
Wi-Fi	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	RedHat EL Linux 4.0 U5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (printing)	- W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Product color	White
Market positioning	Business

Weight and Dimensions

Depth	521 mm
Width	406 mm
Height	368 mm
