Xerox ColorQube 8880 Service Manual

September 2014
5-5
ColorQube 8570/8870/8580/8880 Service Manual
PL 1.1
Parts Lists
Initial Issue - Xerox Internal Use Only

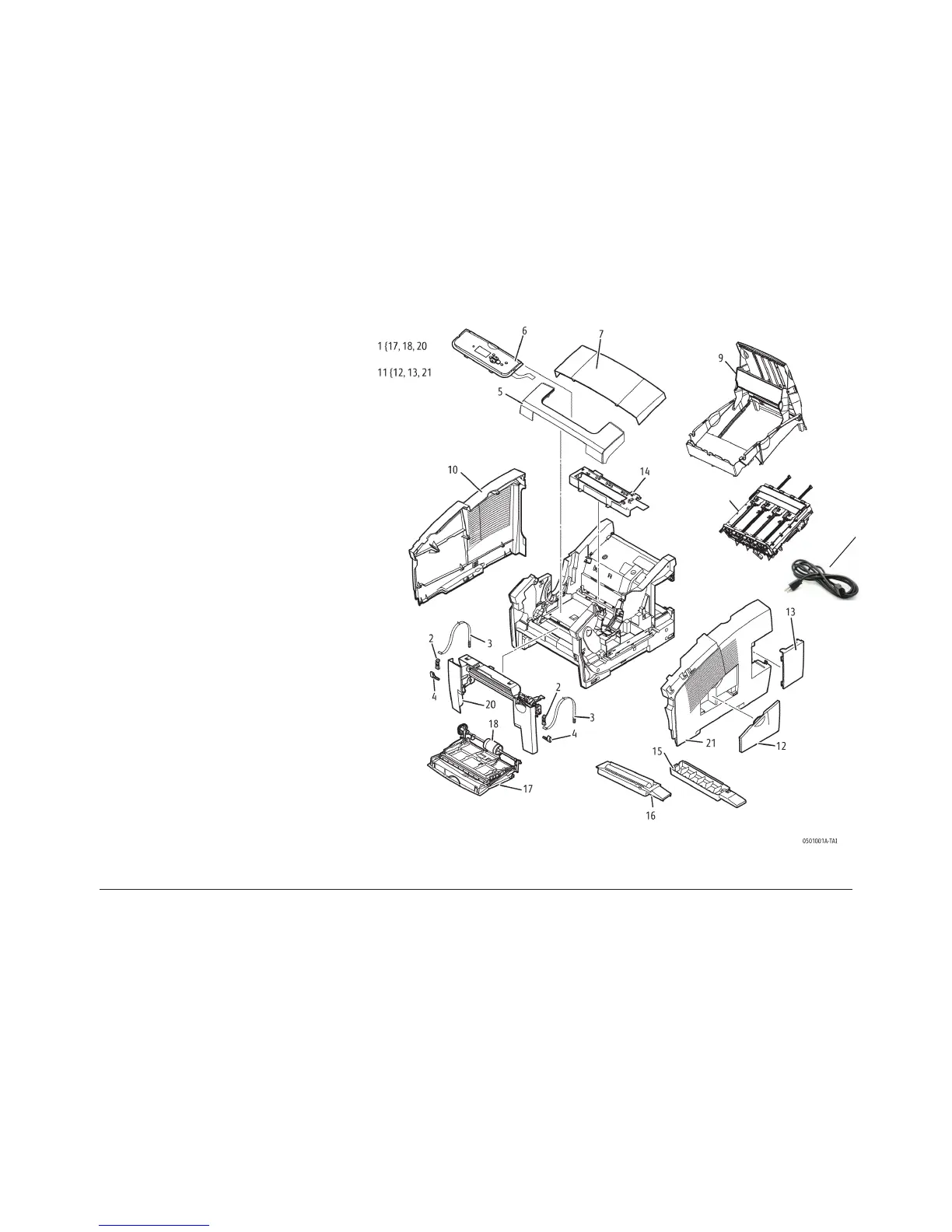

PL 1.1 Covers
Item Part Description
1
8
48K48710 Front Door/ Tray 1 (MPT) Assembly
2 120E29140 Front Door Stay Retainer
3 009K02390 Front Door Stay with Spring
4 029E49330 Hinge Pins, Front Door
5 101E29410 Control Panel Cover
6 101K64840 Control Panel with Bezel
7 848E62810 Exit Cover
8 815K13130 Ink Loader & Bezel (8870/8880)
– 815K13120 Ink Loader & Bezel (8570/8580)
9 056E05490 Ink Loader Bezel
10 848E62700 Left Side Cover
11 848E62690 Right Side Cover with Doors
12 848E68810 Drum Maintenance Door (Side)
(P/O PL 1.1 Item 11)
13 101E29420 I/O Access Door (P/O PL 1.1 Item
11)
14 – Waste Tray Cover
15 109R00754 Waste Tray
16 109R00783 Drum Maintenance Unit, Extended
– 109R00784 Drum Maintenance Unit, Standard
17 050K68070 MPT Tray Arm (P/O PL 1.1 Item 1)
18 059K63590 MPT Pick Roller (P/O PL 1.1 Item
1)
19 117E43980 Power Cord
20 – Front Door (Not Spared)
21 – Right Cover (Not Spared)
8
19
8 { 8, 9

Xerox ColorQube 8880 Specifications

General

Color	Yes
Maximum duty cycle	120000 pages per month
Number of print cartridges	1
Page description languages	PCL 5Ce, TIFF
Maximum resolution	2400 x 1200 DPI
Time to first page (color, normal)	5 s
Print speed (color, draft quality, A4/US Letter)	51 ppm
Print speed (black, normal quality, A4/US Letter)	- ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	2048 MB
Total input capacity	625 sheets
Total output capacity	350 sheets
Total number of input trays	5
Multi-Purpose tray input capacity	100 sheets
Paper tray media types	Thin paper
Maximum ISO A-series paper size	A4
Wi-Fi	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	RedHat EL Linux 4.0 U5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (printing)	- W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Product color	White
Market positioning	Business

Weight and Dimensions

Depth	521 mm
Width	406 mm
Height	368 mm
