Xerox ColorQube 8880 Service Manual

September 2014
5-6
ColorQube 8570/8870/8580/8880 Service Manual
PL 2.1
Initial Issue - Xerox Internal Use Only
Parts Lists

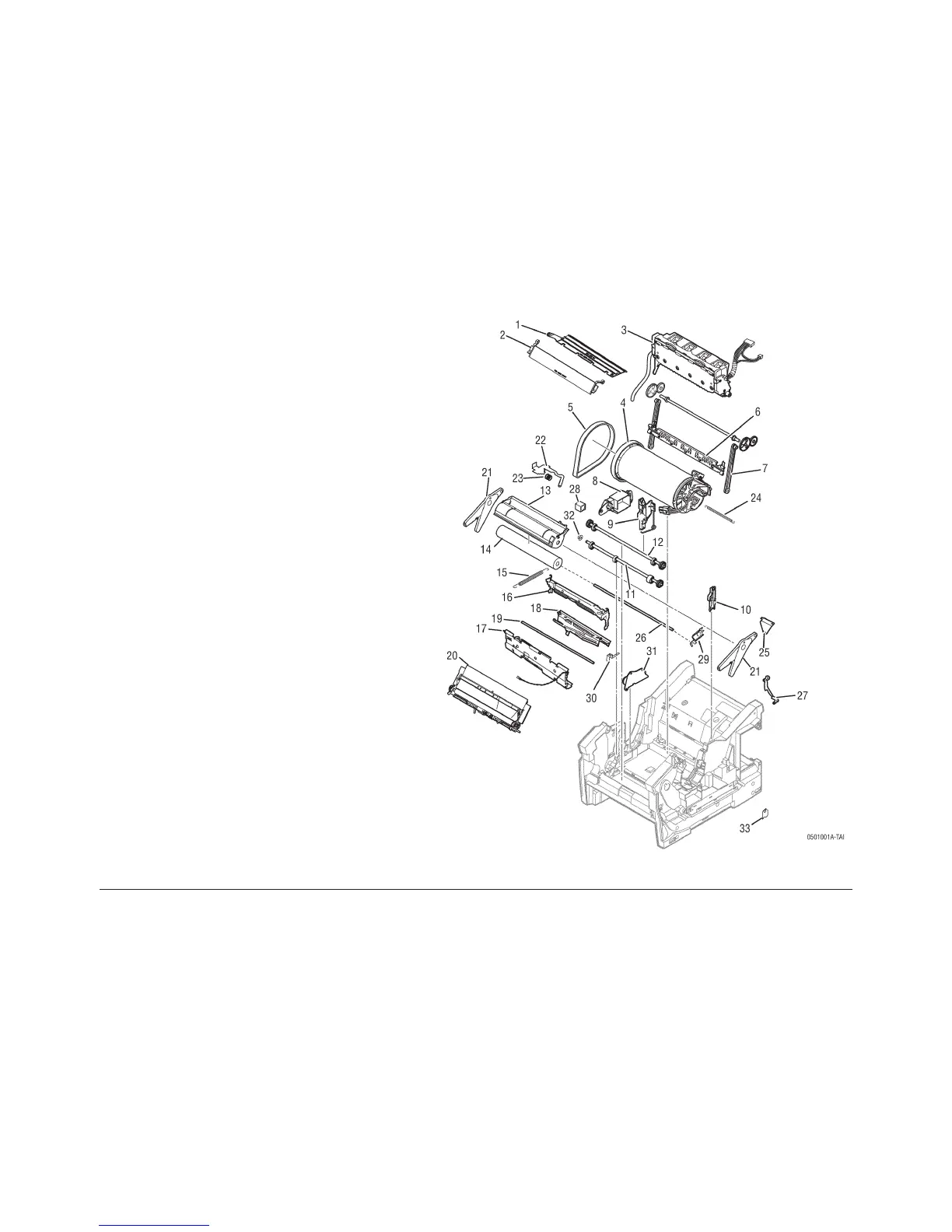

PL 2.1 Imaging
Item Part Description
1
0
93K24020 Funnel Cap
2 021E17590 Jetstack Cap
3 604K61960 Printhead Assembly
4 020K20790 Drum Assembly
5 023E30670 Y-Axis Belt
6 033K04890 Printhead Wiper
7 023E31250 0Belt, Wiper Drive
8 094E02790 Purge Pressure Pump Kit
9 120E36720 Left Printhead Restraint
10 120E36710 Right Printhead Restraint
11 008K02371 Drum Maintenance Camshaft
12 008K02360 Transfix Camshaft
13 041K06650 Stripper Carriage Assembly
14 059K76541 Roller, Transfix
15 809E69920 Spring, Y-Axis Tension
16 103K01680 Transfix Load Module
17 020K20800 Drum Maintenance Pivot Plate
Assembly
18 033K04980 Drum Wiper Blade Assembly
19 – Pivot Plate Shaft
20 126E02850 Preheater and Deskew Assembly
21 059K77530 Transfix Arm Kit (with 1 arm and 1 pin)
22 019E75180 Hook, X-Axis Bias Spring
23 809E69940 Spring, X-Axis Roll Adjuster
24 809E69930 Spring, X-Axis Bias
25 – X-Axis Bias Spring Retainer (Not
Spared)
26 – Transfix Roller Shaft (Not Spared)
27 013E49560 Drum Ground Plate (Not Spared)
28 – Roll Block (Not Spared)
29 – Transfix Roller Shaft Restraint (Not
Spared)
30 – Transfix Load Module Ground Strap
(Not Spared)
31 607K01020 Head Tilt Gear Train (see #34 also)
32 016K01930 5mm Bushing
33 013E49560 DMU Camshaft Right Bushing
Retainer
34 655N00518 Gear Train Mounting Repair Kit
