Xerox ColorQube 8880 Service Manual

September 2014
5-8
ColorQube 8570/8870/8580/8880 Service Manual
PL 4.1
Initial Issue - Xerox Internal Use Only
Parts Lists

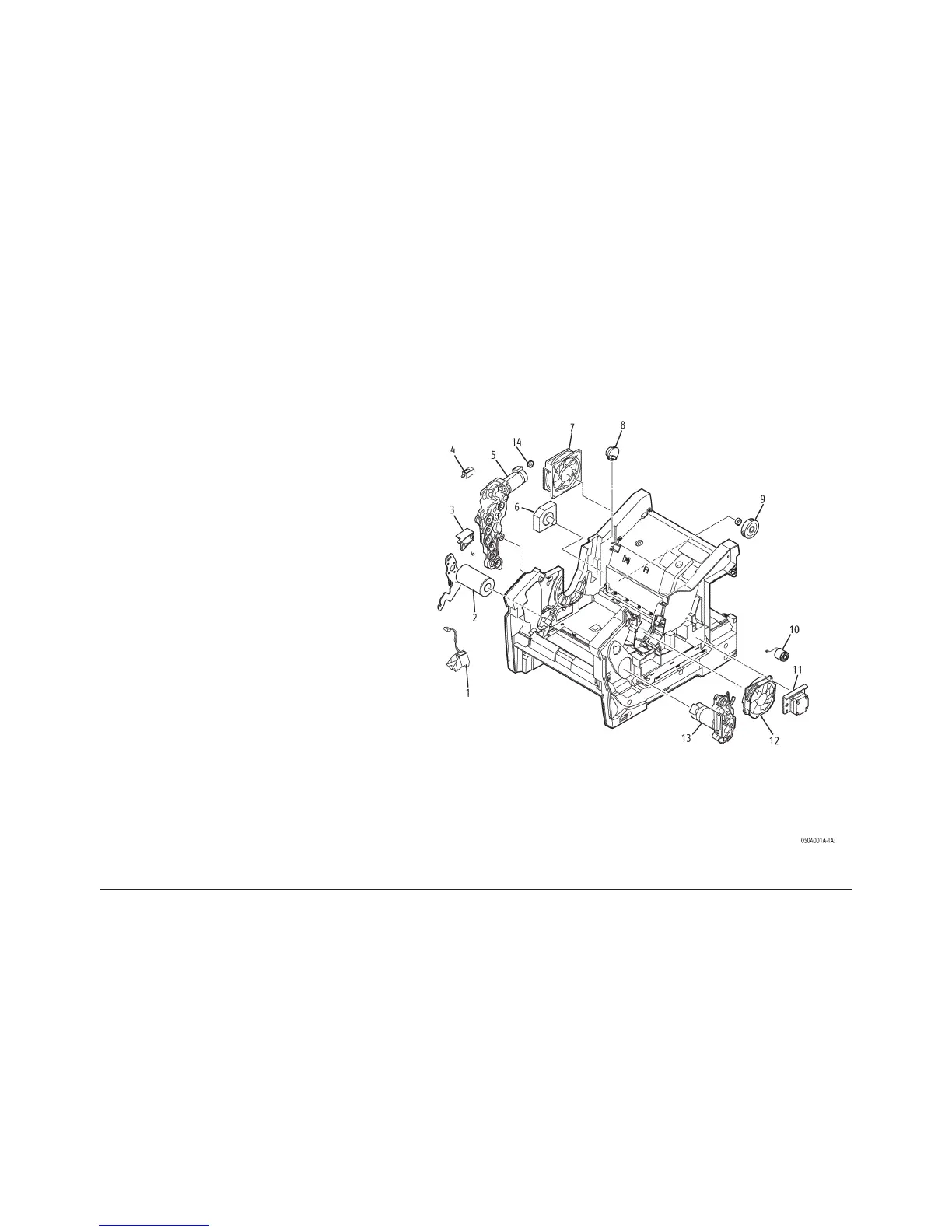

PL 4.1 Drive
Item Part Description
1
1
21K44430 Preheater Lift Solenoid Assembly
2 127K68130 Y-Axis Motor Assembly
3 121E20120 Tray 1 Pick Solenoid
4 121K44480 Head Tilt Solenoid Assembly
5 007K20040 Media Drive with 2 Clutches
6 127E17160 Tray 2 Lift Motor
7 133K25010 Electronics Module Fan
8 807E39791 Compound Head Tilt Gear, Missing
Tooth
9 – Lift Motor Gear (P/O PL 4.1 Item 6)
10 033E05190 Head Maintenance Clutch (Electric
Clutch, Wiper)
11 127K68451 X-Axis Motor Assembly w/Bracket
12 127E16890 Drum Cooling Fan
13 007K21860 Process Drive with Gear Box and
Motor (See #15)
14 004K07630 Damper, CAM, Head Tilt
15 – Head Tilt Missing Tooth Gear
15 604K55230 Process Drive Post Repair Kit

Xerox ColorQube 8880 Specifications

General

Color	Yes
Maximum duty cycle	120000 pages per month
Number of print cartridges	1
Page description languages	PCL 5Ce, TIFF
Maximum resolution	2400 x 1200 DPI
Time to first page (color, normal)	5 s
Print speed (color, draft quality, A4/US Letter)	51 ppm
Print speed (black, normal quality, A4/US Letter)	- ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	2048 MB
Total input capacity	625 sheets
Total output capacity	350 sheets
Total number of input trays	5
Multi-Purpose tray input capacity	100 sheets
Paper tray media types	Thin paper
Maximum ISO A-series paper size	A4
Wi-Fi	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	RedHat EL Linux 4.0 U5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (printing)	- W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Product color	White
Market positioning	Business

Weight and Dimensions

Depth	521 mm
Width	406 mm
Height	368 mm
