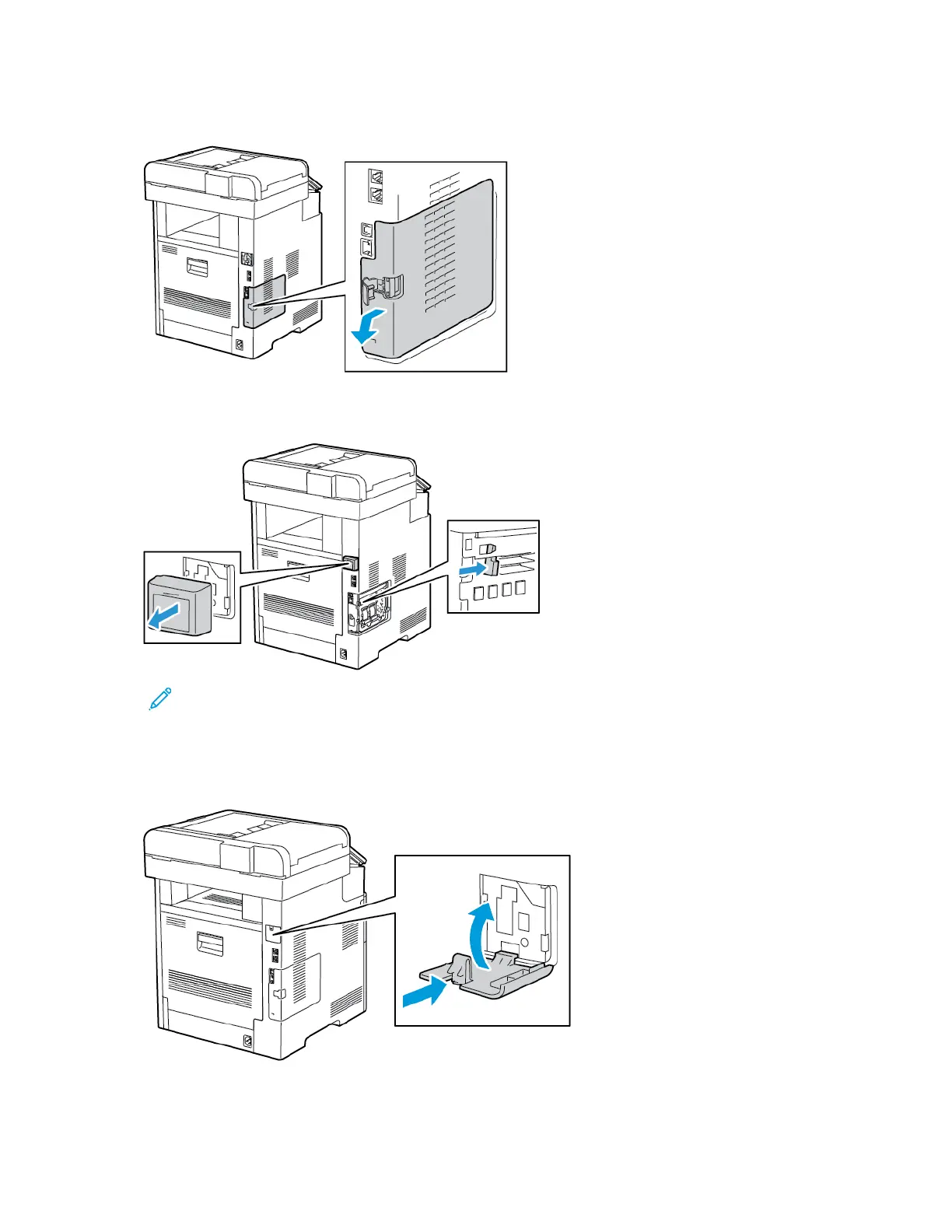

3. To remove the cover, slide it toward the back, then away from the printer.
4. Reach into the printer and push the release lever toward the front of the printer. Hold the release
lever in this position and gently pull the Wireless Network Adapter away from the printer.
Note: Do not use force to pull on the Wireless Network Adapter. If the latch is
released properly, the adapter pulls out easily. Pulling on a secured adapter can
damage it.
5. To reinstall the Wireless Network Adapter Port Cover, insert the bottom tab into the small slot.
Gently press the port cover against the back of the printer until it latches into place.
42
