Chapter 3: APU Software Platform
With HDMI AUDIO design, to enable audio in a Demo mode, go to Input Settings. Select
Input1: HDMI > Settings > Audio Settings > Enable Audio > true, and click Demo
Mode.
Settings
You can control the Encoder, Record, and Stream Out configuration from the GUI (see
Figure 3-11 and Tab le 3 -3 ). Settings options are enabled when the pipeline is in the stop
state.
X-Ref Target - Figure 3-11

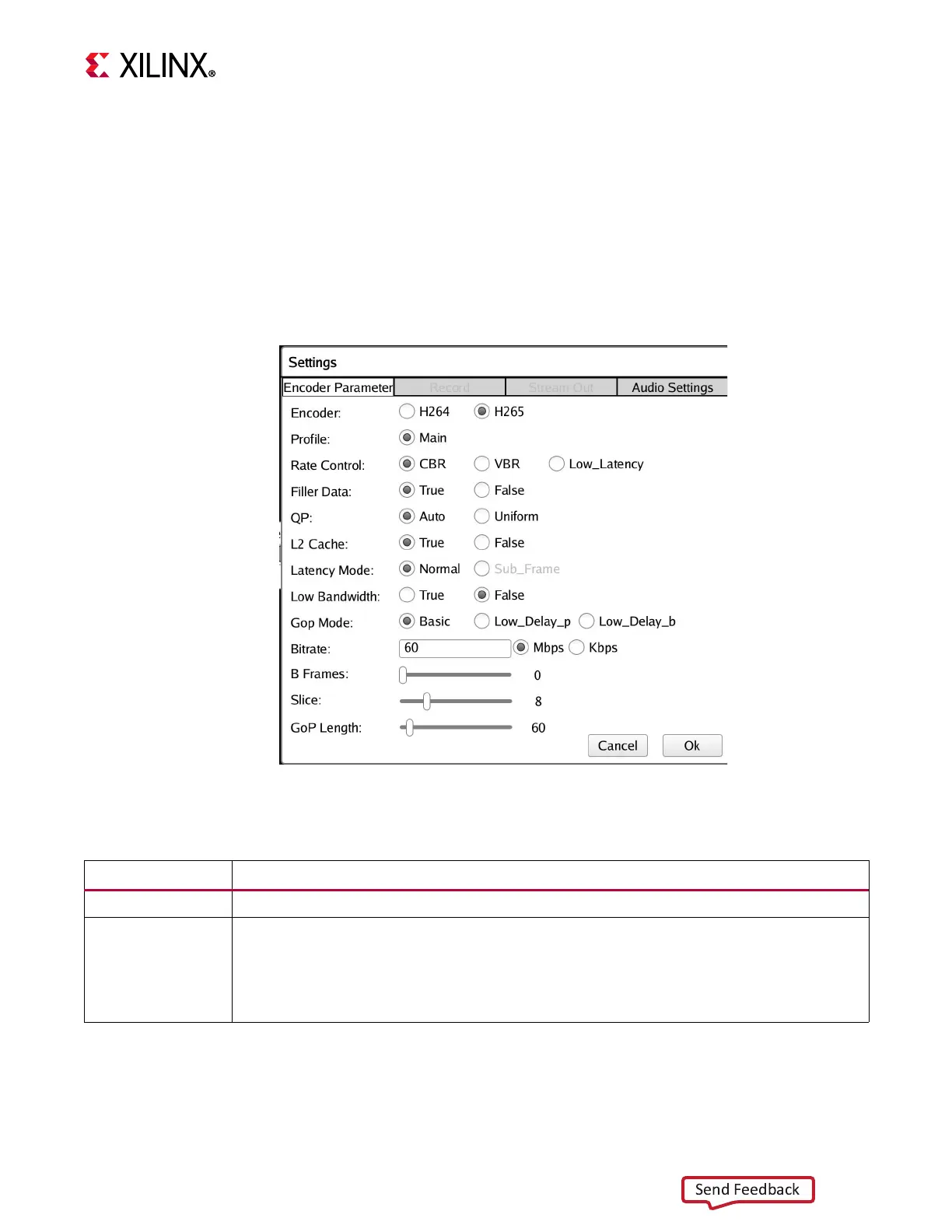

Figure 3-11: Encoder Parameter Panel
X19923-112718
Table 3-3: Encoder Parameter Panel Settings
Encoder Parameter Setting
Encoder This can be either H264 or H265.
Profile The standard defines a sets of capabilities, which are referred to as profiles, targeting
specific classes of applications. These are declared as a profile code (profile_idc) and a set
of constraints applied in the encoder. This allows a decoder to recognize the requirements
to decode that specific stream.
H264 supports Baseline, Main, and High profile. In H265, only the Main profile is supported.
