Xinje DS5F-21P5-PTA User Manual

128
6.4.3 Operation tools
Internal instruction auto-tuning and external instruction auto-tuning can be executed by driver panel
and XinJeServo software.
Auto-tuning mode
Operation tools
Limit item
Internal instruction
auto-tuning
external instruction
auto-tuning
XinJeServo software
All the versions support
Driver panel
Driver firmware needs 3700 and higher
versions
Note: please check the driver firmware version through U2-07.

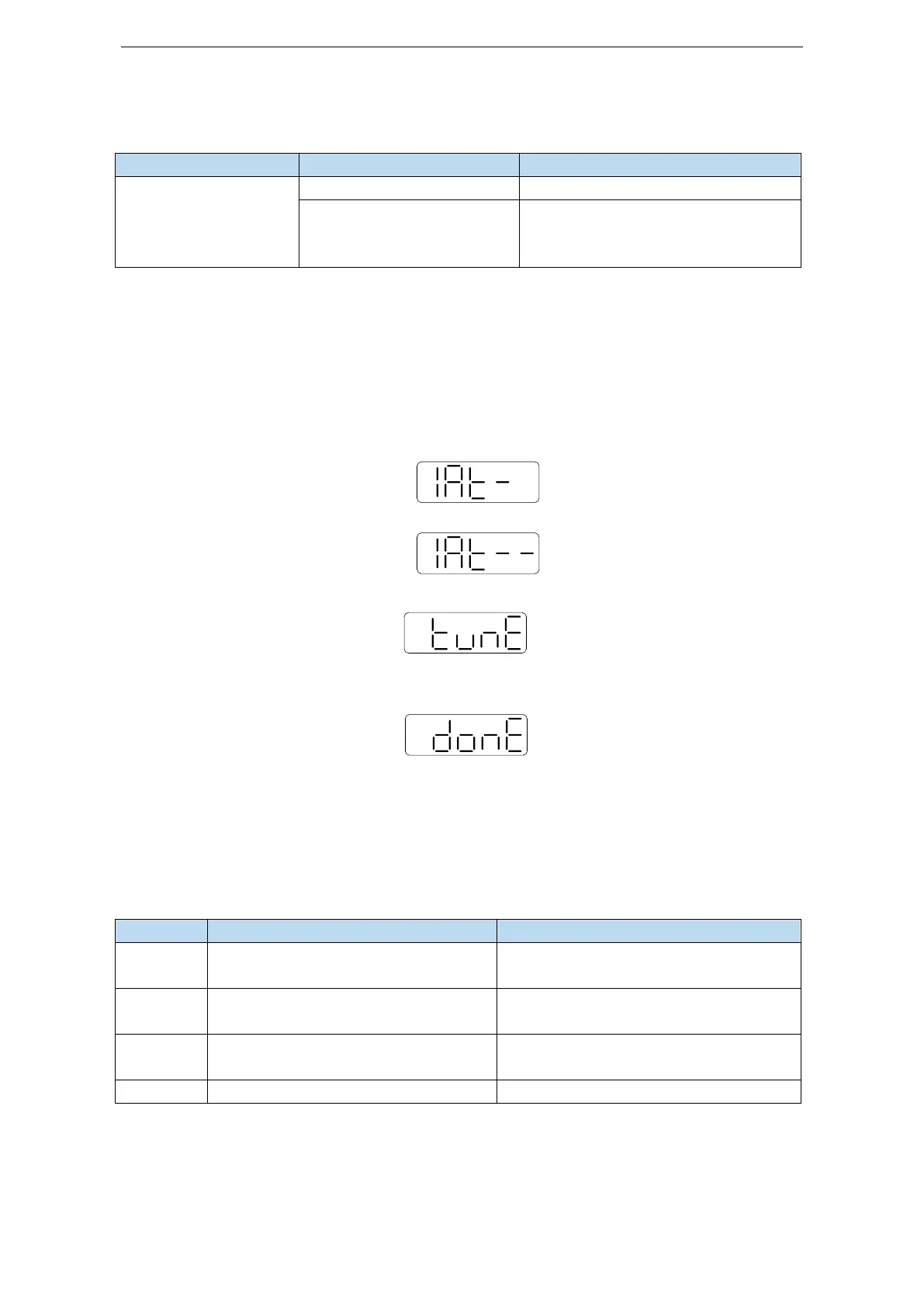

6.4.4 Internal instruction auto-tuning steps
Driver panel auto-tuning steps
1. The inertia identification is carried out, and the inertia estimation steps please refer to chapter
6.2.4 operation steps.
2. Enter F0-09, panel display is iat-；
3. Press ENTER, panel display is iat--, servo is in enabled status right now;
4. Press INC or DEC, panel display is tune and flashing, enter auto-tuning status;
5. Driver will automatically send pulse instructions, if the auto-tuning is successful, the panel
shows done and flashing.
6. Press STA/ESC to exit internal instruction auto-tuning.
Note: In the process of auto-tuning, press STA/ESC will exit the auto-tuning operation and use the
gain parameters at the exit time. If auto-tuning fails, it is necessary to initialize the driver before
auto-tuning again.
 Panel alarm in auto-tuning process
Error code
Meaning
Reasons
Err-1
Failure to search for optimal gain
Too large inertia ratio; too weak rigidity of
mechanism
Err-2
Overtrip alarm in auto-tuning process
Please make sure that there is no overrun
and alarm before auto-tuning.
Err-6
Driver is not in "bb" state at the time of
operation
Please make sure the present status of
driver
Err-7
Driver alarmed in auto-tuning process
The driver alarm occurs
