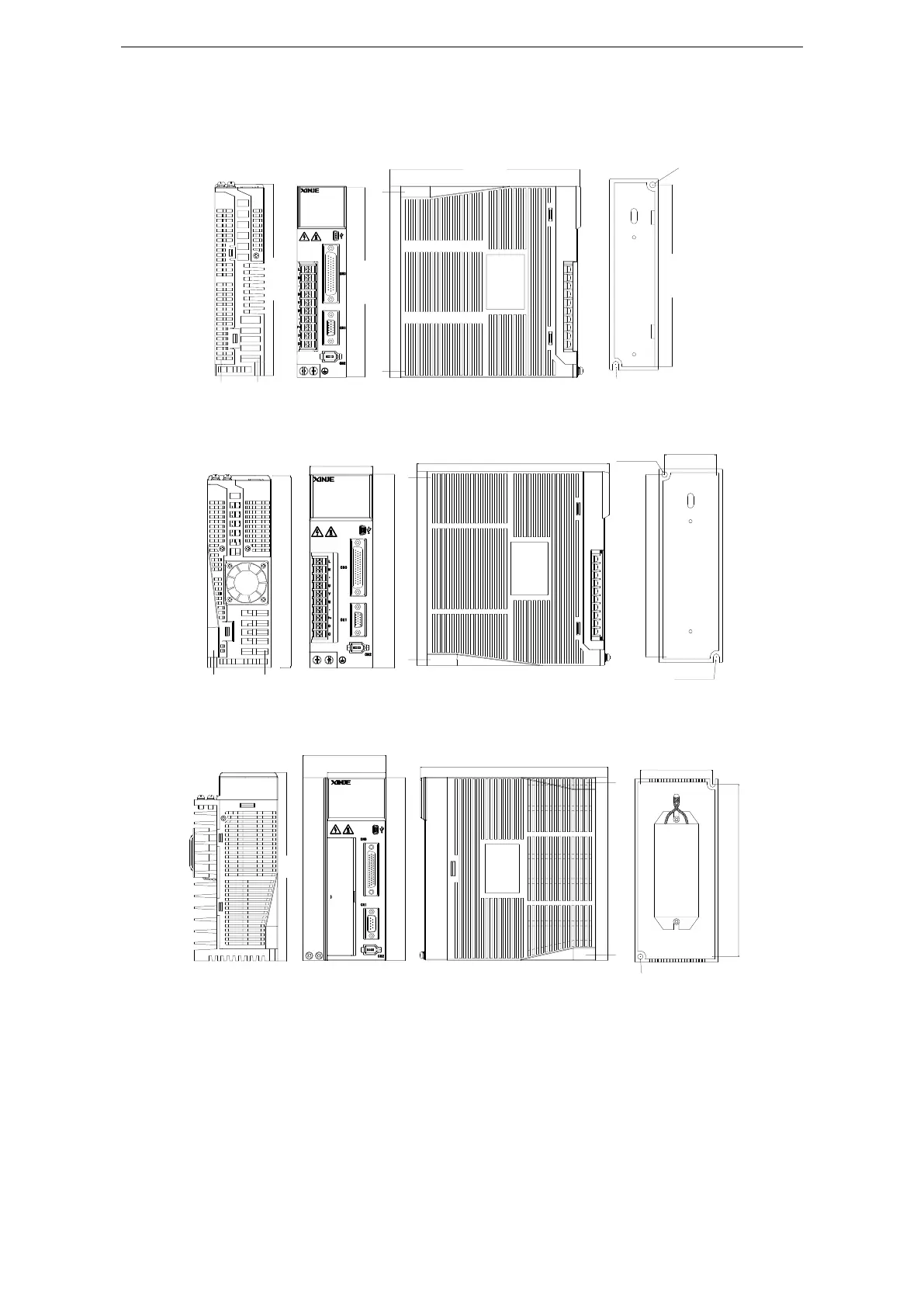

2.4 Servo driver dimension
DS5F-20P1-PTA, DS5F-20P2-PTA, DS5F-20P4-PTA Unit: mm
173.2
175.1
166.0
Ø5.5
Ø5.5
174.6
DS5F-20P7-PTA Unit: mm
181.30
181.3
48.75
172
φ5.5
φ5.5
60
183
DS5F-21P5-PTA, DS5F-22P3-PTA, DS5F-22P6-PTA Unit: mm
192
186
60
85
191.6
175
74
Ø5.50
