2-3-2. Interface description

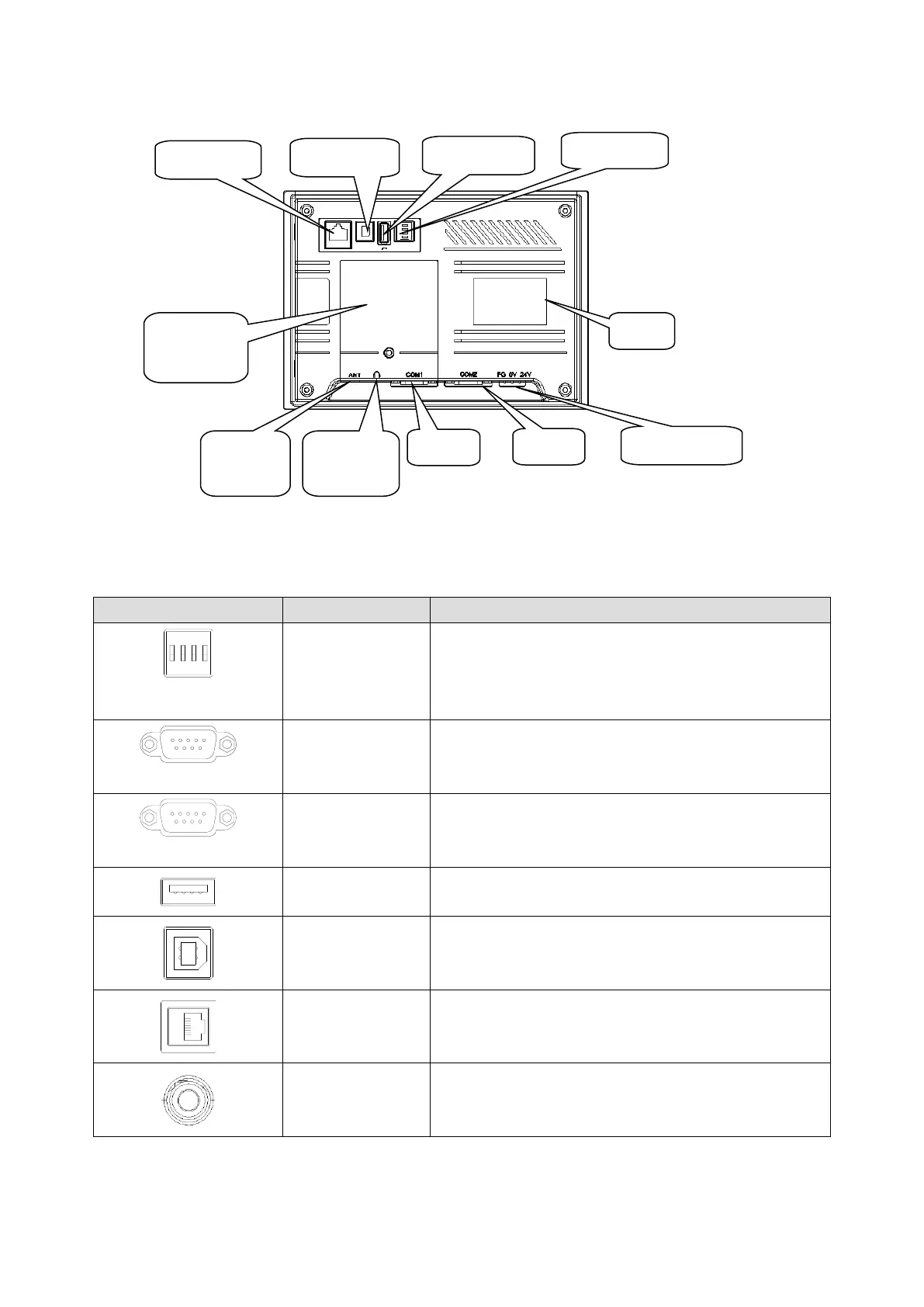

The HMI of Xinje TS5L series is described as follows:
Appearance
Name
Function
1 2 3 4
1 2 3 4
Dial switch
Used to set forced download, touch calibration, etc
Download
COM1
COM1
Support RS232/RS485 communication
PLC
COM2
COM2
Support RS232/RS485/RS422 communication
USB-A port
USB flash disk can be inserted to store data, and USB
flash disk can be imported into the project
USB-B port
Connect USB cable to upload/download program
Ethernet port
Support communication with TBOX, Siemens S7-1200,
Siemens S7-200 Smart and other Modbus TCP devices
Audio interface
ɸ3.5 coaxial audio plug, supporting the connection of
speakers for sound output
1. Dial switch
The TS5L series HMI has a set of 4-bit dial switches, which are located at the bottom right of the back. The
Label
Power supply
COM1
COM
2
USB-B port
Dial switch
USB-A port
RJ45 port
Audio
interface
Antenna
interface
Expansion
module
