Xinje TS Series User Manual

3
Product model
TS3-700
TS3-1000
Voltage impact
resistance
AC1000V, 10mA, less than 1 minute (signal and ground)
Insulation
resistance
Above 10MΩ, DC500V
Environment
Operation
temperature
0-50℃
Storage
temperature
-10-60℃
Operation
humidity
10%RH-90%RH (no condensation)
Anti
interference
capability
Voltage noise: 1500Vp-p, pulse width 1us, 1 minute
Air
No corrosive gas
Cooling
method
Natural air cooling
Protection
Front cover IP65
Dimension
Display area
154.08*85.92 mm
219.6*131.76 mm
Product
dimension
206.0*147.0*35.0 mm
277.0*191.7*36.6 mm
Opening
dimension
192.3*138.6 (±0.5) mm
260.2*179.7 (±0.5) mm
【Note】: Flash has a lifetime of 100000 erasures.
1-3. Part description
1-3-1. Structure description

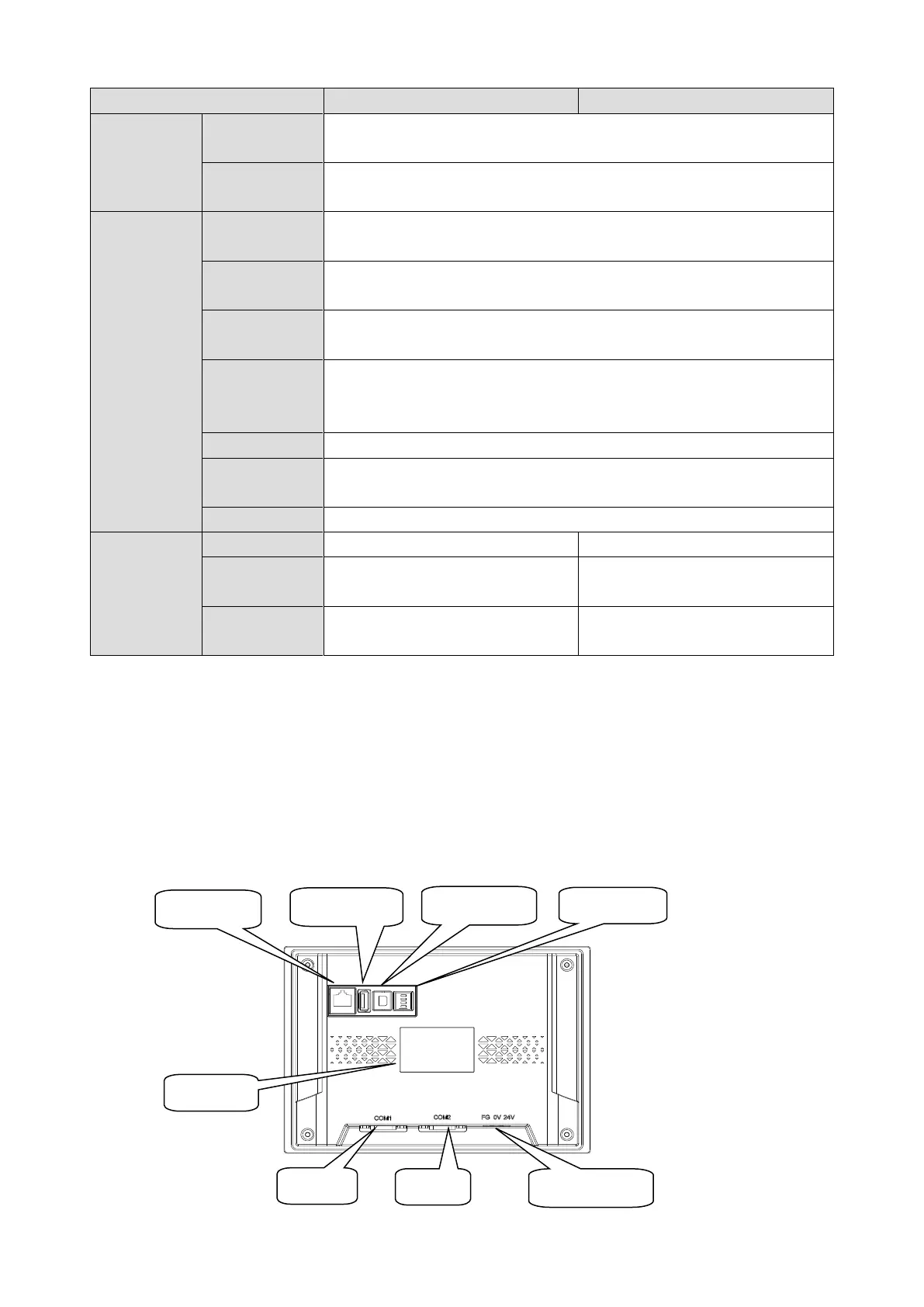

The following figure shows the reverse area of TS3 HMI. For specific model and appearance, please refer to the
chapter "1-4 Product Dimensions and Installation".
Labels
Power supply
COM1
COM2
USB-B port
Dial switch
USB-A port
RJ45 port
