OVEN ONLY ROUGH-IN SPECIFICATIONS
NOTE
Utilities must be easily accessible when the ovens are in the installed position. Do not
install utilities behind the ovens.

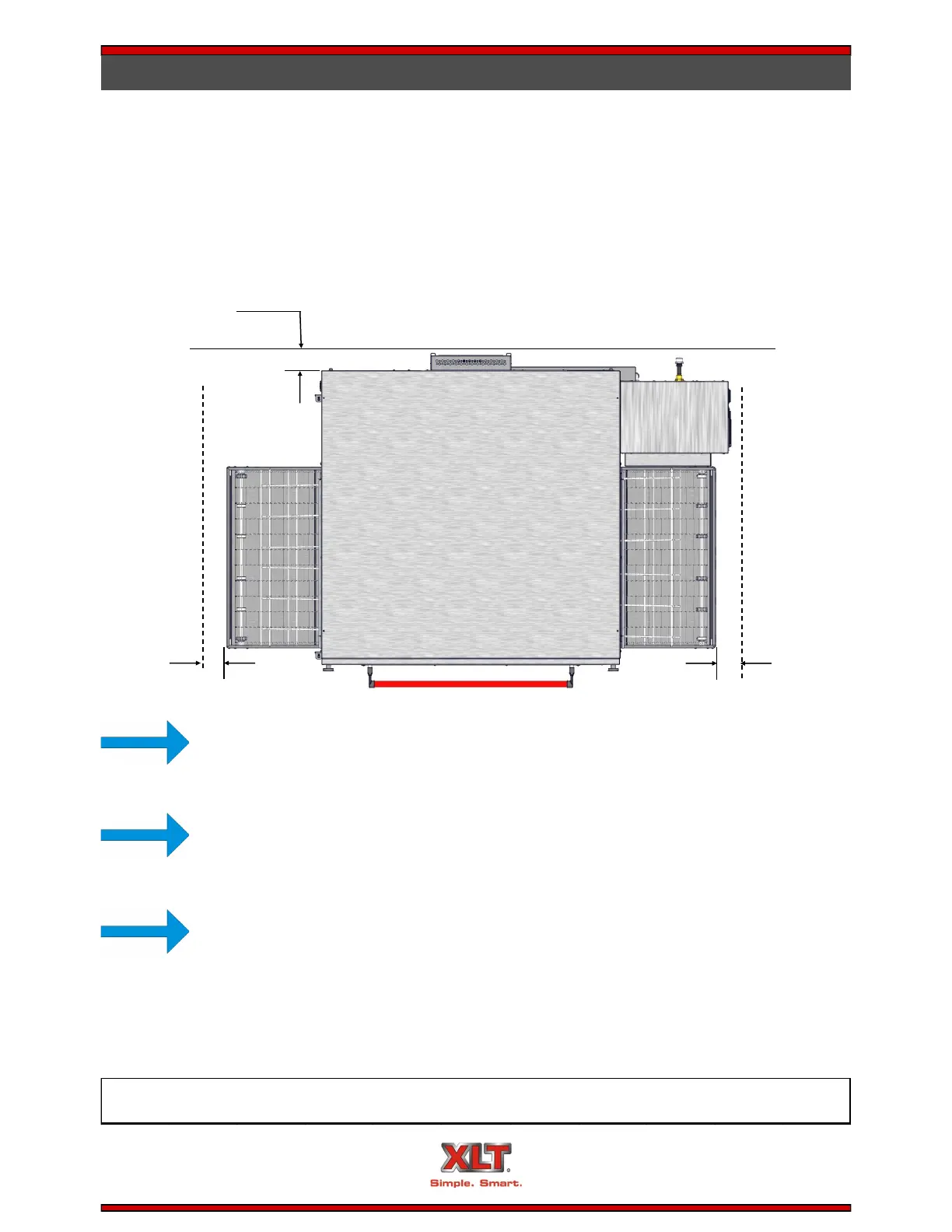

3.00 [76]
From back of
oven to wall
6.00 [152]
minimum
clearance
6.00 [152]
minimum
clearance
These ovens are suitable for installation on either combustible or non-combustible floors,
and adjacent to either combustible or non-combustible walls. The motor cover is designed to pro-
vide the proper clearance to the back of the oven. The minimum side clearances are 3in/76mm,
measured from the back of the oven and 6in/152mm from the end of the conveyor.
NOTE
All installations must conform to local building and mechanical codes. It is required
that the ovens be placed under a ventilation hood to provide exhaust ventilation and
adequate air supply.
NOTE
Equipment must be installed with cord anchorage to relieve strain on conductors,
twisting of terminals, and abrasions to insulation.
