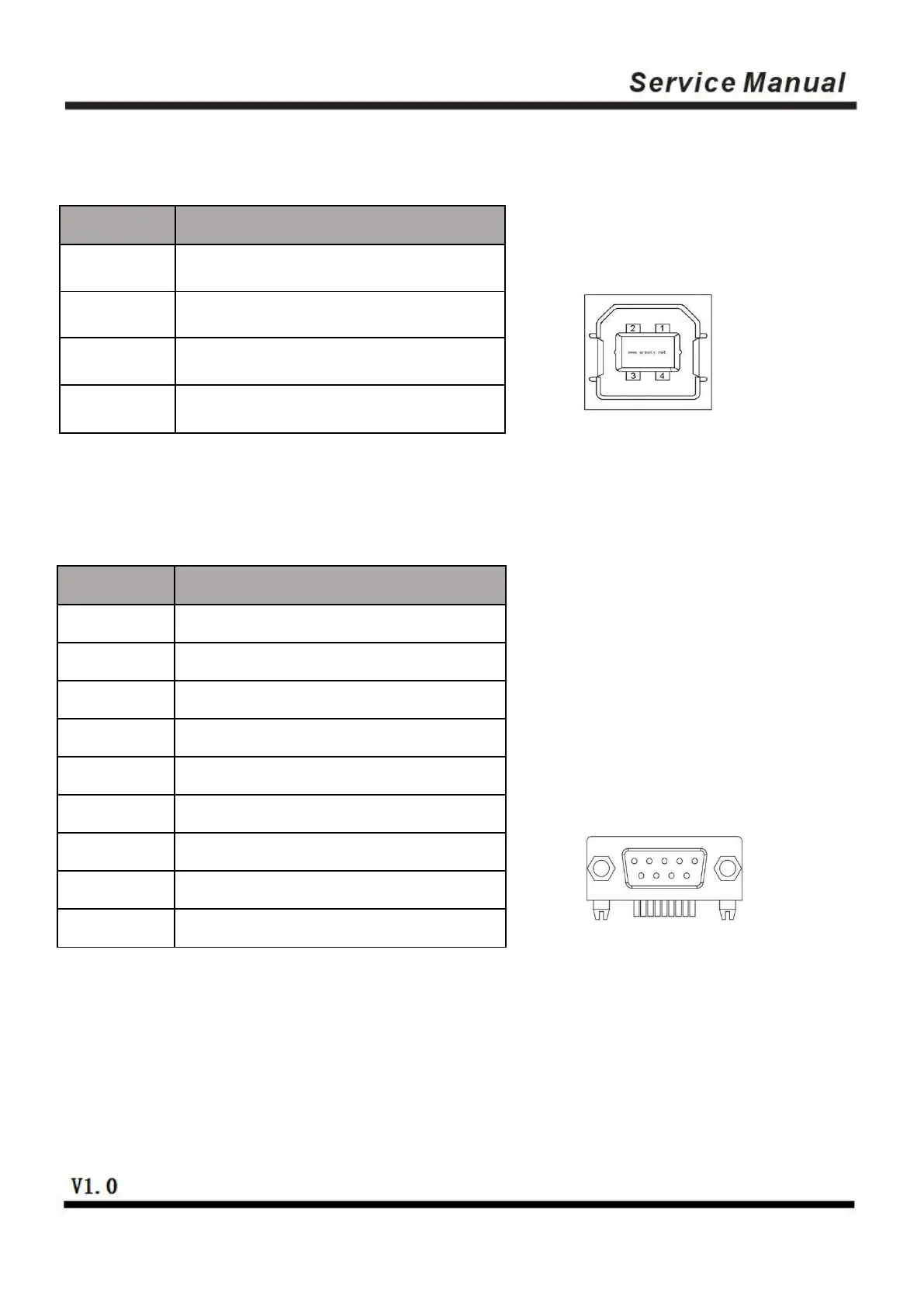

2.3.3
USB interface
2.3.4
Serial interface
PIN
SIGNAL NAME
1
VBUS
2
D- (DATA-)
3
D+ (DATA+)
4
GND
PIN
SIGNAL NAME
1
-
2
TXD
3
RXD
4
-
5
GND
6
DSR
7
-
8
CTS
9
-
