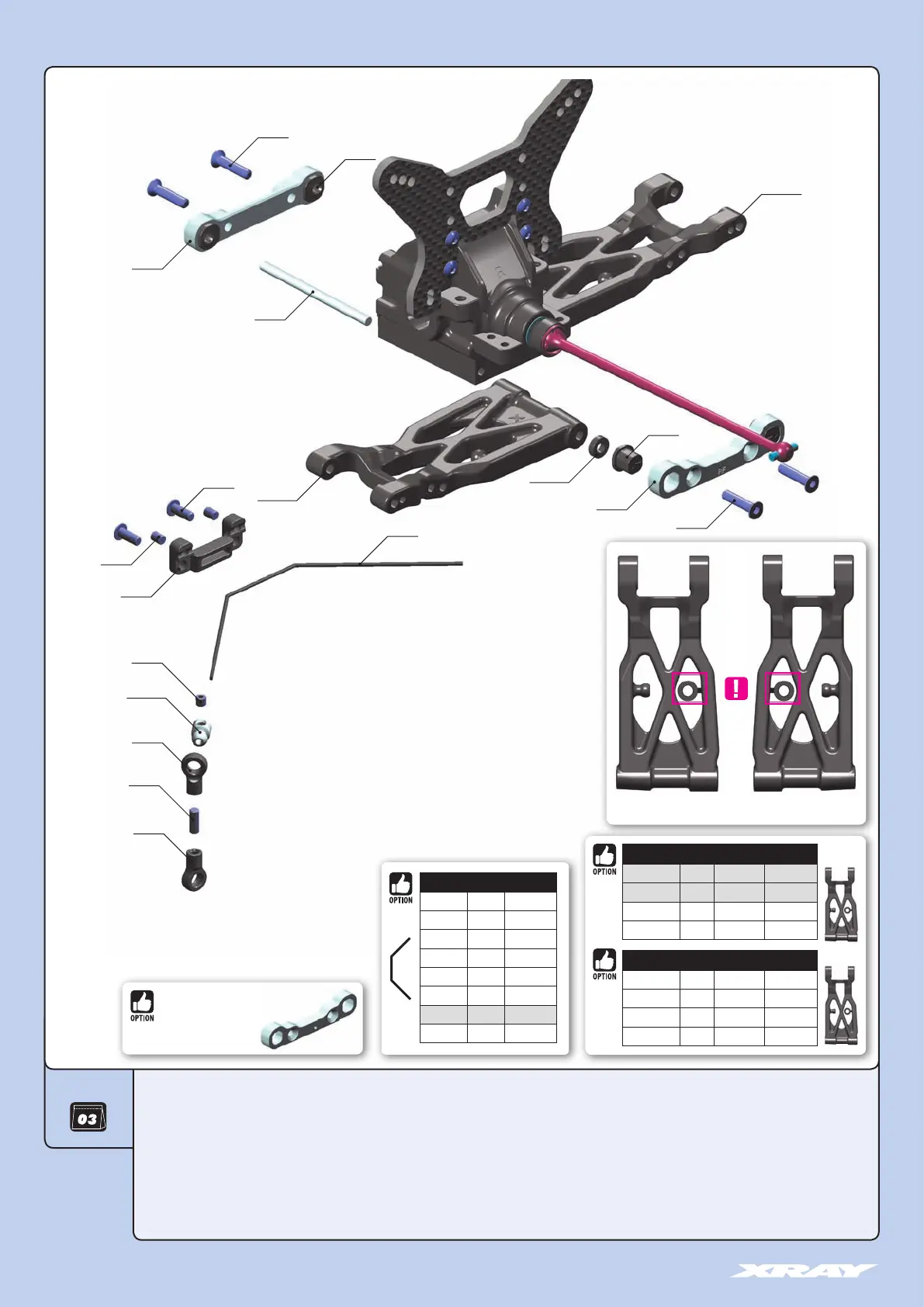

3. REAR SUSPENSION
363112-H
363112-H
363122-H
363324
367210
362315
362478
363315
903312
901304
362005
903312
362315
902308
363122-H
901303
303431-K
303454
901308
303454
303431-K ALU 4.9MM BALL END - BLACK (2)
303454 BALL JOINT 4.9MM - OPEN (4)
362005 DIFF BULKHEAD BLOCK SET REAR - NARROW
362315 ECCENTRIC BUSHING SET (2)
362478 ANTI-ROLL BAR 1.8 MM
363112-H COMPOSITE SUSPENSION ARM REAR LOWER RIGHT - HARD
363122-H COMPOSITE SUSPENSION ARM REAR LOWER LEFT - HARD
363315 ALU LOWER SUSP. HOLDER 1° REAR-FRONT - NARROW - 7075 T6
363324 ALU LOWER SUSP. HOLDER REAR-REAR - NARROW - 7075 T6
367210 SUSPENSION PIVOT PIN (2)
BAG
Remove the 3x6.5x2mm shim from each rear arm.
ANTI-ROLL BARS
#362470 1.0mm
OPTION
#362471 1.1mm OPTION
#362472 1.2mm OPTION
#362473 1.3mm OPTION
#362474 1.4mm OPTION
#362476 1.6mm OPTION
#362478 1.8mm INCLUDED
#362480 2.0mm OPTION
901303 HEX SCREW SB M3x3 (10)
901304 HEX SCREW SB M3x4 (10)
901308 HEX SCREW SB M3x8 (10)
902308 HEX SCREW SH M3x8 (10)
903312 HEX SCREW SFH M3x12 (10))
#363314
ALU LOWER SUSP.
HOLDER 3° REAR-FRONT
NARROW - 7075 T6
1-DOT
3°
SHORT REAR SUSPENSION ARM
#363112-H RIGHT HARD INCLUDED
#363122-H LEFT HARD INCLUDED
#363112-G RIGHT GRAPHITE OPTION
#363122-G LEFT GRAPHITE OPTION
LONG REAR SUSPENSION ARM
#363113-H RIGHT HARD OPTION
#363123-H LEFT HARD OPTION
#363113-G RIGHT GRAPHITE OPTION
#363123-G LEFT GRAPHITE OPTION
