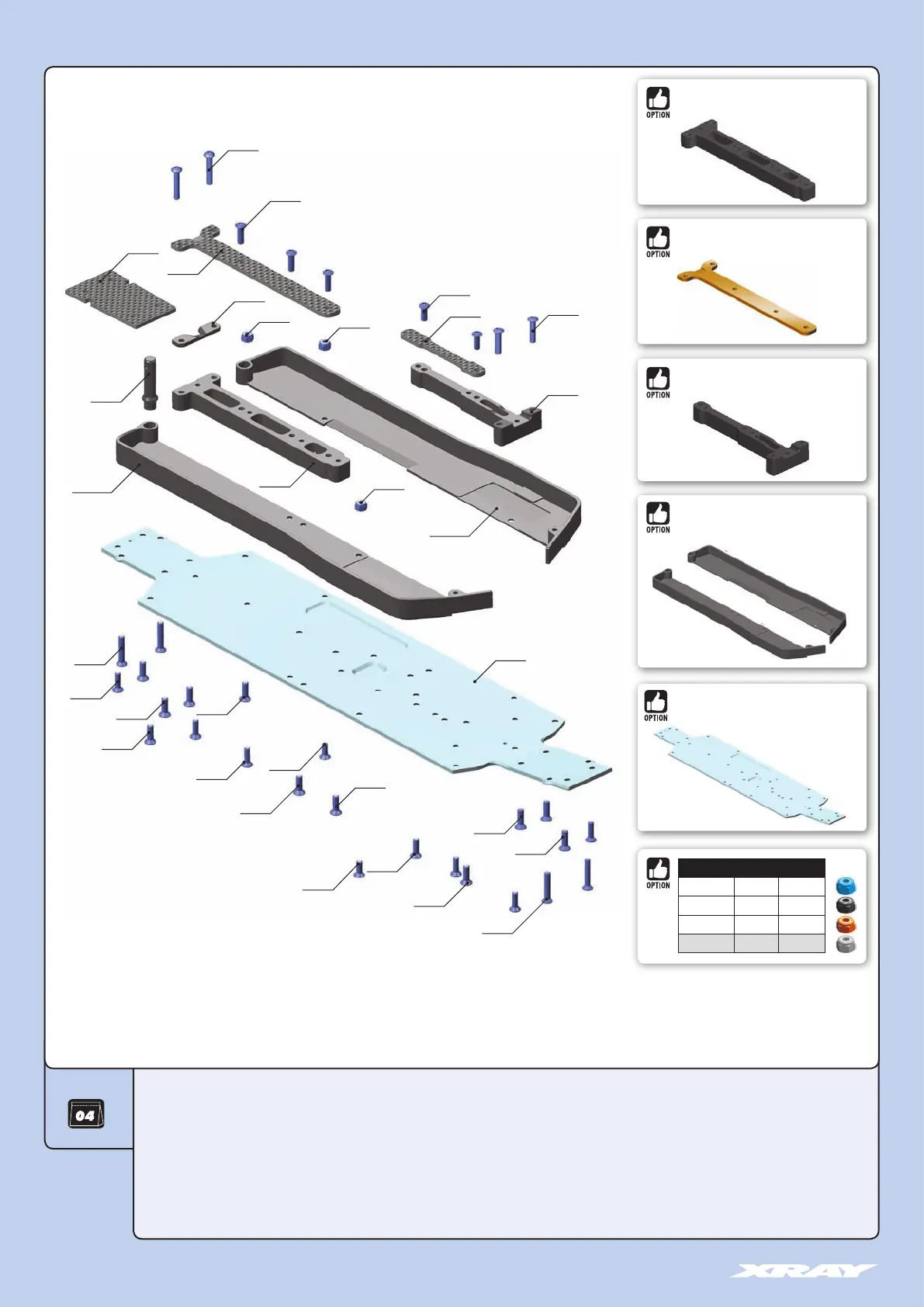

4. FRONT & REAR ASSEMBLY
BAG
361178 GRAPHITE CHASSIS BRACE UPPER DECK 2.0MM
361182 COMPOSITE REAR LOWER BRACE
361280 XB4’20 GRAPHITE REAR CHASSIS PLATE 2MM - NARROW
361296 COMPOSITE CHASSIS BRACE FRONT - HARD
361297 COMPOSITE CHASSIS BRACE REAR - HARD
361298 GRAPHITE CHASSIS WIRE COVER 2.0MM - V2
361320 BODY MOUNT, BATTERY MOUNT - V2 & WING SHIM (2)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
903310
903310
903310
903310
903310
903310
903312
903312
903310
903310
903316
903308
903308
361269-H
361297
903316
903314
361269-H
960030
960030
960030
361296
361182
361178
361320
361107
902312
902310
361280
902316
902316 HEX SCREW SH M3x16 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
903312 HEX SCREW SFH M3x12 (10)
903314 HEX SCREW SFH M3x14 (10)
903316 HEX SCREW SFH M3x16 (10)
960030 NUT M3 (10)
361107 ALU CHASSIS - SWISS 7075 T6 (2MM)
361269-H COMPOSITE CHASSIS SIDE GUARDS L+R - HARD
361298
902308
#361108
ALU CHASSIS - SWISS 7075 T6 (2.5MM)
#361269-M
COMPOSITE CHASSIS SIDE GUARDS
L+R - MEDIUM
#361294
COMPOSITE CHASSIS BRACE FRONT - MEDIUM
#361295
COMPOSITE CHASSIS BRACE REAR - MEDIUM
#361179
BRASS CHASSIS BRACE REAR (40g)
ALU NUTS M3
#296530-B BLUE OPTION
#296530-K BLACK OPTION
#296530-O ORANGE OPTION
#960031 SILVER INCLUDED
