Xray XB4 User Manual

15
Remove the 3x6.5x2mm shim from each front arm.

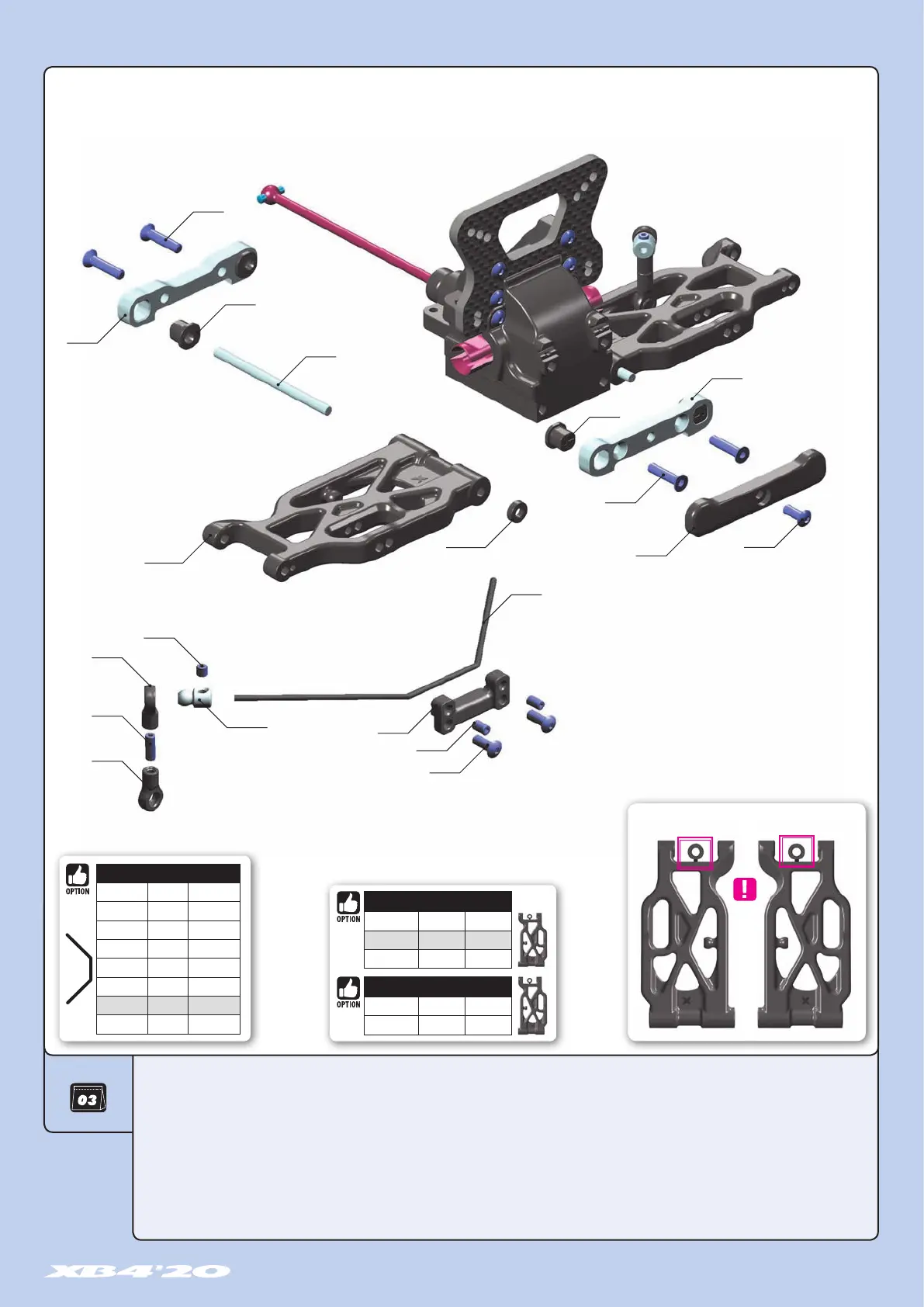

3. FRONT SUSPENSION
303431-K ALU 4.9MM BALL END - BLACK (2)
303454 BALL JOINT 4.9MM - OPEN (4)
361201 COMPOSITE FRONT BUMPER - ONE HOLE
362004 DIFF BULKHEAD BLOCK SET FRONT - NARROW
362112-H COMPOSITE SUSPENSION ARM FRONT LOWER - HARD
362312 ALU LOWER SUSP. HOLDER FRONT-FRONT - NARROW - 7075 T6
362315 ECCENTRIC BUSHING SET (2)
362322 ALU LOWER SUSP. HOLDER FRONT-REAR - NARROW - 7075 T6
362478 ANTI-ROLL BAR 1.8 MM
367210 SUSPENSION PIVOT PIN (2)
901303 HEX SCREW SB M3x3 (10)
901304 HEX SCREW SB M3x4 (10)
901308 HEX SCREW SB M3x8 (10)
902308 HEX SCREW SH M3x8 (10)
903312 HEX SCREW SFH M3x12 (10))
303431-K
362322
362315
362312
903312
361201
902308
362112-H
903312
367210
362112-H
901304
902308
362004
362315
303454
901308
303454
901303
BAG
ANTI-ROLL BARS
#362470 1.0mm
OPTION
#362471 1.1mm OPTION
#362472 1.2mm OPTION
#362473 1.3mm OPTION
#362474 1.4mm OPTION
#362476 1.6mm OPTION
#362478 1.8mm INCLUDED
#362480 2.0mm OPTION
362478
SHORT FRONT SUSPENSION ARM
#362112 MEDIUM OPTION
#362112-H HARD INCLUDED
#362112-G GRAPHITE OPTION
LONG FRONT SUSPENSION ARM
#362113-H HARD OPTION
#362113-G GRAPHITE OPTION
