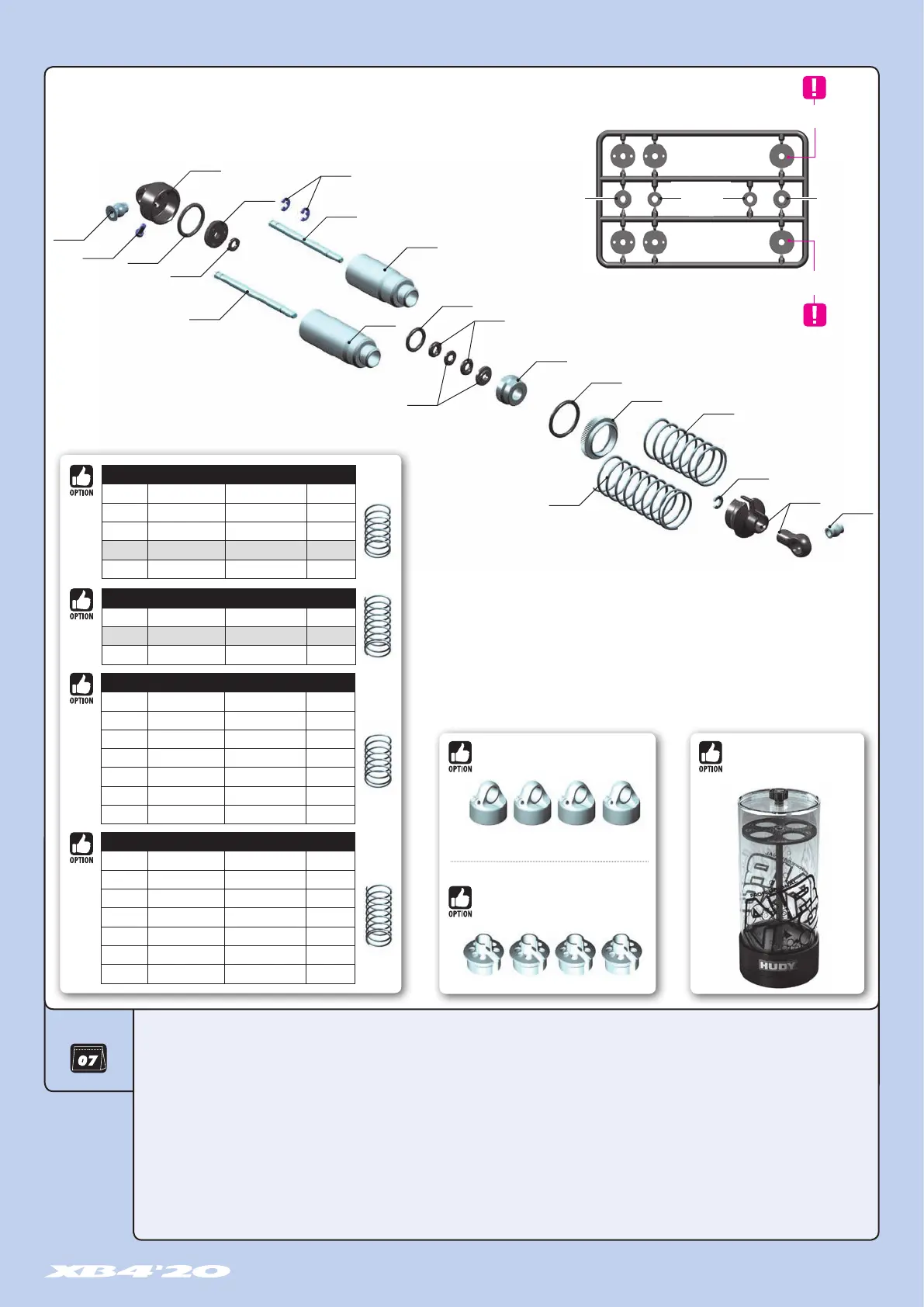

7. SHOCK ABSORBERS
368293
368040
368031
368220
368260
306219
(OPTION)
902205
970120
363240
352460
368010
368194
368042
970140
368140
970080
368120
368160
368031
368010
972031
965023
BAG
PISTONS DETAIL
2
holes
(1.6mm)
2 holes
(1.6mm)
2 holes
(1.7mm)
2 holes
(1.7mm)
0 holes (Create custom holes)
(0mm - use required drill pin)
0 holes (Create custom holes)
(0mm - use required drill pin)
These pistons can NOT
be used in shocks without
making the custom holes
by yourselves.
Thin Shim
Thick ShimThick Shim
#368051
ALU SHOCK CAP-NUT WITH VENT HOLE (2)
#368021
ALU SHOCK SPRING RETAINING COLLAR (4)
306219 COMPOSITE SET OF SERVO SHIMS (4)
352460 PIVOT BALL 5.8 - V3 (10)
363240 BALL UNIVERSAL 5.8MM WITH BACKSTOP (2)
368010 COMPOSITE SHOCK PARTS
368031 SHOCK PISTONS - COMPLETE SET - DERLIN - V2
368040 ALU SHOCK ADJUSTABLE NUT (2)
368042 COMPOSITE SHOCK BUSHING & SHIM FOR ALU CAP (2+2)
368100 FRONT SHOCK ABSORBERS COMPLETE SET (2)
368120 ALU FRONT SHOCK BODY - HARD COATED (2)
368140 ALU LOWER SHOCK BODY CAP (2)
368160 FRONT HARDENED SHOCK SHAFT (2)
368194 FRONT SPRING SET L=42MM (4 DOTS) (2)
368200 REAR SHOCK ABSORBERS COMPLETE SET (2)
368220 ALU REAR SHOCK BODY - HARD COATED (2)
368260 REAR HARDENED SHOCK SHAFT (2)
368293 REAR SPRING SET L=57MM (3 DOTS) (2)
902205 HEX SCREW SH M2x5 (10)
965023 E-CLIP 2.3 (10)
970080 O-RING 8x1 (10)
970120 O-RING 12 x 1.0 (10)
970140 O-RING 14 x 1.5 (10)
972031 SILICONE O-RING 3x2.1 (10)
#104004
HUDY AIR VAC - VACUUM PUMP
- 1/10 OFF-ROAD
FRONT SPRINGS
#368174 PROGRESS. 45mm 2 STRIPES OPTION
#368175 PROGRESS. 40mm 3 DOTS OPTION
#368182 LINEAR 45mm 1 STRIPE & 3 DOTS OPTION
#368183 LINEAR 45mm 1 DOT OPTION
#368184 LINEAR 45mm 2 DOTS OPTION
#368185 LINEAR 45mm 3 DOTS INCLUDED
#368186 LINEAR 45mm 4 DOTS OPTION
REAR SPRINGS
#368273 PROGRESS. 60mm 2 STRIPES OPTION
#368275 PROGRESS. 55mm 2 DOTS OPTION
#368283 LINEAR 63mm 1 STRIPE & 3 DOTS OPTION
#368284 LINEAR 60mm 1 DOT OPTION
#368285 LINEAR 60mm 2 DOTS INCLUDED
#368286 LINEAR 60mm 3 DOTS OPTION
#368287 LINEAR 60mm 4 DOTS OPTION
FRONT SPRINGS
#368191 LINEAR 42mm 1 DOTS OPTION
#368192 LINEAR 42mm 2 DOTS OPTION
#368193 LINEAR 42mm 3 DOTS OPTION
#368194 LINEAR 42mm 4 DOTS OPTION
#368195 LINEAR 42mm 5 DOTS OPTION
REAR SPRINGS
#368292 LINEAR 57mm 2 DOTS OPTION
#368293 LINEAR 57mm 3 DOTS OPTION
#368294 LINEAR 57mm 4 DOTS OPTION
