1. Fasten the pump:
a) Bolt the stationary suction connection to the concrete base.
b) Bolt the pump to the suction connection.
2. Make sure that the pump is vertical for the T-installation or horizontal for the Z-
installation.
3. Connect the suction line and discharge line.
4. Connect the motor cable and the starter and monitoring equipment according to the
separate instructions.
Make sure that the impeller rotation is correct. For more information, see Check the
impeller rotation on page 39.
5. Make sure that the weight of the pump does not put strain on the piping.
4.6 Install with F-installation
In the F-installation, the pump is free standing and installed primarily in a small sump on a
firm surface. The pump is intended to operate completely or partially submerged in the
pumped liquid. The pump is equipped with a connection for hose or pipe and with
supporting legs and/or a strainer. These requirements and instructions are for F-
installations that comply to the dimensional drawing.

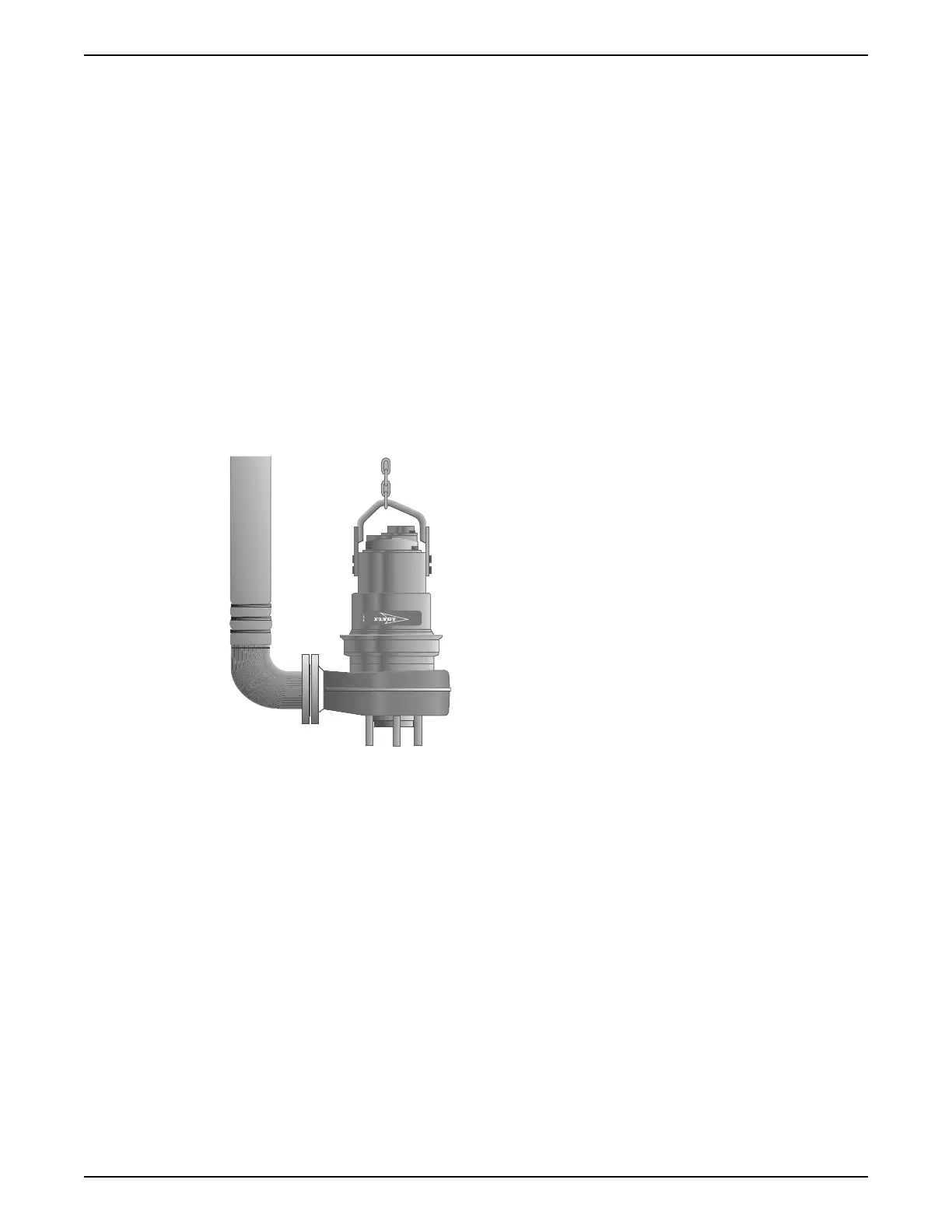

Figure 11: F-installation
These items are required:
• Nipple pipe/Flange/Coupling
• Pipe or hose
1. Run the cable so that is has no sharp bends, is not pinched, and cannot be sucked into
the pump inlet.
2. Fit the nipple pipe/flange/coupling.
3. Lower the pump into the sump.
4. Place the pump on the sump bottom and make sure it cannot fall over.
5. Connect the motor cable and the starter and monitoring equipment according to the
separate instructions.
Make sure that the impeller rotation is correct. For more information, see Check the
impeller rotation on page 39.
4 Installation
Flygt 3102 Installation, Operation, and Maintenance Manual 23
