WARNING: Electrical Hazard
If the power cable is jerked loose, then the ground (earth) conductor must be the last
conductor to come loose from its terminal. Make sure that the ground (earth) conductor is
longer than the phase conductors at both ends of the cable.
WARNING: Electrical Hazard
Risk of electrical shock or burn. You must connect an additional ground- (earth-) fault
protection device to the grounded (earthed) connectors if persons are likely to come into
contact with liquids that are also in contact with the pump or pumped liquid.
4.9.3 Prepare the SUBCAB
™
cables
This section applies to SUBCAB
™
cables with twisted-pair control conductors.

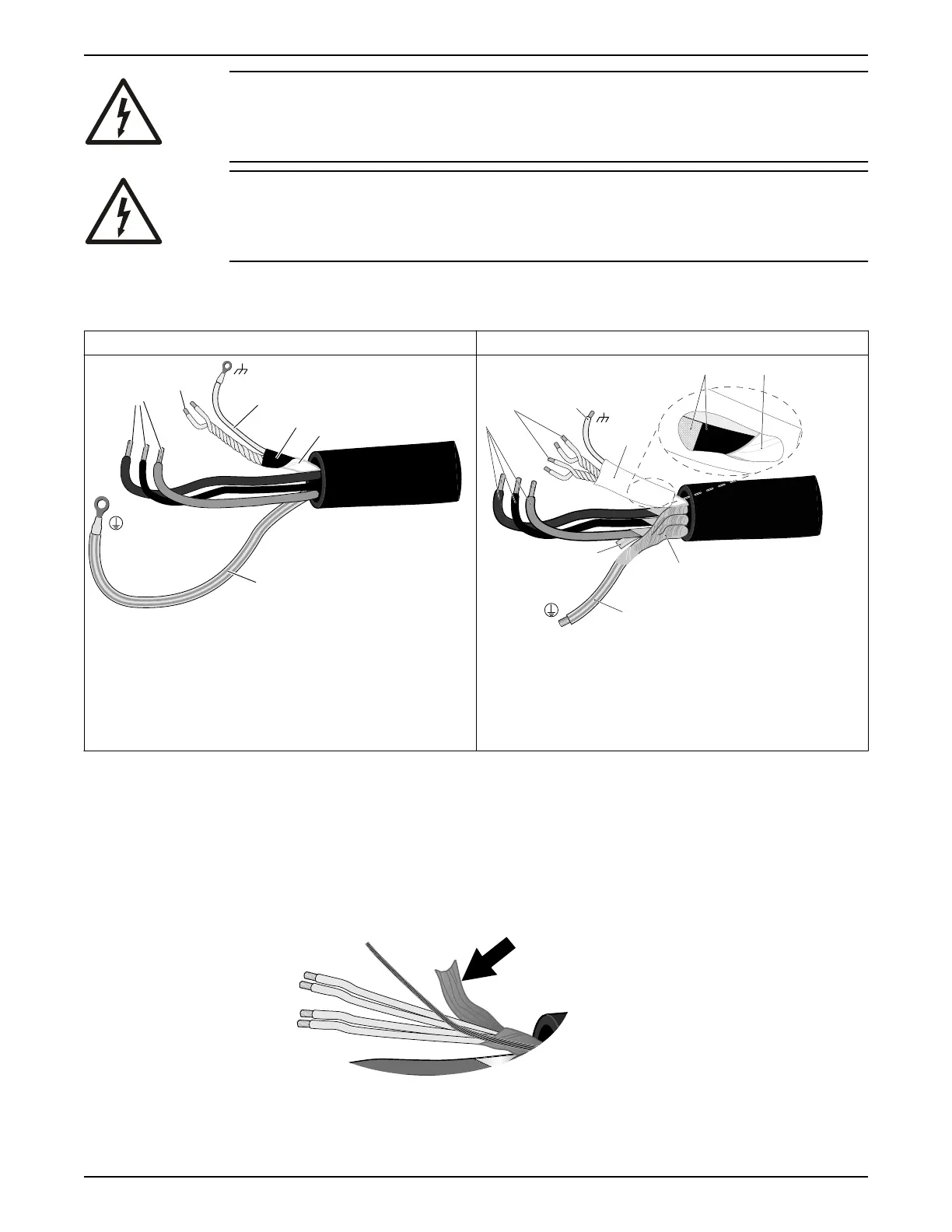

The prepared SUBCAB
™
cable The prepared screened SUBCAB
™
cable, without cable lugs
SUBCAB 1000V
T
1
T
2
1
2
3
4
5
6
WS004299E
1. T1+T2 twisted pairs in control element
2. Drain wire in control element (tinned copper strands) with shrink tube
3. Aluminum and textile layers
4. Insulation jacket or plastic jacket, for the control element
5. Power conductors
6. Ground (earth) conductor with yellow-green shrink tube
WS004298F
Screened SUBCAB
1
5
6
7
8
2
9
3 4
1. T1+T2 and T3+T4 twisted pairs in control element
2. Drain wire in control element (tinned copper strands) with shrink tube
3. Aluminum and textile layers
4. Insulation jacket or plastic jacket, for the control element
5. Power conductors
6. Plastic laminated aluminum foil, screen
7. Ground (earth) conductor with yellow-green shrink tube
8. Uncovered screen/braided wire
9. shrink tube
1. Peel off the outer jacket at the end of the cable.
2. Prepare the control element:
a) Peel the insulation jacket or plastic jacket.
b) Peel the aluminum and textile layers.
The aluminum foil is a conductive screen. Do not peel more than necessary, and
remove the peeled foil.
Figure 14: Aluminum foil on the control element.
c) Put a white shrink tube over the drain wire.
4 Installation
28 Flygt 3102 Installation, Operation, and Maintenance Manual
