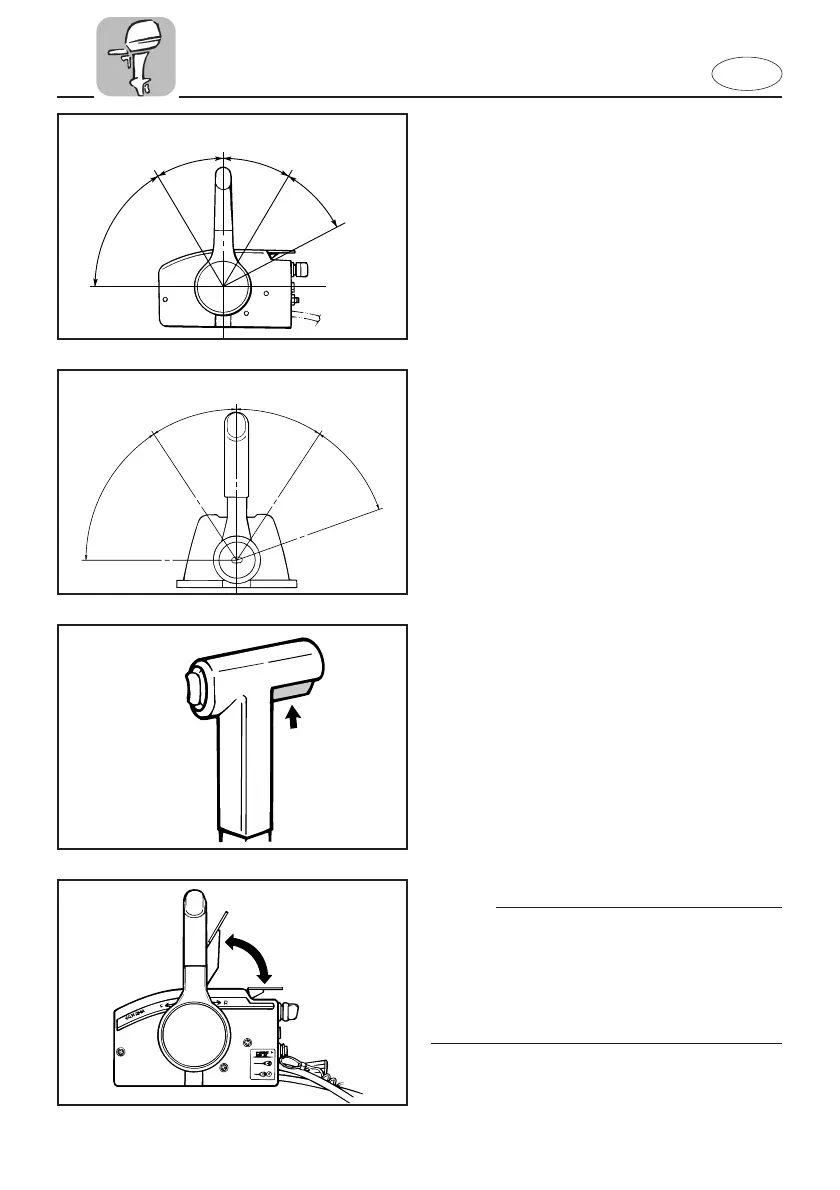

Neutral interlock trigger
To shift out of Neutral, the neutral inter-
lock trigger of the remote control lever
must first be pulled up.
2-3
GB
702032
q
w
e
rr
tty
y
u
u
701034**
UP
DN
N
701033*
q
w
EMC50010*
Remote control lever
Moving the lever forward from the Neu-
tral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever farther opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
EMC50210
Neutral throttle lever
To open the throttle without shifting into
either Forward or Reverse, place the
remote control lever in the Neutral posi-
tion and lift the neutral throttle lever.
NOTE:
The neutral throttle lever will operate only
when the remote control lever is in Neu-
tral. The remote control lever will operate
only when the neutral throttle lever is in
the closed position.
1 Fully open
2 Fully closed
