INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00161

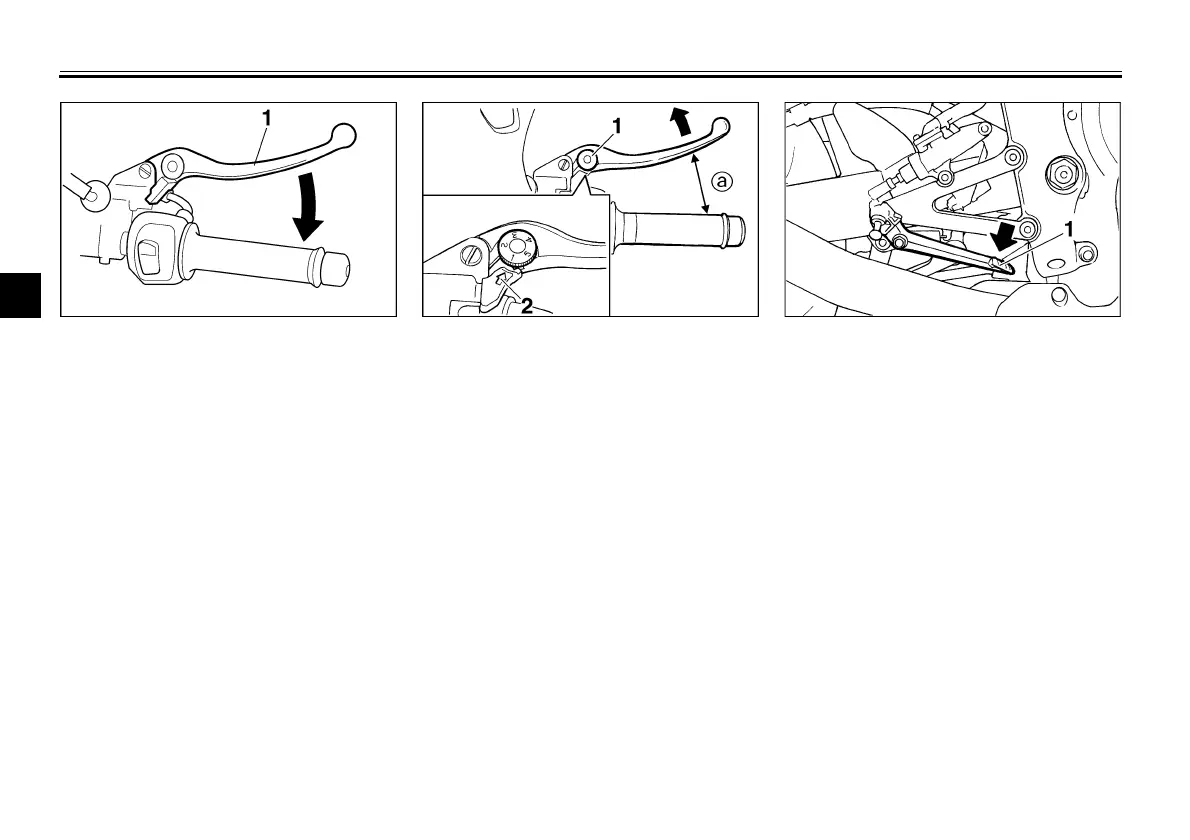

Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the arrow mark on
the brake lever.
EAU00162
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever 1. Brake lever position adjusting dial
2. Arrow mark
a. Distance between brake lever and handlebar
grip
1. Brake pedal
E_5mt.book Page 9 Thursday, October 5, 2000 3:24 PM
