PERIODIC MAINTENANCE AND MINOR REPAIR
6-43
6
EAU01617
Front wheel
To remove the front wheel
EW000122
WARNING
@
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motor-
cycle so that there is no danger
of it falling over.
@
1. Loosen the front wheel axle pinch
bolt, then the brake caliper bolts.
2. Loosen the wheel axle with a
19-mm hexagon wrench.
3. Lift the front wheel off the ground
according to the procedure on
page 6-42.
4. Remove the brake hose holders
by removing the bolts.
5. Remove the brake calipers by re-
moving the bolts.
6. Pull the wheel axle out, and then
remove the wheel.
ECA00046
CAUTION:
@
Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut.
@
EAU01638
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Push down hard on the handlebar
several times to check for proper
fork operation.
5. Install the brake calipers by install-
ing the bolts.
@
Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.
@
6. Install the brake hose holders by
installing the bolts.
7. Install the front wheel axle pinch
bolt, and then tighten the wheel
axle, pinch bolt and brake caliper
bolts to the specified torques.

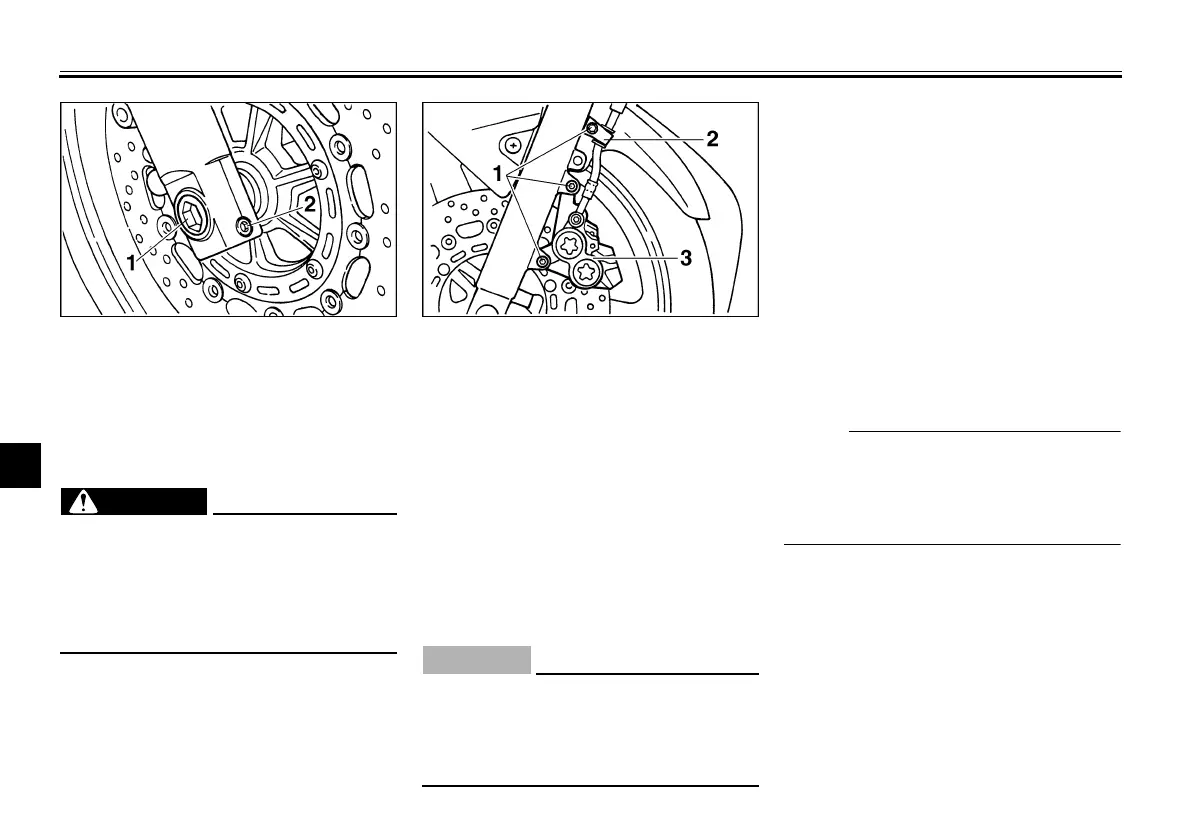

1. Wheel axle
2. Front wheel axle pinch bolt
1. Bolt (× 3)
2. Brake hose holder
3. Front brake caliper
