PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU01139
Removing and installing
cowlings and panels
The cowlings and panels shown above
need to be removed to perform some
of the maintenance jobs described in
this chapter. Refer to this section each
time a cowling or panel needs to be re-
moved and installed.
EAU01602
Cowlings A and B
To remove one of the cowlings
Remove the screws, slide the cowling
forward (for A) or backward (for B), and
then pull it off as shown.

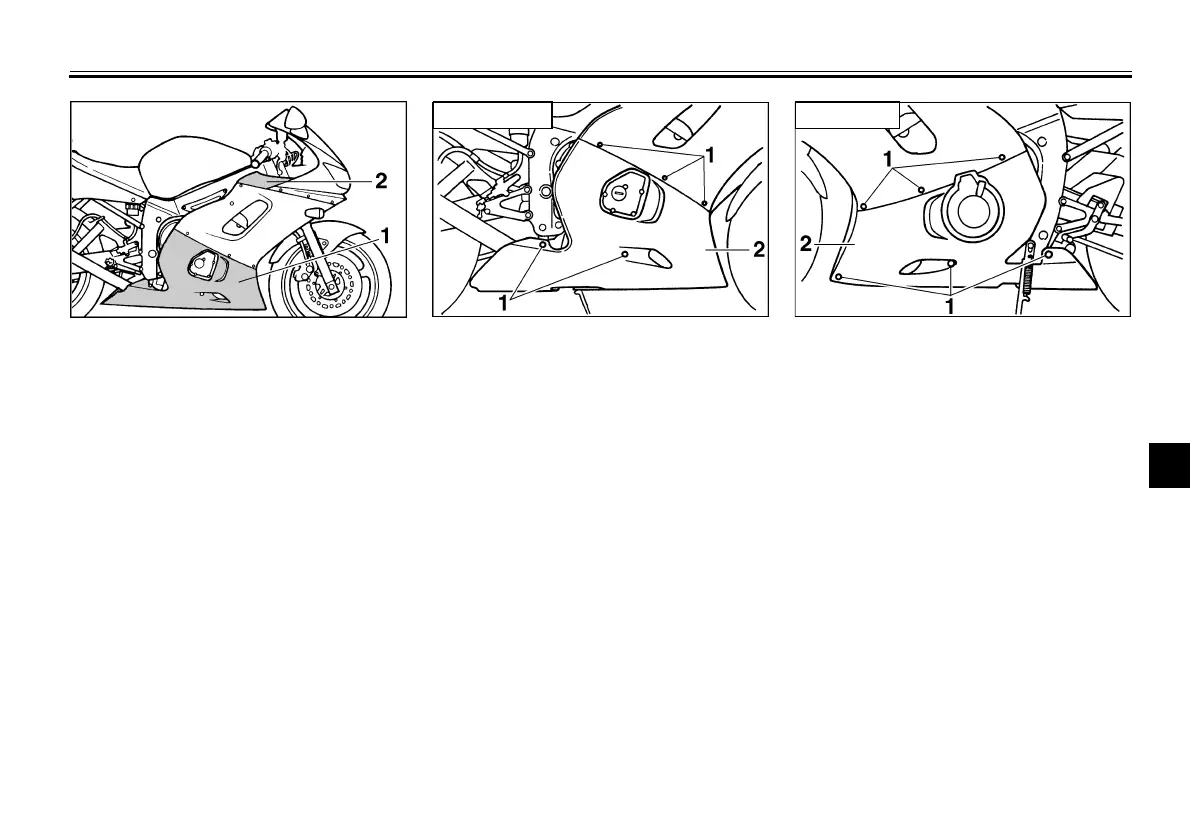

1. Cowling A (right side)
Cowling B (left side)
2. Panel C
1. Screw (× 5)
2. Cowling A
Right side
1. Screw (× 6)
2. Cowling B
