DESCRIPTI
ON
2-2
2
EAU10420

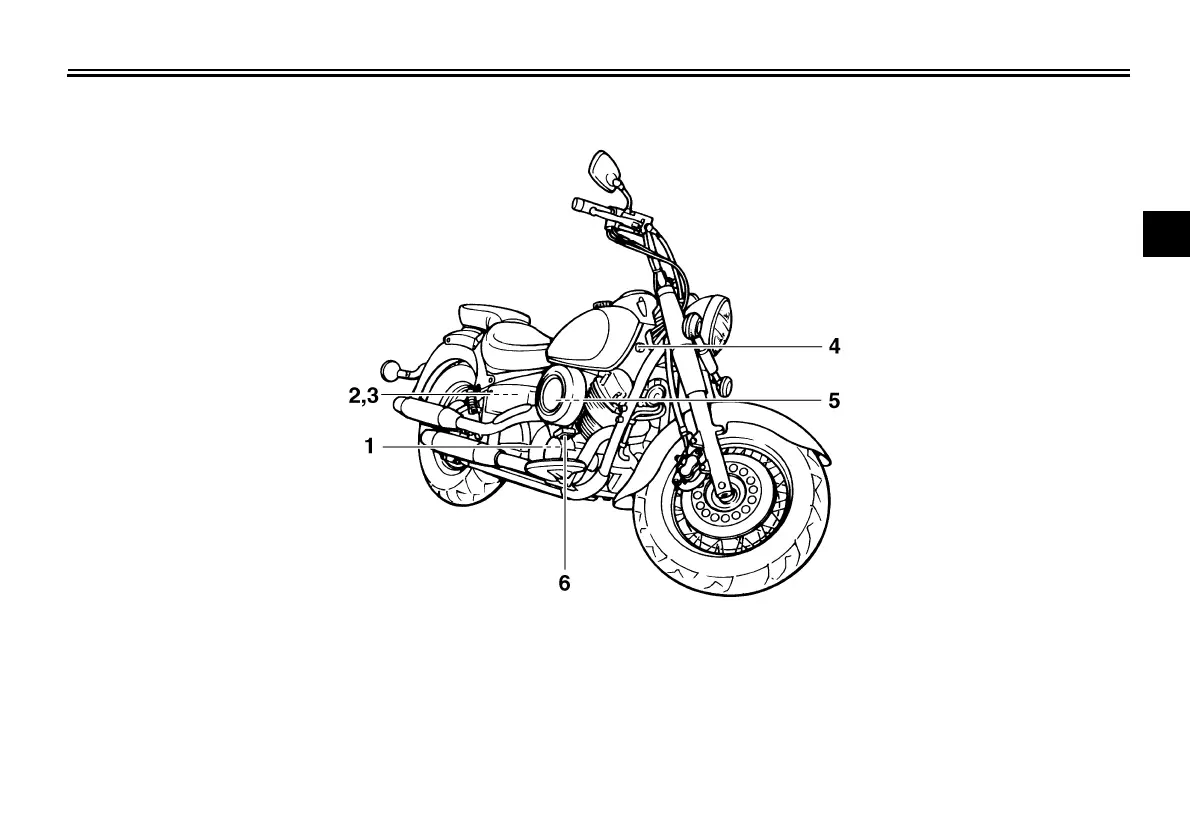

Right view
1.
Engine oil fi
lt
er element (page 6-7)
2.
Battery (page 6-27)
3.
Fuses (page 6-28)
4.
Main s
witch/steer
ing lock
(page 3-2)
5.
Air filt
er element (page 6-11)
6.
Brak
e pedal (page 3-8)
U3B
720E
0.
b
ook
Page 2
Fr
iday,
Apr
il 15,
2005
1:34 PM
14
16
Table of Contents
Default Chapter
4
Important Manual Information
4
Table of Contents
6
Safety Information
8
Location of Important Labels
12
Description
14
Left View
14
Right View
15
Controls and Instruments
16
Instrument and Control Functions
17
Immobilizer System (XVS650A)
17
Main Switch/Steering Lock (XVS650)
18
Main Switch/Steering Lock (XVS650A)
18
Indicator and Warning Lights
20
Speedometer Unit
21
Handlebar Switches
21
Clutch Lever
23
Shift Pedal (XVS650)
23
Shift Pedal (XVS650A)
23
Brake Lever
24
Brake Pedal
24
Fuel Tank Cap
24
Fuel
25
Fuel Cock
26
Starter (Choke) Knob
27
Seats (XVS650)
27
Seats (XVS650A)
28
Helmet Holder
30
Storage Compartment
30
Adjusting the Shock Absorber Assembly
31
Luggage Strap Holders
32
Sidestand
32
Ignition Circuit Cut-Off System
33
Pre-Operation Checks
35
Pre-Operation Check List
36
Operation and Important Riding Points
38
Starting and Warming up a Cold Engine
38
Starting a Warm Engine
39
Shifting
40
Tips for Reducing Fuel Consumption
41
Engine Break-In
41
Parking
42
Periodic Maintenance and Minor Repair
43
Owner's Tool Kit
43
Periodic Maintenance and Lubrication Chart
44
Removing and Installing Panels
47
Checking the Spark Plugs
48
Engine Oil and Oil Filter Element
49
Final Gear Oil
52
Cleaning the Air Filter Element
53
Adjusting the Carburetors
55
Adjusting the Engine Idling Speed
55
Checking the Throttle Cable Free Play
56
Valve Clearance
56
Tires
56
Spoke Wheels
59
Adjusting the Clutch Lever Free Play
59
Adjusting the Brake Lever Free Play
60
Adjusting the Brake Pedal Position and Free Play
61
Adjusting the Rear Brake Light Switch
62
Checking the Front Brake Pads and Rear Brake Shoes
63
Checking the Front Brake Fluid Level
63
Changing the Brake Fluid
64
Checking and Lubricating the Cables
65
Checking and Lubricating the Throttle Grip and Cable
65
Checking and Lubricating the Brake and Shift Pedals
65
Checking and Lubricating the Brake and Clutch Levers
66
Checking and Lubricating the Sidestand
67
Checking the Front Fork
67
Checking the Steering
68
Checking the Wheel Bearings
68
Battery
69
Replacing the Fuses
70
Replacing the Headlight Bulb
71
Replacing a Turn Signal Light Bulb or the Tail/Brake Light Bulb
72
Replacing the Auxiliary Light Bulb (XVS650A)
73
Supporting the Motorcycle
74
Front Wheel
74
Rear Wheel
76
Troubleshooting
77
Troubleshooting Chart
78
Motorcycle Care and Storage
79
Care
79
Storage
81
Specifications
83
Consumer Information
86
Identification Numbers
86
Motorcycle Noise Regulation (for Australia)
87
