INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the passenger seat hold-
er by removing its bolts, and then
pull the rider seat up.
To install the rider seat
1. Insert the projection on the front of
the rider seat into the seat holder
as shown, and then place the seat
in the original position.
2. Install the passenger seat holder
by installing its bolts.
3. Install the passenger seat.
NOTE:
Make sure that the seats are properly
secured before riding.
EAU14191
Seats (XVS650A)
Passenger seat
To remove the passenger seat
Remove the nut and washer, and then
pull the passenger seat up.
To install the passenger seat
1. Insert the projections on the front
of the passenger seat into the
holders as shown and place the
seat in the original position.
2. Install the washer and nut, and
then tighten the nut to the specified
torque.
Tightening torque:
Passenger seat nut:
7.0 Nm (0.7 m·kgf, 5.1 ft·lbf)

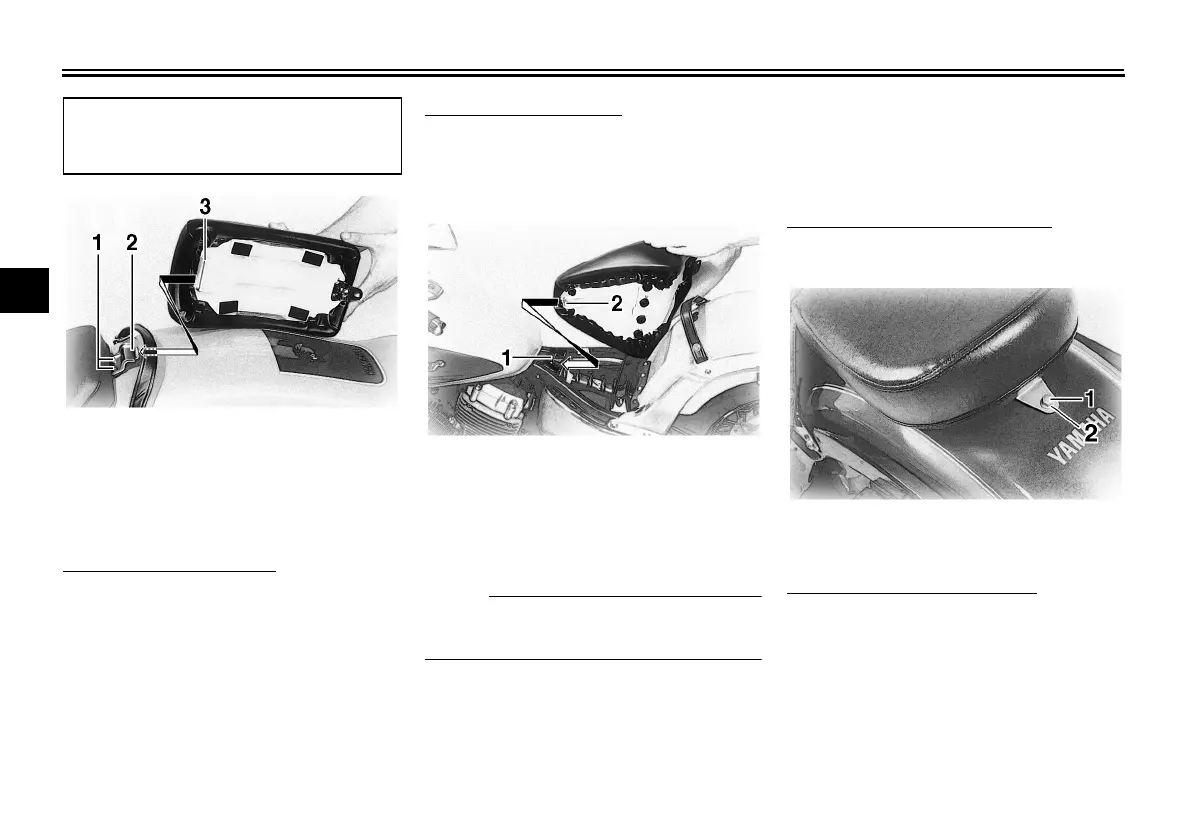

1. Bolt
2. Seat holder
3. Projection
1. Seat holder
2. Projection
1. Nut
2. Washer
U3B720E0.book Page 12 Friday, April 15, 2005 1:34 PM
