PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23780

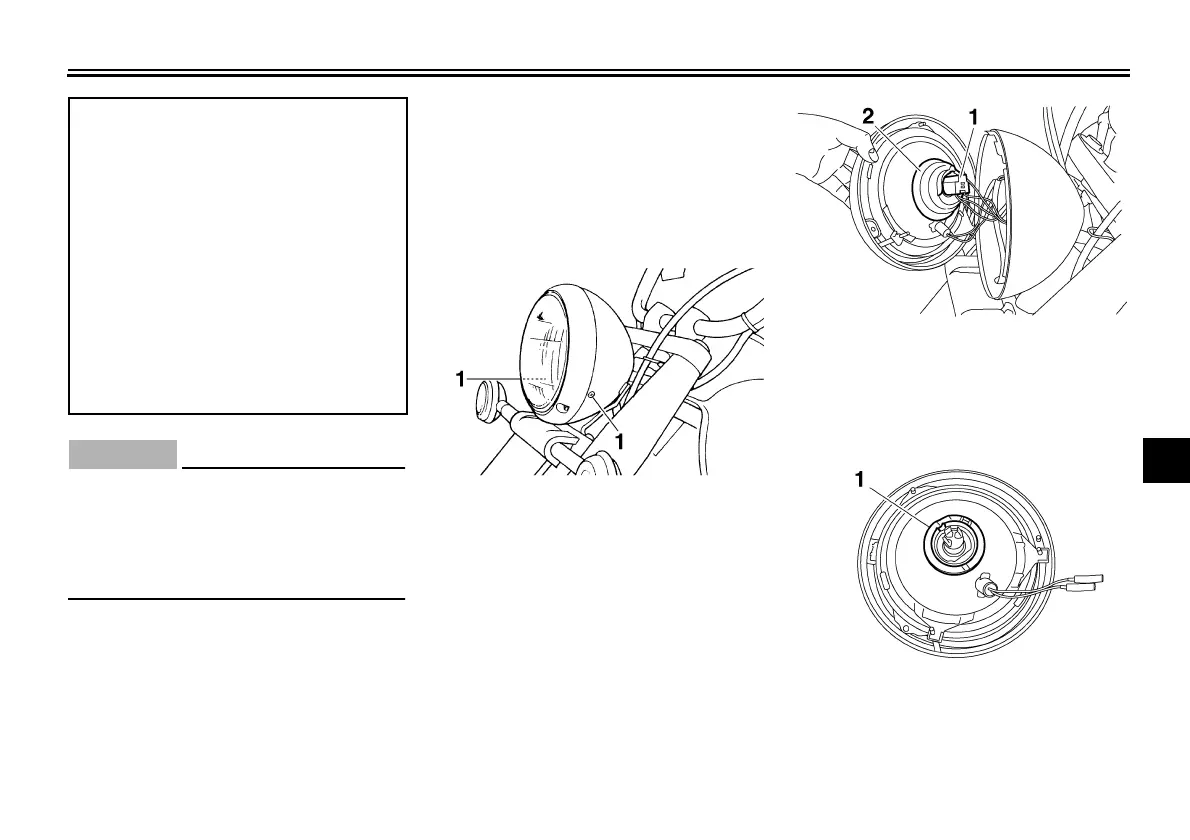

Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
Specified fuses:
Main fuse:
30.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Headlight fuse:
15.0 A
Carburetor heater fuse:
15.0 A
Backup fuse:
XVS650A 10.0 A
Parking lighting fuse:
XVS650A 10.0 A
1. Screw
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
U3B720E0.book Page 29 Friday, April 15, 2005 1:34 PM
