PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
EAU25080
Rear wheel
EAU25141
To remove the rear wheel
WARNING
EWA10820
● It is advisable to have a Yamaha
dealer service the wheel.
● Securely support the motor-
cycle so that there is no danger
of it falling over.
1. Loosen the axle nut.
2. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the bolt and nut.
3. Loosen the brake torque rod nut at
the swingarm.
4. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.
5. Remove panel A. (See page 6-5.)
6. Remove the bolts that secure the
final gear case to the swingarm.
7. Lift the rear wheel off the ground
according to the procedure on
page 6-32.
8. While supporting the drive shaft,
pull the rear wheel back to remove
the following parts as an assem-
bly: wheel, wheel axle, final gear
case, and drive shaft.
NOTE:
Make sure to support the drive shaft as
it is being pulled out.

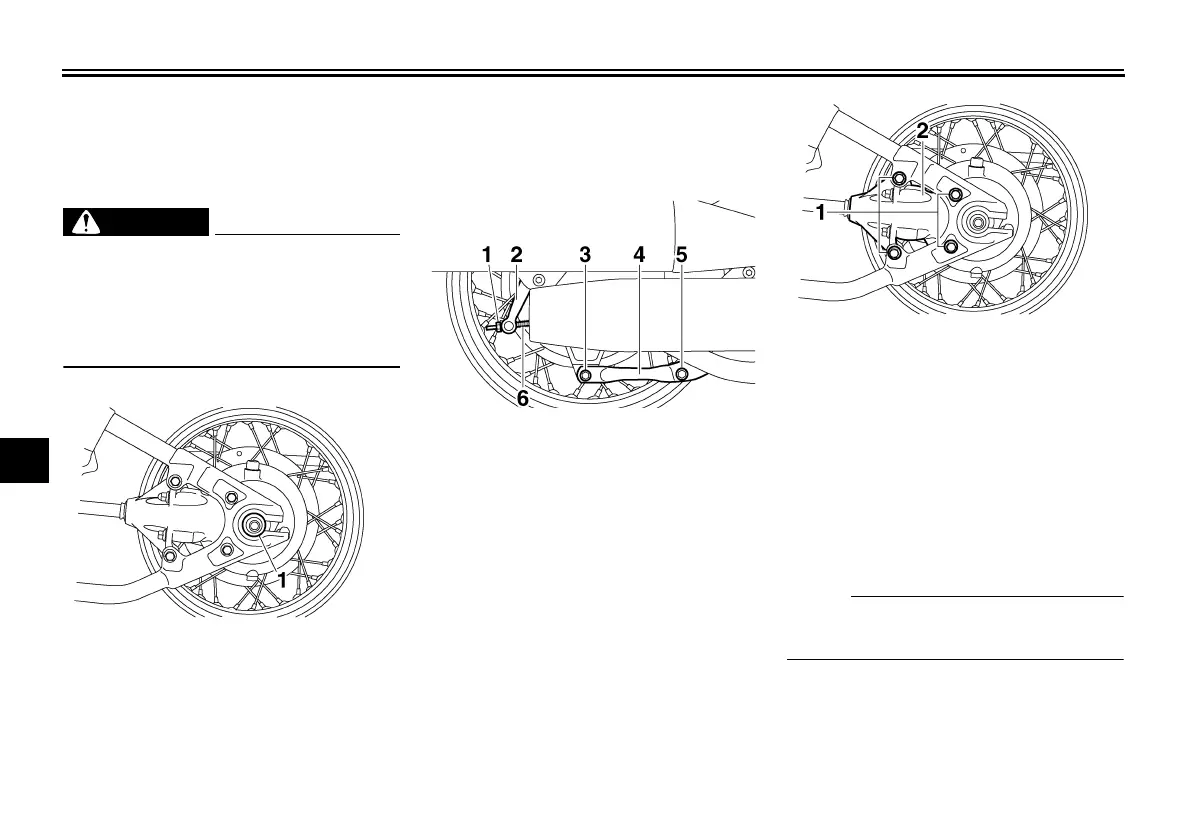

1. Axle nut
1. Brake pedal free play adjusting nut
2. Brake camshaft lever
3. Bolt and nut (shoe plate)
4. Brake torque rod
5. Bolt and nut (swingarm)
6. Brake rod
1. Bolt
2. Final gear case
U3B720E0.book Page 34 Friday, April 15, 2005 1:34 PM
