Yamaha 2A User Manual

2-1
E
EMU01206
MAIN COMPONENTS
101221
y
r
t
!0
o
i
u
q
w
e
!7
!6
!5
!1
!2
!3
!4
101222

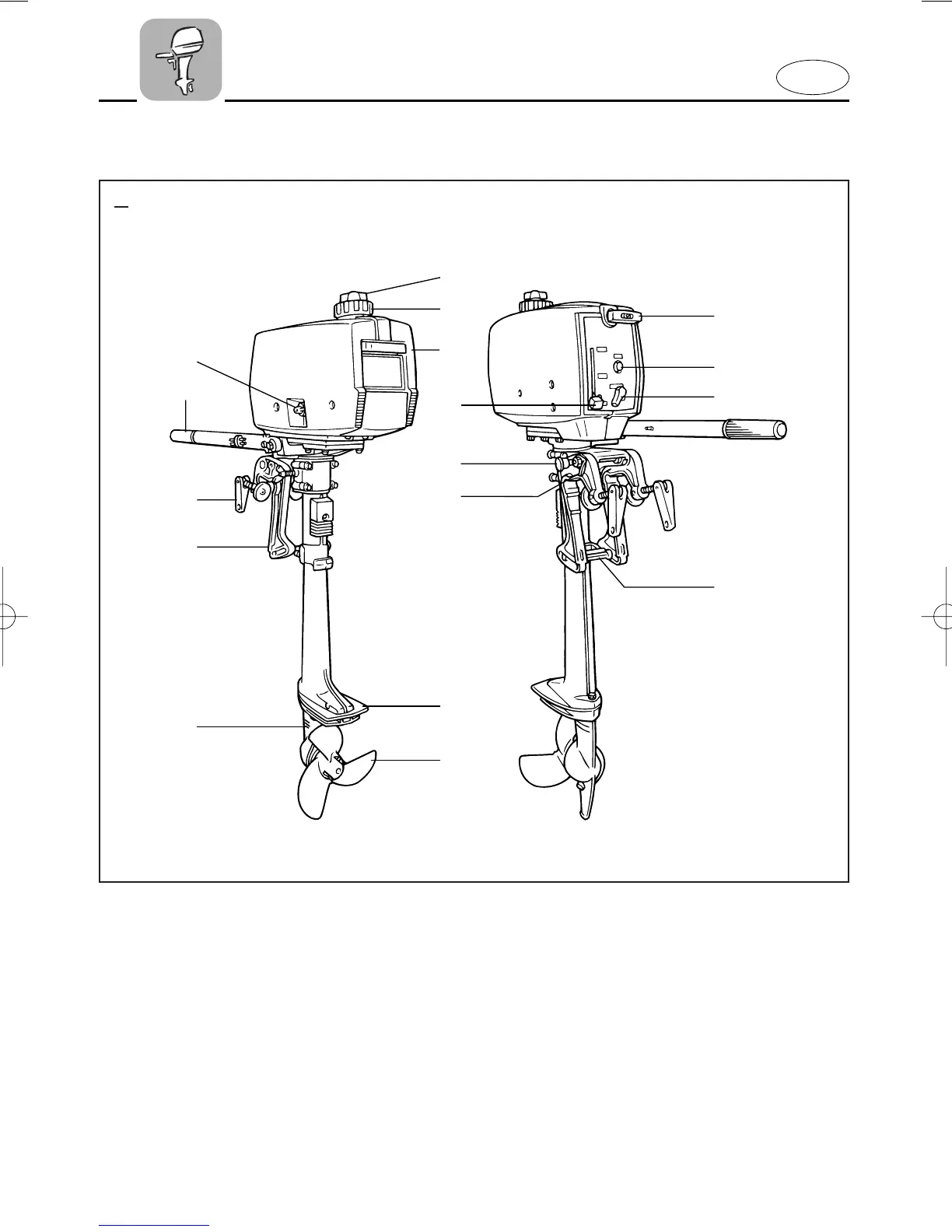

1 Air-vent screw
2 Fuel tank cap
3 Top cowling
4 Anti-cavitation plate
5 Propeller
6 Cooling water inlet
7 Clamp bracket
8 Transom clamp handle
9 Tiller handle
0 Fuel cock
q Recoil starter handle
w Engine stop button
e Choke knob
r Trim angle adjusting-rod
t Rope attachment
y Tilt support knob
u Throttle control lever
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
2
6A1-9-1L 2 4/20/01 12:00 PM Page 2

Yamaha 2A Specifications

General

Engine Type	2-Stroke
Mixing Ratio	50:1
Starting System	Manual
Full Throttle RPM Range	4500 - 5500 rpm
Fuel Type	Gasoline
Oil Type	2-stroke oil
Gear Ratio	2.08:1
Gear Shift	F
Shaft Length	S
