2-9
E
204033
502015
EMC64110

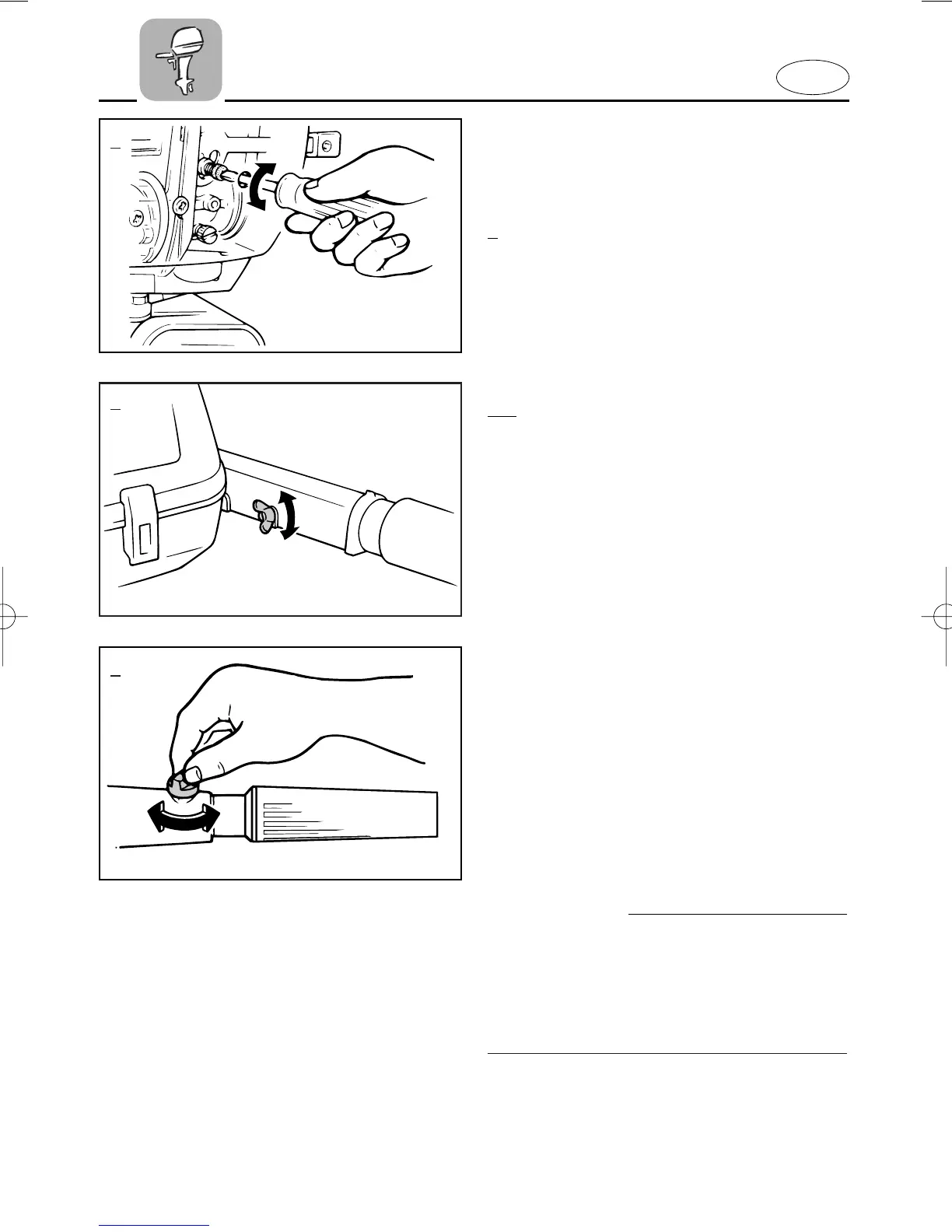

THROTTLE FRICTION
ADJUSTMENT
(for Tiller control model)
2
A friction device provides resistance to
movement of the throttle lever. This is
adjustable for operator preference. An
adjusting screw is located within the
aprons.
3/5
A friction device in the tiller handle pro-
vides resistance to movement of the
throttle grip. This is adjustable for oper-
ator preference. An adjusting
screw/knob is located within the steering
handle.
To increase the resistance:
Turn the adjusting screw/knob clock-
wise.
To decrease the resistance:
Turn the adjusting screw/knob counter-
clockwise.
When constant speed is desired, tighten
the adjusting screw/knob to maintain the
desired throttle setting.
w
Do not overtighten the friction adjusting
screw/knob. If there is too much resis-
tance, it may be difficult to move throt-
tle lever/grip, which could result in an
accident.
2
3
5
6A1-9-1L 2 4/20/01 12:00 PM Page 10
