GB
2-5
EMC40610

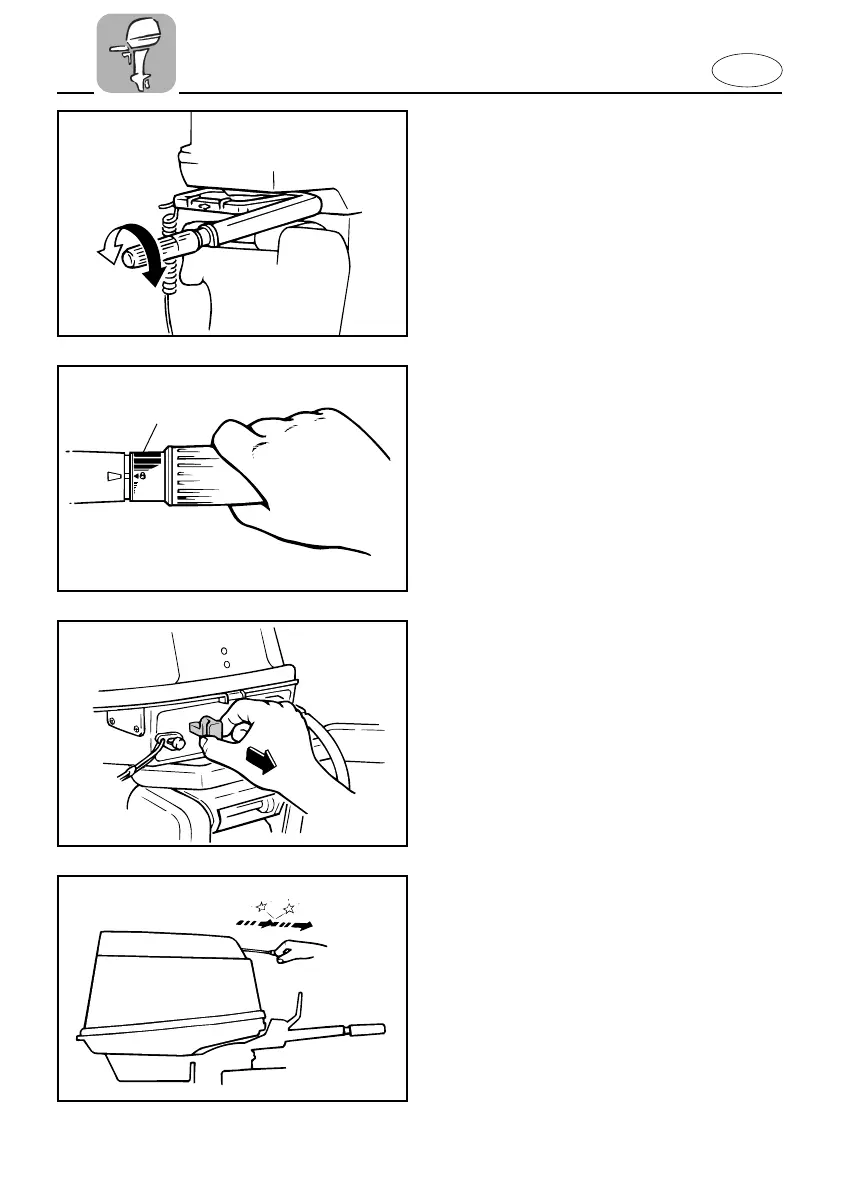

THROTTLE CONTROL GRIP (for Tiller
control model)
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
EMU00057
CHOKE KNOB
Pulling out this knob (setting it to ON)
supplies a rich mixture required to start
the engine.
503013*
q
305014
Throttle indicator:
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicator
EMC44010-X
RECOIL STARTER HANDLE
(If equipped)
Pull the handle gently until resistance is
felt. Then vigorously pull the handle
straight out to crank the engine to start it.
