GB
2-7
412011*
EMD00010

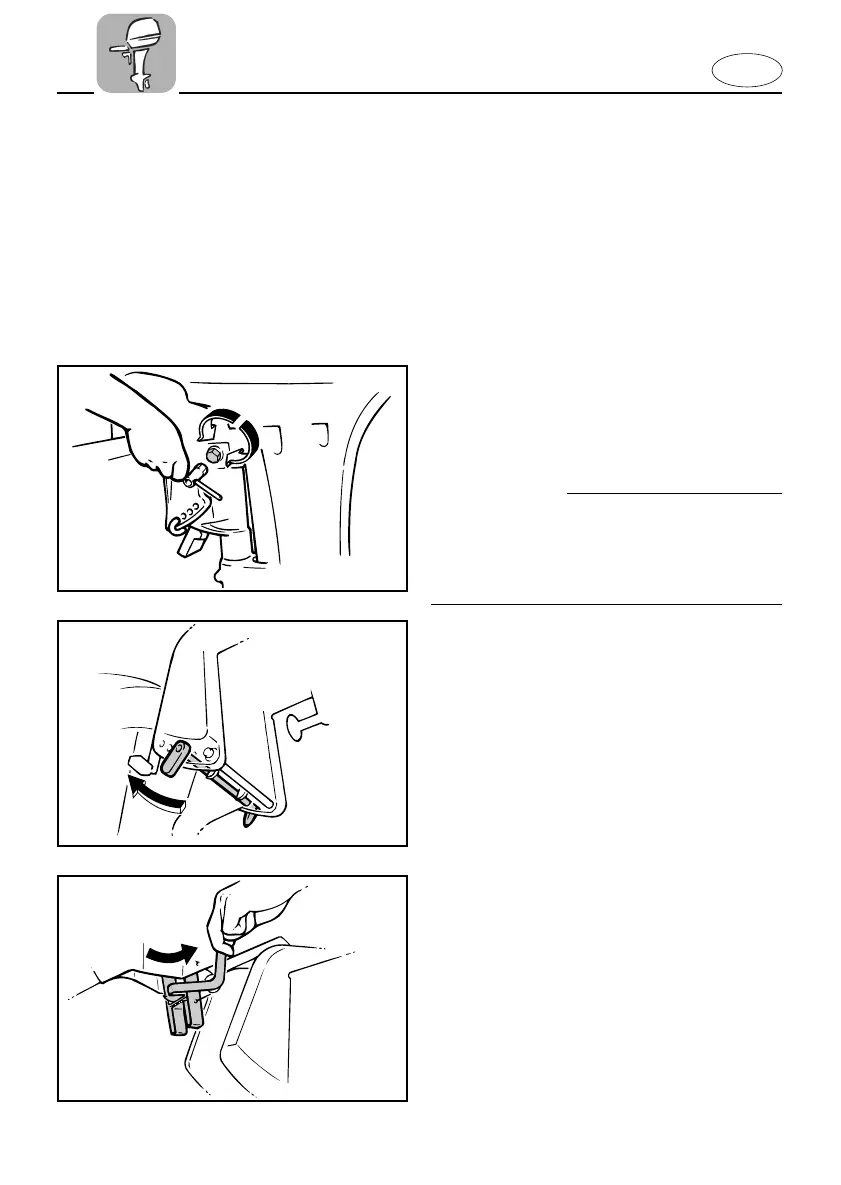

STEERING FRICTION ADJUSTMENT
(for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference.
An adjusting screw/bolt is located on the
swivel bracket.
To increase the resistance:
Turn the adjusting screw/bolt clockwise.
To decrease the resistance:
Turn the adjusting screw/bolt counter-
clockwise.
w
Do not overtighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
EMD06011
TRIM ANGLE ADJUSTING ROD
The outboard motor fully trim-in angle
setting in relation to the transam can be
adjusted by changing the position of the
trim angle adjusting-rod.
EMD08110
SHALLOW WATER LEVER
(If equipped)
Pushing this lever down will tilt the motor
up partially to provide more clearance
when operating in shallow water.
