Yamaha EMX212S User Manual

Controls and Connectors
24
EMX512SC/EMX312SC/EMX212S

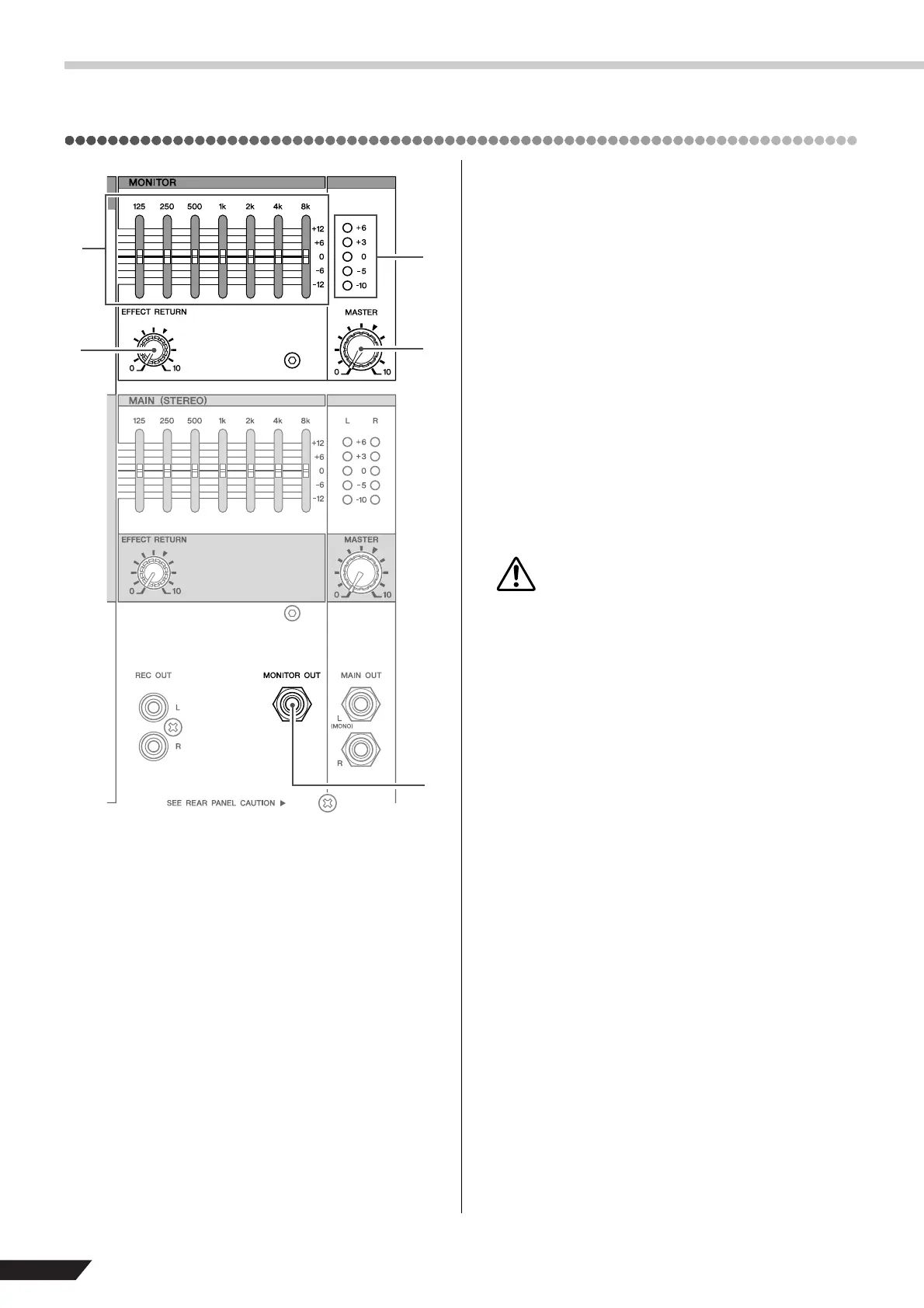

MONITOR Section
K Graphic Equalizer
This 7-band graphic equalizer adjusts the frequency
characteristics of the monitor signal that feeds to the
MONITOR OUT jack O and (if the POWER AMP
switch is down) to the SPEAKERS B jacks V. Each
band can be adjusted by ±12 dB. The base frequencies
for the bands are: 125, 250, 500, 1k, 2k, 4k, and 8k Hz.
L EFFECT RETURN knob
Adjusts the level of the signal sent from the internal
effector to the MONITOR bus.
M MASTER knob
Adjusts the level of the monitor signal send to the MON-
ITOR OUT jack O and (if the POWER AMP switch is
down) to the SPEAKERS B jacks V.
N LEVEL meters
The L and R meters show the level of the signal output
from the MONITOR OUT jack O.
If the POWER AMP switch is down, the MONITOR
OUT signal also passes through the internal power amp
and is then output at SPEAKERS jacks B1 and B2
V.
Keep an eye on the LIMITER lamps
Q to ensure that
the level at the SPEAKERS jacks does not stay too
high.
O MONITOR OUT jack
This unbalanced phone jack outputs the monaural moni-
tor signal. You would typically connect this jack to pow-
ered speakers used for monitoring. The signal sent to this
jack is adjusted by the MONITOR section’s MASTER
knob M and the settings of the MONITOR section’s
graphic equalizer K.
L
M
N
K
O

Yamaha EMX212S Specifications

General

DJ mixer	-
Product color	Black
Frequency range	20 - 20000 Hz
Channels quantity	9 channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.3 %
Monitor out	1
Microphone in	Yes
Power consumption (typical)	350 W

Weight and Dimensions

Depth	264 mm
Width	442.5 mm
Height	284 mm
Weight	8000 g
