Controls and Connectors
26
EMX512SC/EMX312SC/EMX212S

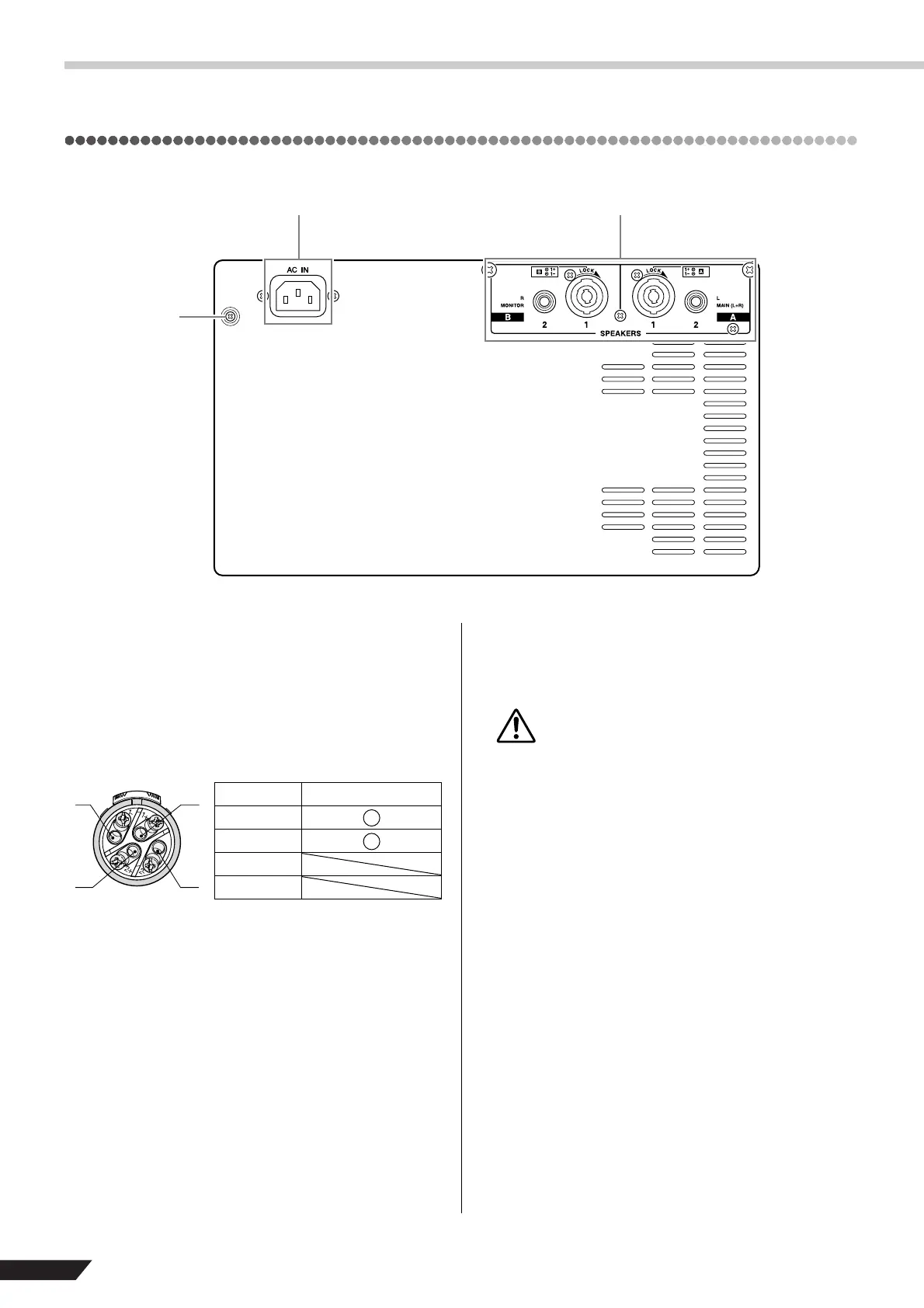

Rear Panel
V SPEAKERS jacks
Use these jacks to connect to speakers. Note that the out-
put directed to these jacks varies according to the setting
of the POWER AMP switch R.
A1, B1: Neutrik NL4 Speakon outputs. Polarities are
as shown below.
A2, B2: Phone output jacks.
W AC IN connector
Connects to the included power cord. Connect one end
of the cord to this connector, and then plug the other end
into a standard power outlet.
Please use the cord that comes with the mixer. Use of a
different cord may pose risk of fire, burns, or equip-
ment damage.
X Ground Screw
For maximum safety be sure to securely connect the
EMX to an earth connection. The supplied power cable
has a three-prong plug that will ground the unit when the
plug is inserted into an appropriately grounded
three-prong type AC mains outlet. If the AC outlet is not
grounded, be sure to ground the unit by using this
ground screw. Correct grounding will effectively elimi-
nate hum noise and interference.
VW
X
Neutrik Plug A1 and B1 Connectors
1+
1–
2+
2–
2+ 2-
1- 1+
+
–
