Components
30
The engine cannot be started if the security
system is in the lock mode. The engine can
be started only in the unlock mode. For more
information, see the installation and owner’s
manual included with the security system.
TIP:
The security system cannot be used with
quad engine applications or Helm Master
®
.
EMU34963
Digital Electronic Control box
The digital electronic control box actuates
the shifter, the throttle and remote electrical
operations. Make sure that the active indica-
tor lights and that the digital electronic con-
trol unit is correctly connected to the
outboard motor.
EMU34974
Digital electronic control-active indi-
cator
The digital electronic control-active indicator
indicates that the digital electronic control
system is in the operating state.
 Lights: Operation of both shift and throttle
possible.
 Blinks (when the gear shift is in neutral
only): Shift not operable. Only throttle op-
eration available.
 Off: Shift and throttle not operable.

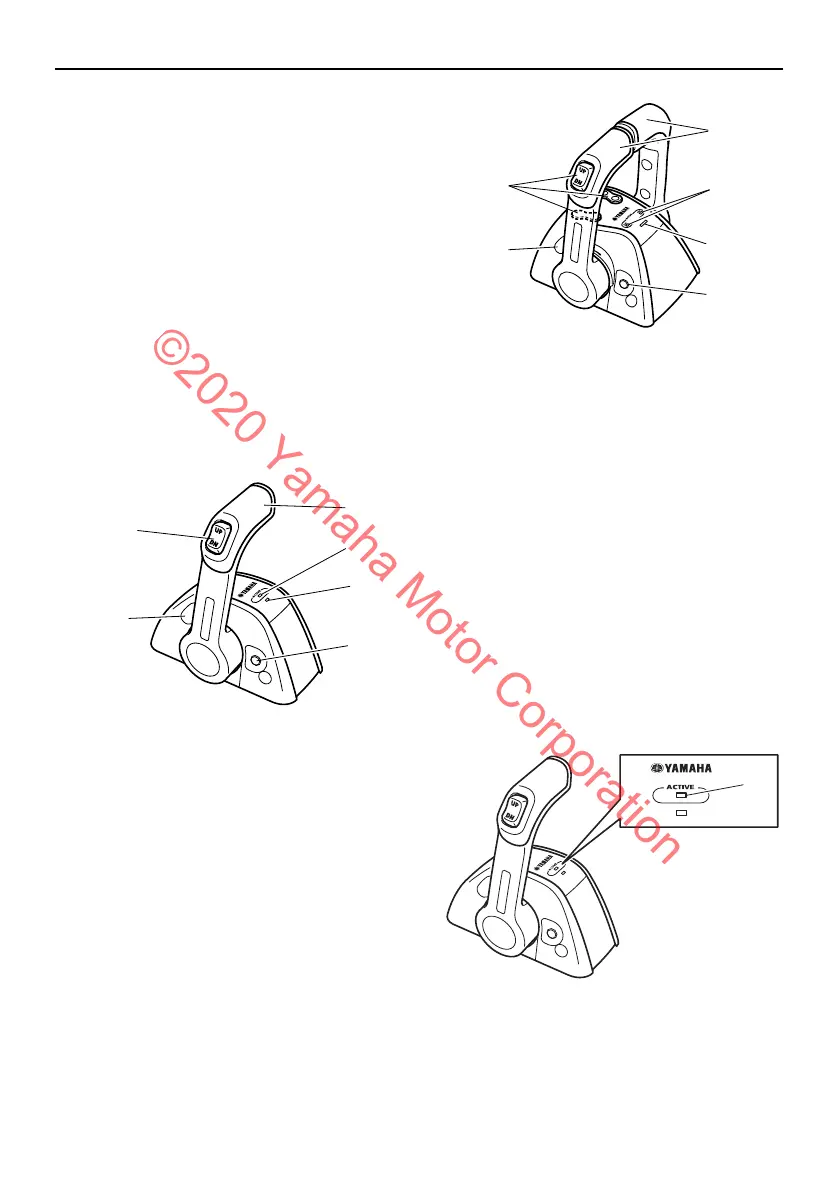

1. Control lever
2. Digital electronic control-active indicator
3. Digital electronic control-alert indicator
4. Free throttle switch
5. Throttle friction adjuster
6. Power trim and tilt switch
ZMU05850
1
6
5
4
2
3
1. Control lever
2. Digital electronic control-active indicator
3. Digital electronic control-alert indicator
4. Free throttle switch
5. Throttle friction adjuster
6. Power trim and tilt switch
1. Digital electronic control-active indicator
ZMU05851
1
6
5
4
3
2
ZMU05888
1
U6DV37E0.book Page 30 Monday, December 10, 2018 4:07 PM
