Instruments and indicators
39
EMU47272

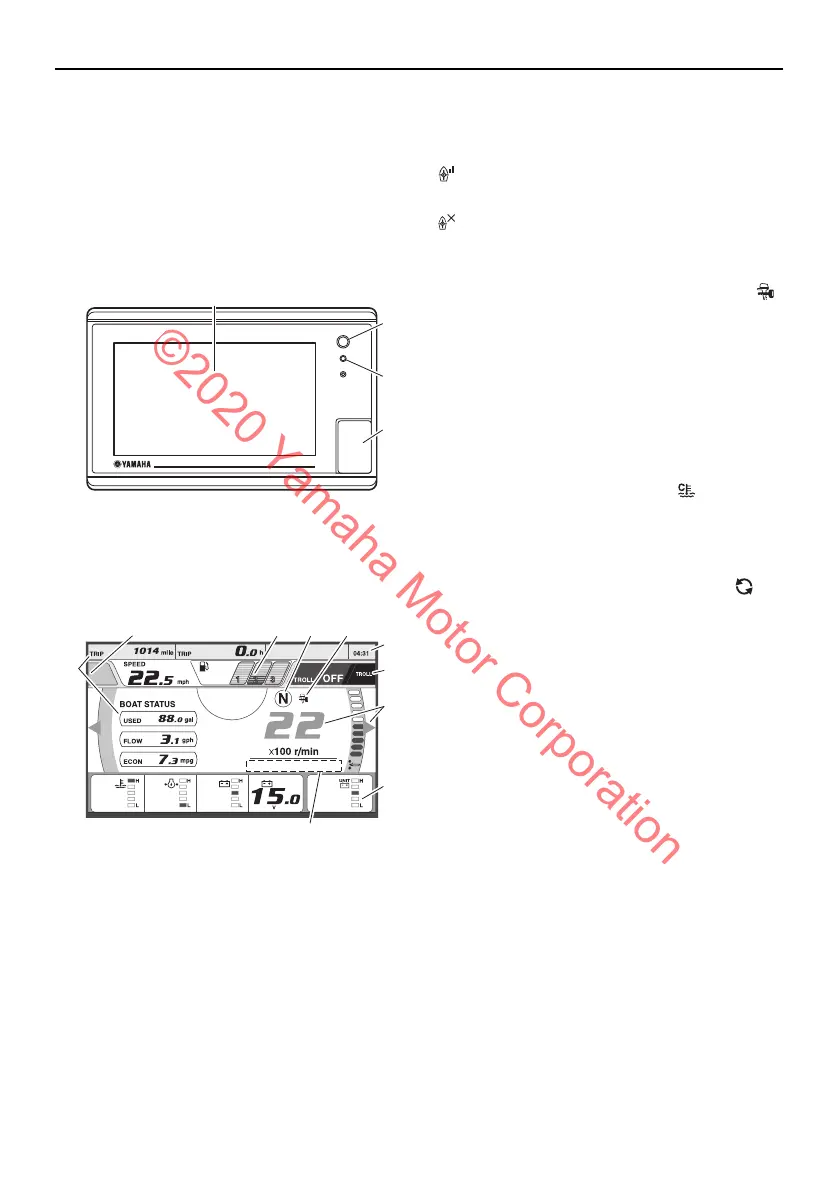

CL7 Display
The CL7 Display shows engine status and
alert information. The display of optional
items can be changed. This manual mainly
covers the alert display. For information on
other settings or changing the display, see
the CL7 owner’s manual.
GPS signal strength icons
The icons shown in the upper-right of the en-
gine screen indicate the GPS signal strength.
“ ” shows GPS satellite signal strength ac-
cording to the number of antenna symbol.
“ ” shows no GPS antenna connection.
Engine condition icons
Orange icons indicate engine conditions.
Yamaha Security System indicator “ ”
(optional)
This indicator appears when the Yamaha
Security System is in lock mode. Make
sure it is off before starting the engine.
This function is for digital electronic control
models only.
Engine warm-up indicator “ ”
This indicator appears while the engine is
being warmed up and goes off when
warming-up is finished.
Engine synchronization indicator “ ”
In multiple engine types, this indicator ap-
pears while the engines are under synchro-
nization control. It goes off when engine
synchronization control is released.
For some quad types, this indicator does not
appear.
Engine alert icons
Red icons indicate engine abnormalities.
When an abnormality occurs, a pop-up win-
dow will be displayed, and the buzzer will
sound.
1. Touchscreen
2. Power key
3. Automatic backlight sensor
4. microSD
®
memory card slot
1. Data fields
2. Current time
3. Set Point functions (Helm Master
®
)
4. Tank level information
5. GPS signal strength
6. Shift position
7. Tachometer and trim angle
8. Engine information
9. Engine condition icon
10.Engine alert icon
U6DV37E0.book Page 39 Monday, December 10, 2018 4:07 PM
©2020 Yamaha Motor Corporation
