5-14
FUEL MANAGEMENT GAUGE

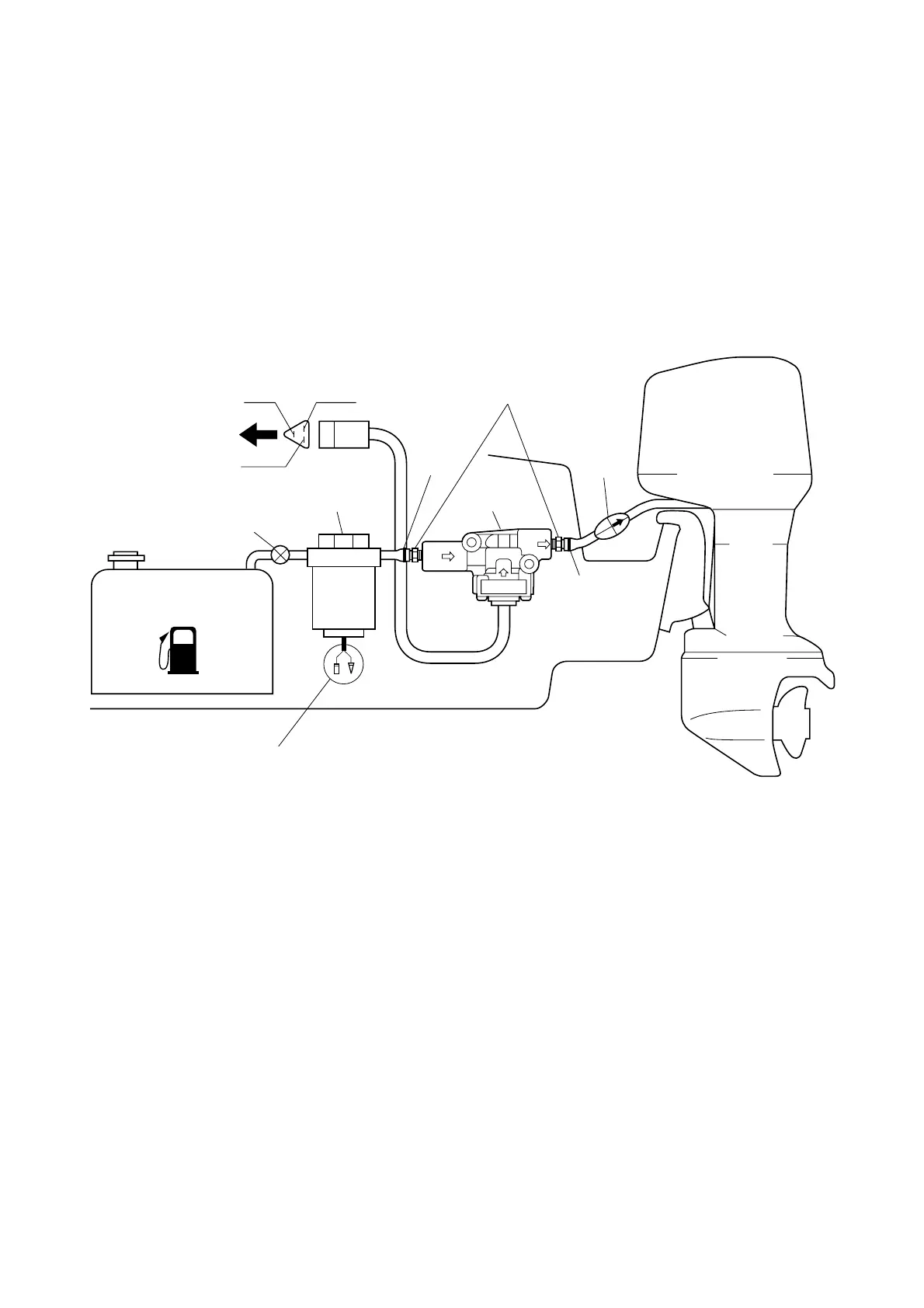

FUEL SENDER INSTALLATION
Follow the notifications below.
1. Locate the sender in a well ventilated area in boat between the engine and a water separator.
2. Place the sender with the “UP” mark facing upward.
3. Use a fuel joint that is fitted to the fuel hose of the outboard motor.
4. Secure all fuel hose ends with a good quality hose clamp.
* For twin-application, refer to Wiring diagram in this chapter.
See the installation manual in the package for further information.
IN
UP
OUT
To extension wire lead
Water separator
(Market obtainable)
B (–)
Pu (S)
Or (+)
Fuel flow
sensor
Fuel valve
IN OUT
Primer
bulb
Clamp
Clamp
Fuel tank
Nipple1/4-18NPT
(Market obtainable)
Inboard area
To extension wire lead if water detection switch is incorporated.
To Next Page
