INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10690
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.

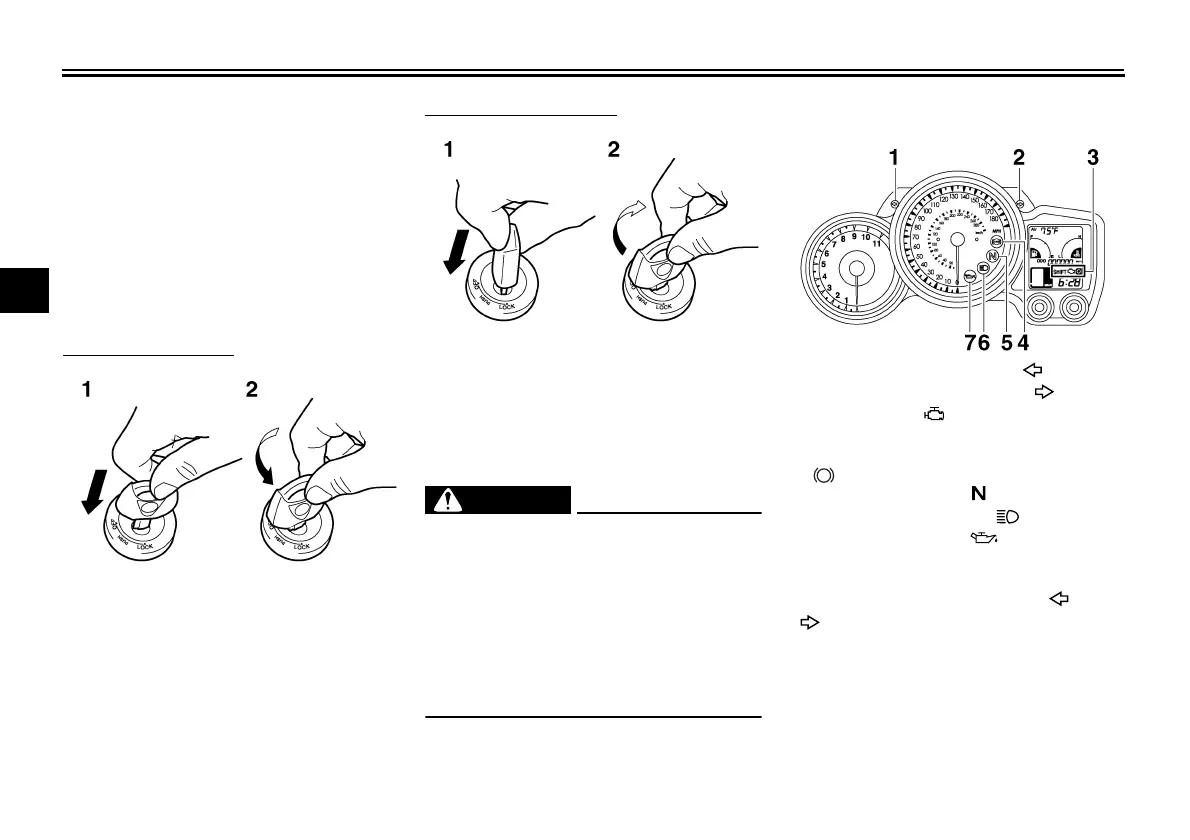

To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
1. Push.
2. Turn.
1. Push.
2. Turn.
1. Left turn signal indicator light “”
2. Right turn signal indicator light “”
3. Engine trouble “”/YCC-S “” indi-
cators and warning light
4. Anti-lock Brake System (ABS) warning light
“”
5. Neutral indicator light “”
6. High beam indicator light “”
7. Oil level warning light “”
SHIFT
ABS
U2D211E0.book Page 2 Friday, January 5, 2007 3:56 PM

Yamaha FJR 2007 Specifications

General

Compression Ratio	10.8:1
Fuel System	Fuel Injection
Final Drive	Shaft
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Engine Type	Liquid-cooled inline 4-cylinder, DOHC, 16 valves
Bore x Stroke	79.0mm x 58.0 mm
Transmission	5-speed
Rear Suspension	Single shock; adjustable preload and rebound damping
Front Brakes	Dual 320mm discs; ABS
Rear Brakes	282mm disc; ABS
Wheelbase	60.8 in
Seat Height	31.7 inches
Fuel Capacity	6.6 gallons
Ignition	TCI (Transistor Controlled Ignition)
Width	29.5 in
Length	87.8 in
