INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
NOTE:
In order to be able to move the vehicle
after it has stopped, if shifting is impos-
sible using the hand shift lever and shift
pedal, proceed as follows:
Place the vehicle on the centerstand,
then while rotating the rear wheel, push
the shift pedal rod and pivot forward un-
til the transmission is in the neutral po-
sition.
The electrical circuit of the indicators
and warning light can be checked by
turning the key to “ON”. If the indicators
and warning light do not come on for a
few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuits.
EAU39500
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-14.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU11601
Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.

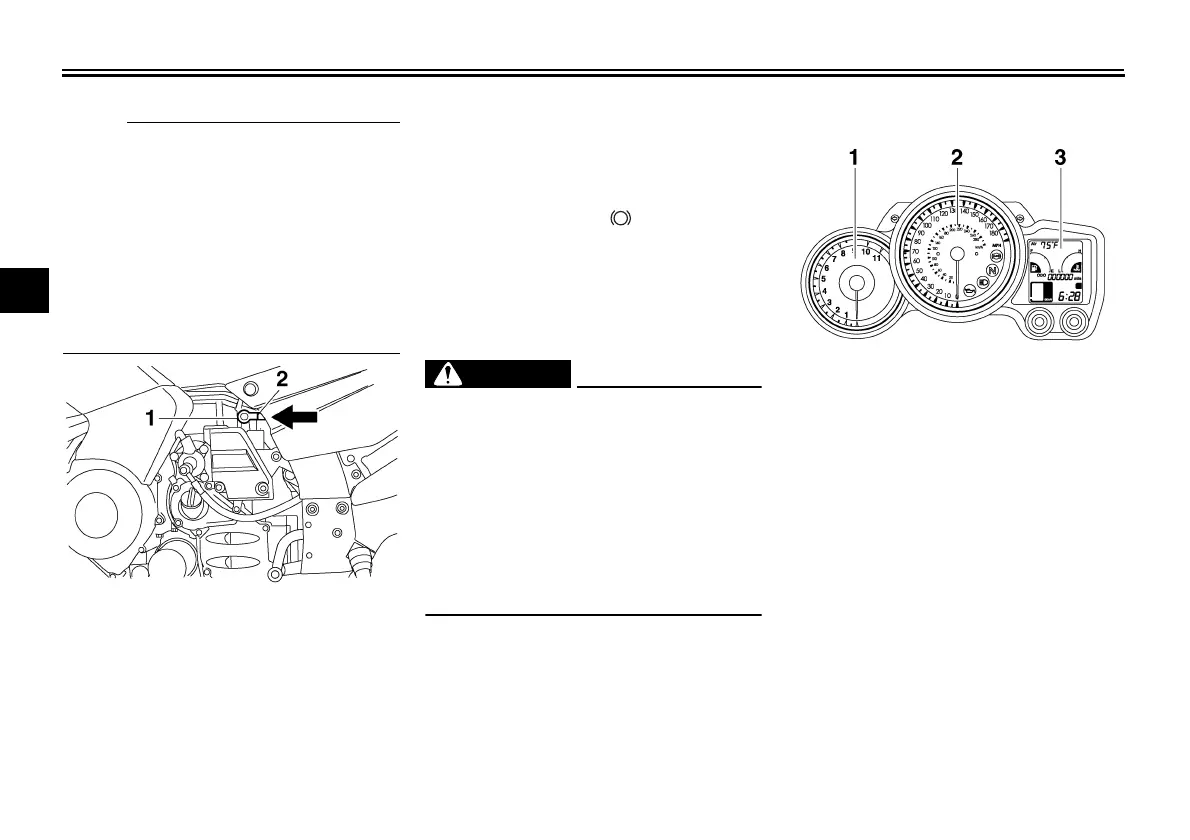

1. Shift pedal rod pivot
2. Shift pedal rod
ABS
1. Tachometer
2. Speedometer
3. Multi-function display
