INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU12347
Handlebar switches
Left
Right
EAU12400
Dimmer switch “ / ”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch “”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).
N
O
TE:
When the key is turned to “OFF”, the
windshield will automatically return to
the lowest position.
EAU12500
Horn switch “”
Press this switch to sound the horn.

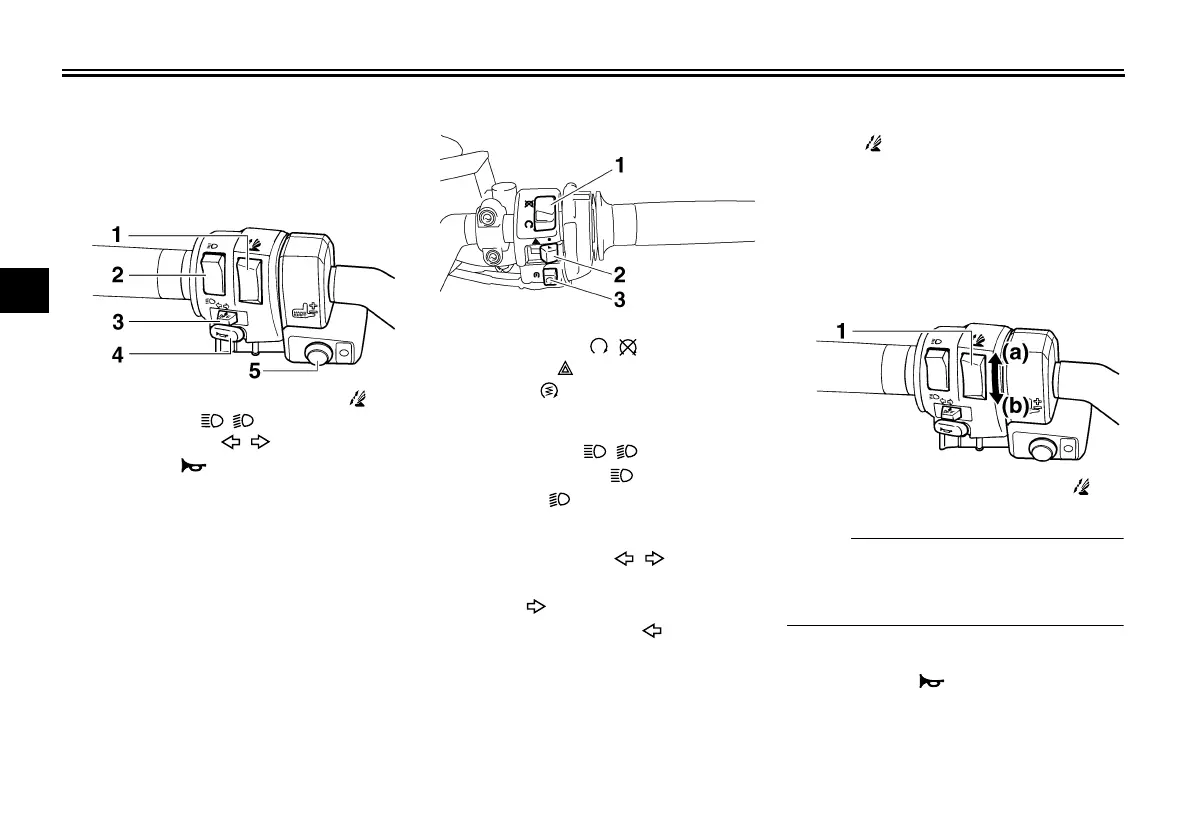

1. Windshield position adjusting switch “”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “”
5. Hand shift control switch
1. Engine stop switch “ / ”
2. Hazard switch “”
3. Start switch “”
1. Windshield position adjusting switch “”
U2D211E0.book Page 10 Friday, January 5, 2007 3:56 PM

Yamaha FJR 2007 Specifications

General

Compression Ratio	10.8:1
Fuel System	Fuel Injection
Final Drive	Shaft
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Engine Type	Liquid-cooled inline 4-cylinder, DOHC, 16 valves
Bore x Stroke	79.0mm x 58.0 mm
Transmission	5-speed
Rear Suspension	Single shock; adjustable preload and rebound damping
Front Brakes	Dual 320mm discs; ABS
Rear Brakes	282mm disc; ABS
Wheelbase	60.8 in
Seat Height	31.7 inches
Fuel Capacity	6.6 gallons
Ignition	TCI (Transistor Controlled Ignition)
Width	29.5 in
Length	87.8 in
