INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU40481
Hand shift lever “”/“”
The hand shift lever must be enabled
by pressing the hand shift control
switch prior to shifting gears.
Pull the “” side of the lever with your
index finger to shift up, and push the
“” side of the lever with your thumb to
shift down.
EAU26822
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU39540
Brake pedal
The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.

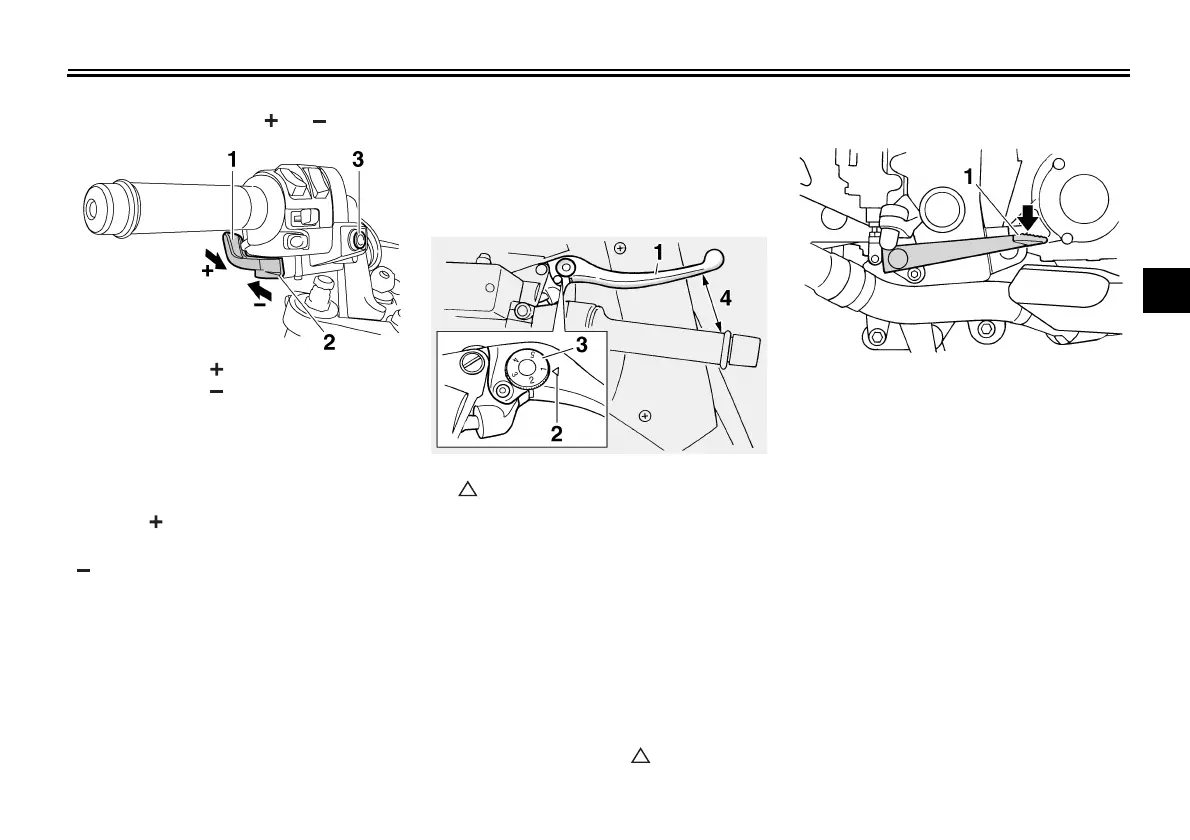

1. Hand shift lever “”
2. Hand shift lever “”
3. Hand shift control switch
1. Brake lever
2. “” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
