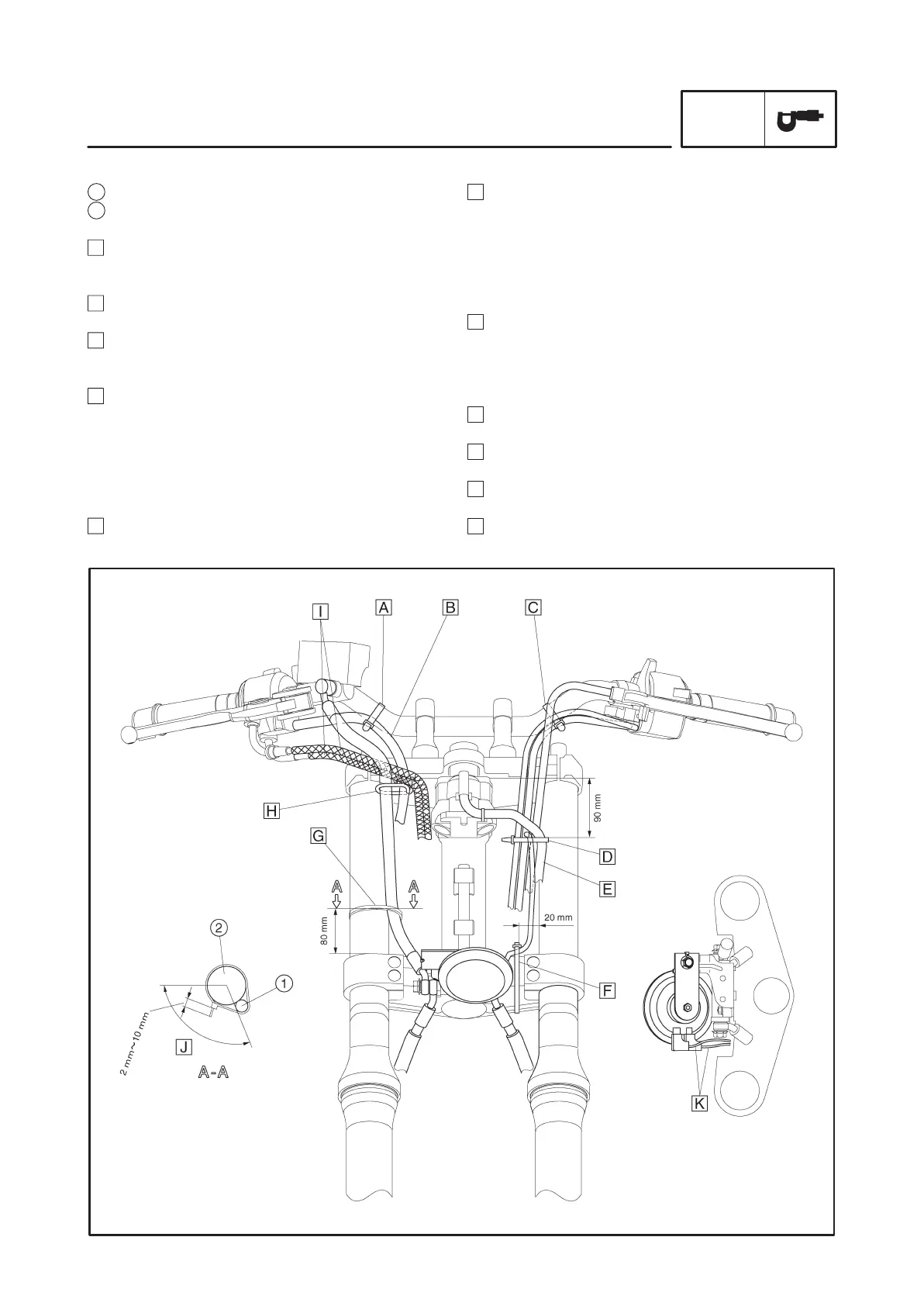

CABLE ROUTING
SPEC
1 Brake hose
2 Front fork
A Fasten the right handlebar switch lead to the han-
dlebar with a plastic band. Point the end of clamp to
the downward.
B Route the right handlebar switch lead by the right
side of the wire guide behind the throttle cable.
C Fasten the left handlebar switch lead to the handle-
bar with a plastic band. Point the end of clamp to the
downward.
D Fasten the left handlebar switch lead, main switch
lead, clutch cable and starter cable with a plastic
band. Clamp beneath the horn lead branching posi-
tion. Do not fasten the horn lead. Direct the end of
clamp to the rear inner side of vehicle.
Clamp it at 90 mm below the bottom end of the up-
per bracket.
E Route the main switch lead front and left side the
another leads.
F Pass the horn leads from the outside of vehicle to
the inner side and clamp it to the under-bracket.
Point the tip of clamp to the front of vehicle. There
should be no slack with the lead between horn and
clamp.
Clamp it at the position of 20 mm from the inner side
of the inner tube.
G Clamp the brake hose to the inner tube. Cut the sur-
plus part of clamp tip leaving 2 to 10 mm and point
the tip of clamp to the front of vehicle.
Clamp it at 80 mm from the top end of the under
bracket.
H Route the brake hose through the brake hose
guide.
I Route the throttle cable 1 and 2 behind the brake
hose and pass it by the left side of wire guide.
J Position the remained part of clamp tip within this
range.
K Direct the horn lead coupler to the rear.
