–20–

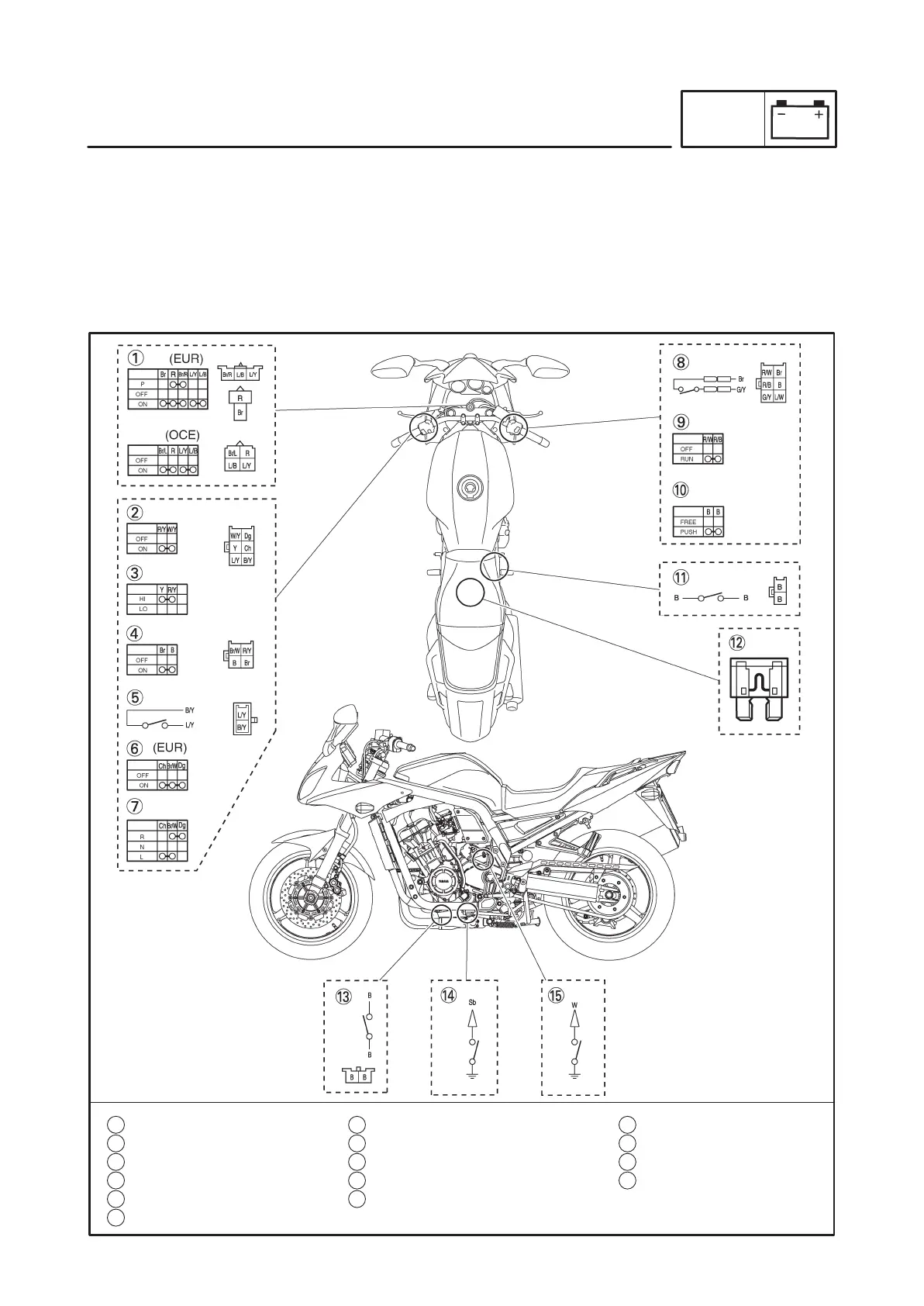

1 Main switch
2 Pass switch
3 Dimmer switch
4 Horn switch
5 Clutch switch
6 Hazard switch
7 Turn signal switch
8 Front brake light switch
9 Engine stop switch
10 Start switch
11 Rear brake light switch
12 Fuse
13 Side stand switch
14 Neutral switch
15 Oil level switch
CHECKING THE SWITCHES
ELEC
EAS00731
ELECTRICAL
CHECKING THE SWITCHES
Check each switch for damage or wear, proper connections, and also for continuity between the termi-
nals. Refer to “CHECKING SWITCH CONTINUITY”. (Manual No.: 5LV1-AE1)
Damage/wear ! Repair or replace the switch.
Improperly connected ! Properly connect.
Incorrect continuity reading ! Replace the switch.

Yamaha FZS1000 2003 Specifications

General

Compression Ratio	11.4:1
Transmission	6-speed
Final Drive	Chain
Frame	Aluminum Deltabox
Front Tire	120/70-ZR17
Width	750 mm
Maximum Power	143 hp @ 10, 000 rpm
Maximum Torque	106 Nm @ 7, 500 rpm
Ignition	Digital
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Rear Brakes	245mm disc, 1-piston caliper
Rear Tire	180/55 ZR17
Length	2, 140 mm
Height	1, 210 mm
Seat Height	820 mm
Wheelbase	1, 450 mm
Fuel Capacity	21 liters
Dry Weight	208 kg
Engine Type	998cc, liquid-cooled, 4-stroke, DOHC, 20 valves, inline-4
Fuel System	Fuel Injection
