LIGHTING SYSTEM
ELEC
Headlight
Positive tester probe !
black/yellow or black/green
Negative tester probe ! black
High beam indicator light
Positive tester probe !
black/yellow
Negative tester probe ! black
YES NO
Replace the headlight
bulb, socket or both.
EAS00789
2. The meter light fails to come on.
YES
NO
1. Meter light bulb and socket
S Check the meter light bulb and socket for
continuity.
Replace the meter
light bulb, socket of
both.
EAS00788

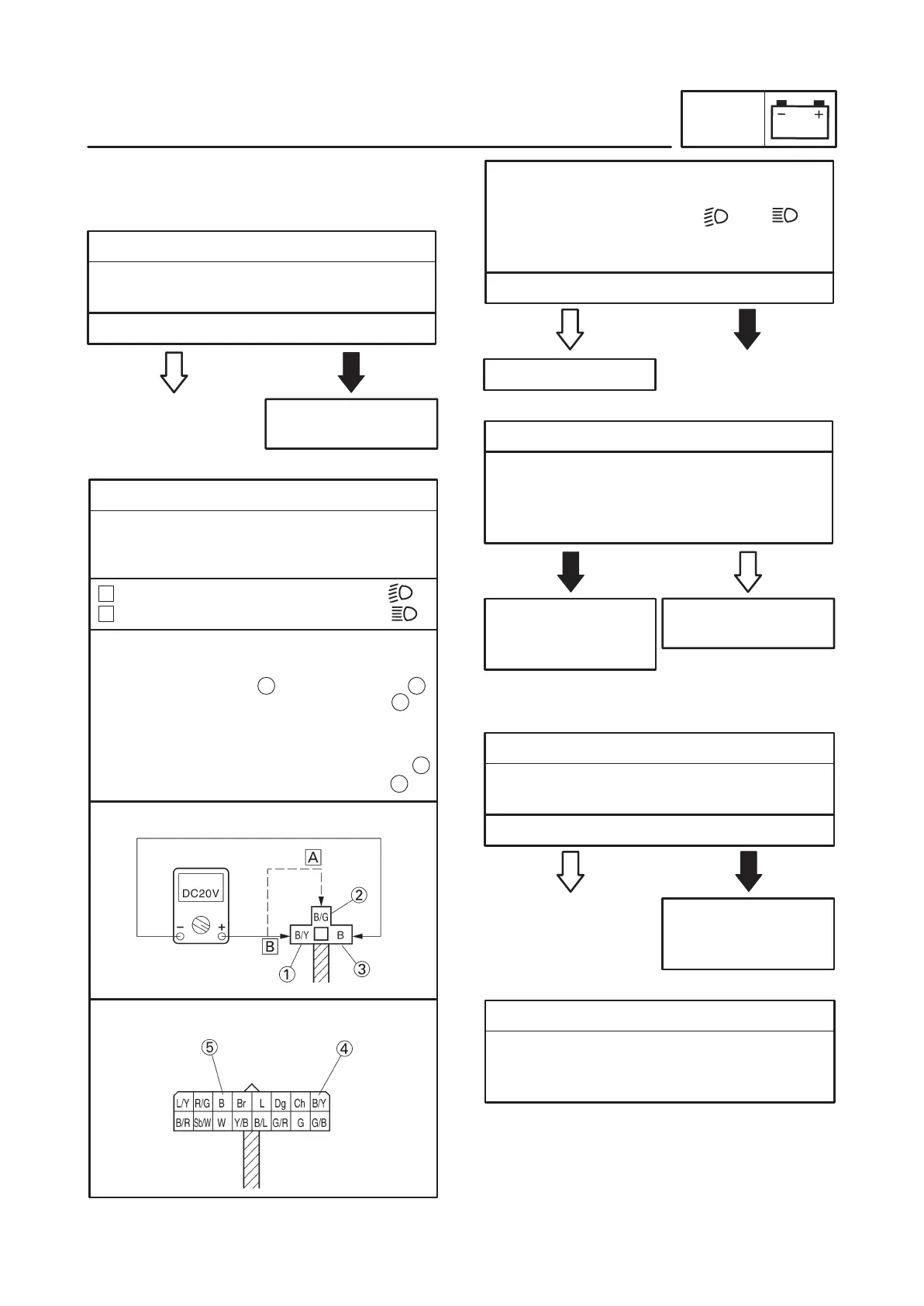

CHECKING THE LIGHTING SYSTEM
1. The headlight and the high beam indicator
light fail to come on.
1. Headlight bulb and socket
S Check the headlight bulb and socket for
continuity.
1 2
3
4
5
2. Voltage
S Connect the pocket tester (DC 20 V) to the
headlight and high beam indicator light cou-
plers as shown.
A
B
When the dimmer switch is set to “ ”.
When the dimmer switch is seto to “ ”.
S Set the main switch to “ON”.
S Start the engine.
S Set the dimmer switch to “ ” or “ ”.
S Measure the voltage (12 V) (wire harness
side).
YES NO
This circuit is OK.
Headlight coupler (wire harness side)
Meter light coupler (wire harness side)
S Are the headlight bulb and socket OK?
S Is the voltage within specification?
S Are the meter light bulb and socket OK?
NO YES
Replace the ignitor
unit.
3. Wiring
S Check the entire lighting system’s wiring.
Refer to “CIRCUIT DIAGRAM”.
S Is the lighting system’s wiring properly con-
nected and without defects?
Properly connect or
repair the lighting
system’s wiring.
2. Voltage
S Connect the pocket tester (DC 20 V) to the
meter light coupler (wire harness side) as
shown.
To Next Page
