Yamaha FZS1000 2003 User Manual

1 Main switch
2 Rectifier/regulator
3 AC magneto
4 Fuse (back up)
5 Battery
6 Starter relay
7 Fuse (main)
8 Starter motor
9 Starting circuit cutoff relay
10 Sidestand switch
11 Fuel pump
12 EXUP servo motor
13 T.P.S.
14 Emargency stop switch
15 Igniter
16 Ignition coil
17 Spark plug
18 Pickup coil
19 Neutral switch
20 Speed sensor
21 Thermo unit
22 Meter assembly
23 Fuel level warning light
24 Oil level warning light
25 Neutral indicator light
26 Tacho meter
27 Combination meter
28 Water temp warning light
29 Fuel gauge
30 Speedometer
31 Hi-beam indicator light
32 Turn signal indicator light (left)
33 Turn signal indicator light (right)
34 Meter light
35 Oil level gauge
36 Fuel sender
37 Turn signal relay
38 Handlebar switch (right)
39 Front brake light switch
40 Engine stop switch
41 Start switch
42 Horn
43 Handlebar switch (left)
44 Pass switch
45 Dimmer switch
46 Horn switch
47 Clutch switch
48 Turn signal switch
49 Front turn signal light (left)
50 Front turn signal light (right)
51 Rear turn signal light (left)
52 Rear turn signal light (right)
53 Headlight
54 Tail/brake light
55 Fuse (ignition)
56 Fuse (turn signal)
57 Fuse (headlight)
58 Fuse (fan)
59 Fan motor relay
60 Fan motor
61 Rear brake light switch
62 Head light relay (dimmer)
B Black. . . . . . .
Br Brown. . . . . .
Ch Chocolate. . . . .
Dg Dark green. . . . .
G Green. . . . . .
Gy Gray. . . . .
L Blue. . . . . . .
Lg Light green. . . . . .
O Orange. . . . . .
P Pink. . . . . . .
R Red. . . . . . .
Sb Sky blue. . . . . .
W White. . . . . .
Y Yellow. . . . . . .
B/G Black/Green. . . .
B/L Black/Blue. . . . .
B/R Black/Red. . . .
B/W Black/White. . . .
B/Y Black/Yellow. . . .
Br/ B Brown/Black. . . .
Br/ L Brown/Blue. . . .
Br/ R Brown/Red. . . .
Br/ W Brown/White. . .
G/ B Green/ Black. . . .
G/ R Green/ Red. . . .
G/ W Green/ White. . . .
G/ Y Green/ Yellow. . . .
L/ B Blue/Black. . . . .
L/ R Blue/Red. . . .
L/ W Blue/White. . . .
L/ Y Blue/Yellow. . . . .
O/ R Orange/ Red. . . .
R/ B Red/ Black. . . .
R/ G Red/Green. . . .
R/ W Red/ White. . . .
R/ Y Red/ Yellow. . . .
Sb/W Sky blue/White. . .
W/ R White/Red. . . .
W/ Y White/Yellow. . . .
Y/B Yellow/ Black. . . .
Y/G Yellow/ Green. . . .

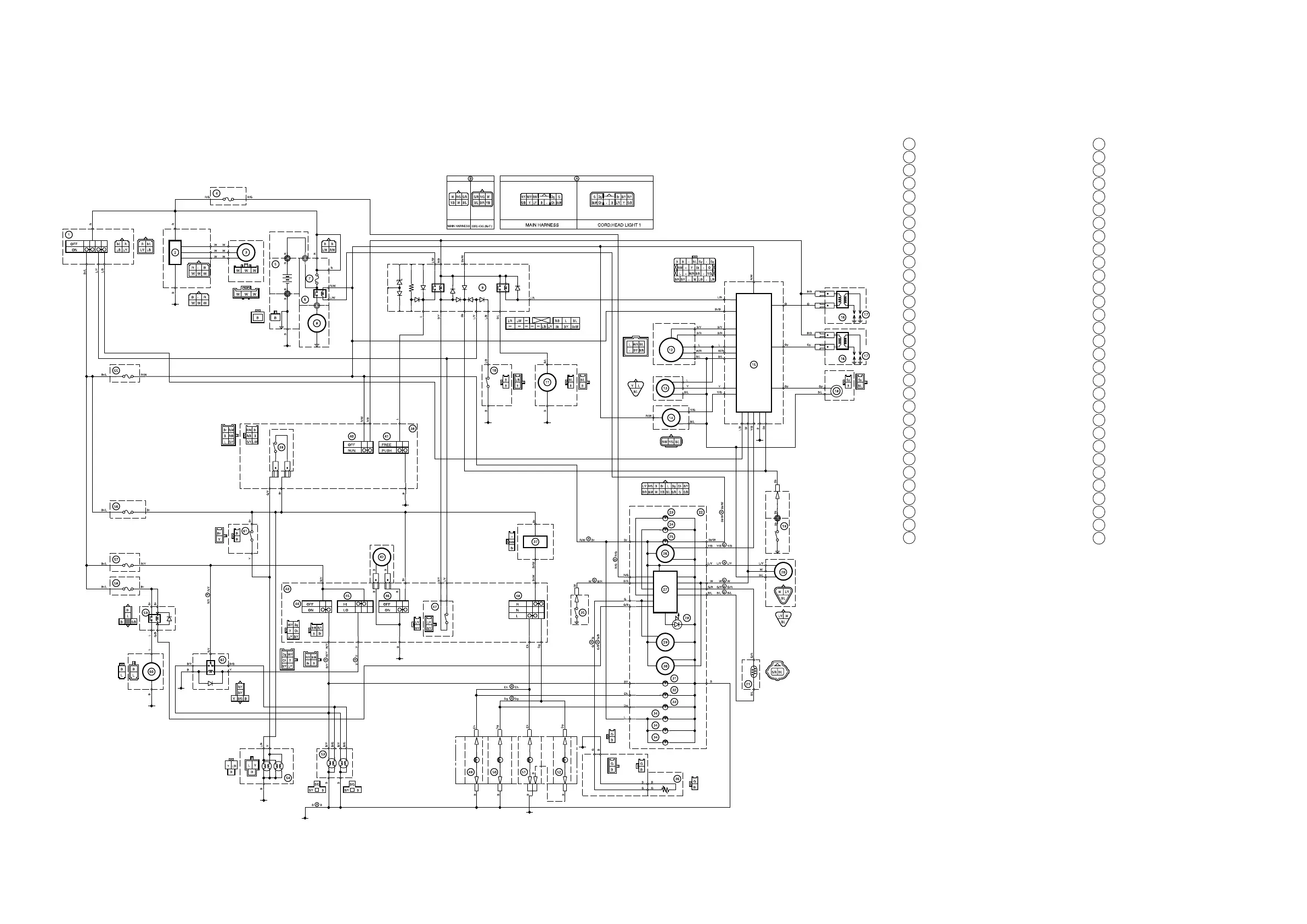

FZS1000R 2003 WIRING DIAGRAM (OCE)

Yamaha FZS1000 2003 Specifications

General

Compression Ratio	11.4:1
Transmission	6-speed
Final Drive	Chain
Frame	Aluminum Deltabox
Front Tire	120/70-ZR17
Width	750 mm
Maximum Power	143 hp @ 10, 000 rpm
Maximum Torque	106 Nm @ 7, 500 rpm
Ignition	Digital
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Rear Brakes	245mm disc, 1-piston caliper
Rear Tire	180/55 ZR17
Length	2, 140 mm
Height	1, 210 mm
Seat Height	820 mm
Wheelbase	1, 450 mm
Fuel Capacity	21 liters
Dry Weight	208 kg
Engine Type	998cc, liquid-cooled, 4-stroke, DOHC, 20 valves, inline-4
Fuel System	Fuel Injection
