RX-V357/HTR-5830
17
RX-V357/HTR-5830
No DIAG menu sub-menu
1 DSP THROUGH 1. ANALOG BYPASS
2. YSS 0dB
3. YSS Presence 0dB
4. YSS FULL BIT
5. YSS FULL BIT P
2 RAM THROUGH RAM 0dB
3 DOLBY PRO LOGIC 1. PRO LOGIC I
2. PRO LOGIC II
3. Neo:6 (Not applied to these models)
4 SPEAKERS SET 1. FRONT: SMALL 0dB
2. CENTER: NONE
3. LFE/BASS: FRONT
4. PRESENCE MIX: 5ch
5. SURROUND B power (Not applied to these models)
6. Tone Control Flat
7. Tone Control +10dB
8. Tone Control -10dB
5 HP Test 1. FRONT 12 dB
2. FRONT 15 dB
6 OTHER INPUT EXTERNAL DECODER
7 DISPLAY CHECK 1. VFD CHECK (Initial display)
2. VFD DISP OFF (All segments OFF)
3. VFD DISP ALL (All segments ON 100%)
4. VFD DIMMER (All segments ON 50%)
5. CHECKED PATTERN (ON in lattice)
8 MANUAL TEST 1. TEST ALL
2. TEST FRONT L
3. TEST CENTER
4. TEST FRONT R
5. TEST SURROUND R
6. TEST SURROUND C (Not applied to these models)
7. TEST SURROUND L
8. TEST LFE
9 FACTORY PRESET 1. PRESET INHIBITED (memory initialization inhibited)
2. PRESET RESERVED (memory initialized)
10 AD DATA CHECK 1. DC/PS (protection indication)
/FAN TEST 2. THM/Fan
3. REC-OUT (Not applied to these models)
4. IMP SW/POWER LIMIT
5. K0/K1 (panel key)
6. FAN DRIVE TEST: HIGH (Not applied to these models)
7. FAN DRIVE TEST: MID (Not applied to these models)
8. FAN DRIVE TEST: LOW (Not applied to these models)

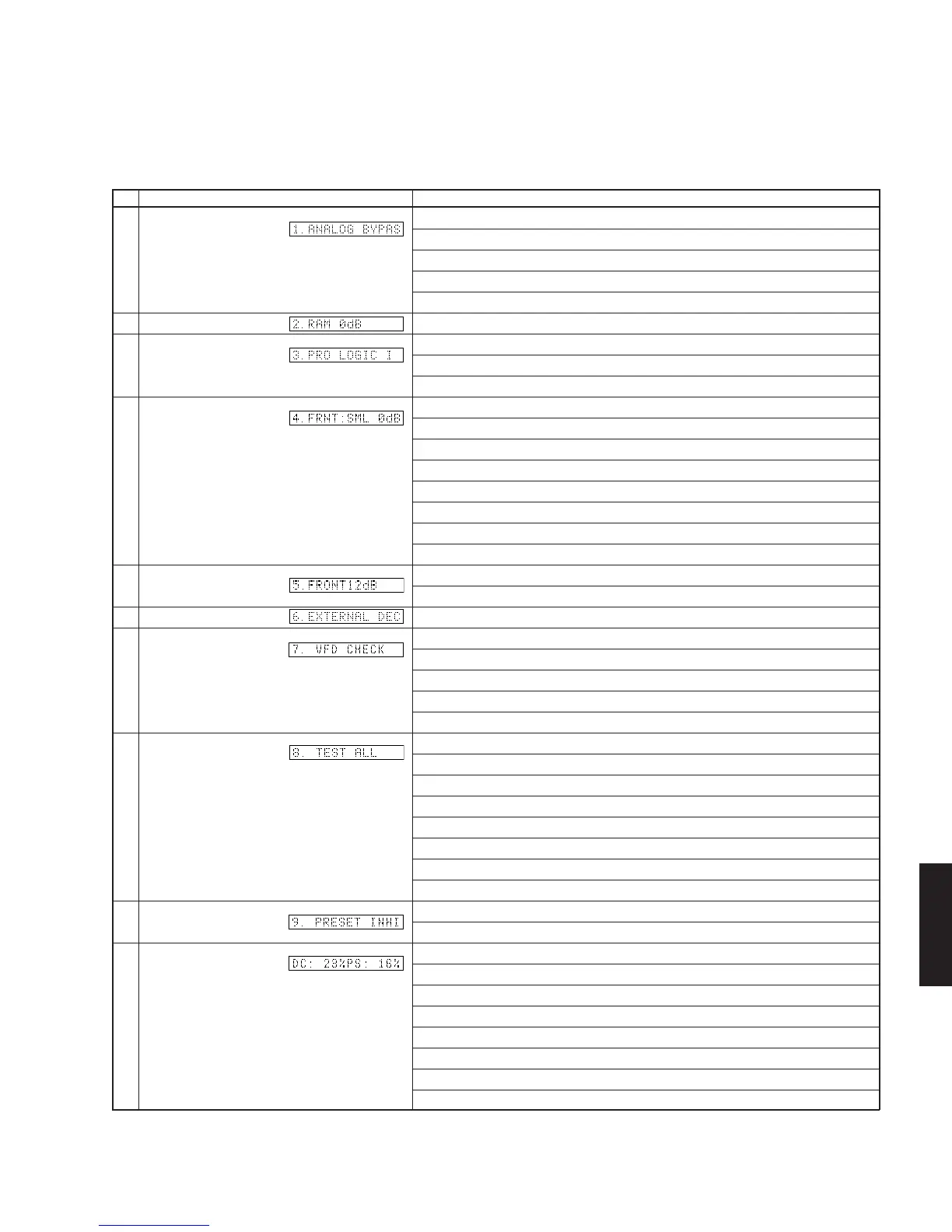

■ SELF DIAGNOSIS FUNCTION (DIAG)
There are 15 DIAG menu items, each of which has sub-menu items.
Listed in the table below are menu items and sub-menu items.
Note that not all menu items listed will apply to the models covered in this service manual.
