RX-V357/HTR-5830

0.1mV ~ 10.0mV

(DC)

R157 (FRONT Lch)

R158 (FRONT Rch)

R148 (CENTER)

R156 (SURROUND Lch)

R159 (SURROUND Rch)

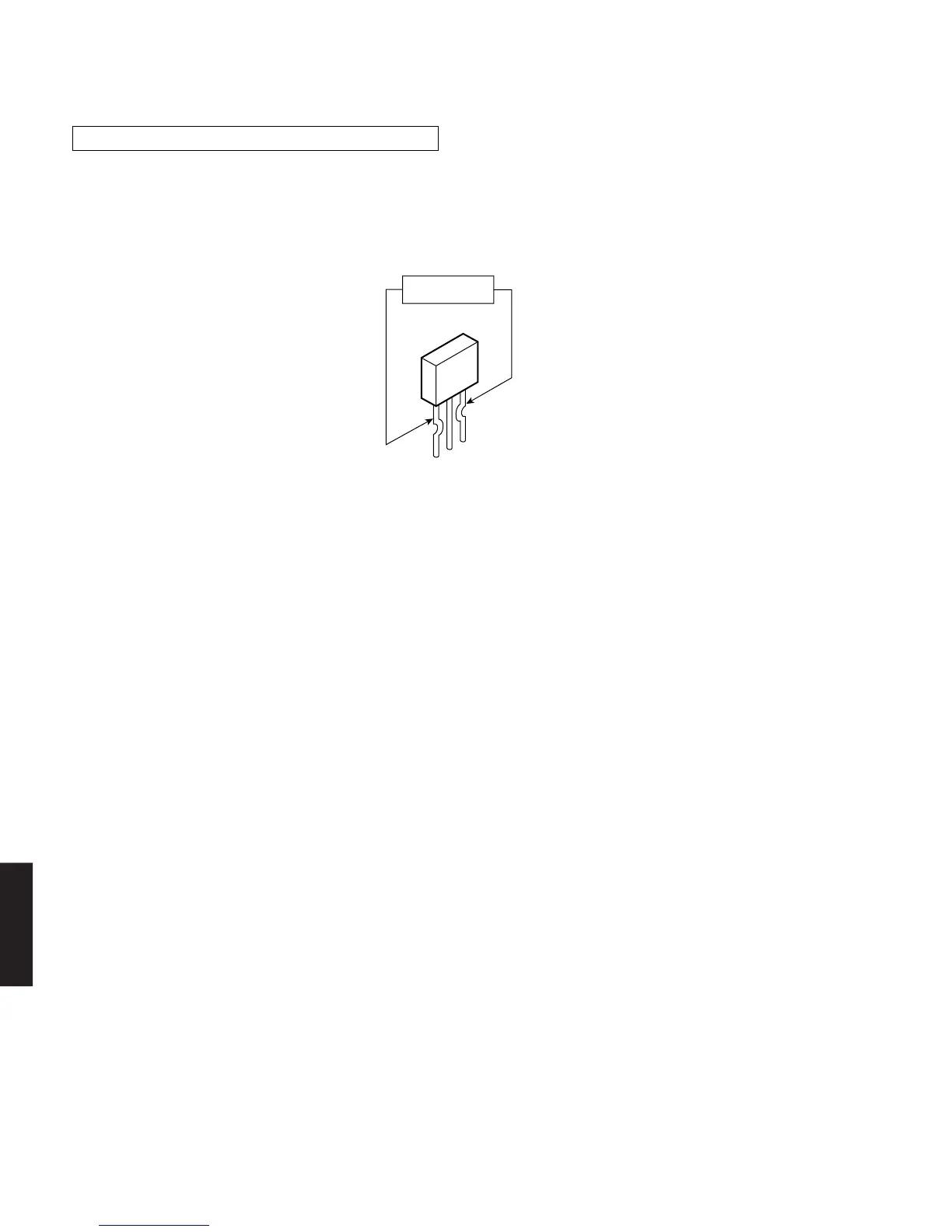

■ CONFIRMATION OF IDLING CURRENT

Confirmation of Idling Current of MAIN (1) P. C. B.

• Right after the power is turned on, confirm that the

voltage across the terminals of R157 (FRONT Lch),

R158 (FRONT Rch), R148 (CENTER), R156

(SURROUND Lch), R159 (SURROUND Rch) are

between 0.1mV and 10.0mV.
